Don-Jo 504AD-CW Wrap Around Plate 5-1/8" x 16-3/8" for Schlage AD Series Mortise Locksets, 2-3/4" Backset, 1-3/4" Door

Don-Jo 504AD-CW Wrap Around Plate 5-1/8" x 16-3/8" for Schlage AD Series Mortise Locksets, 2-3/4" Backset, 1-3/4" Door

(No reviews yet) Write a Review

Model: 504AD-S-CW
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$67.66
$60.97
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Don-Jo 504AD-CW Wrap Around Plate 5-1/8" x 16-3/8" for Schlage AD Series Mortise Locksets, 2-3/4" Backset, 1-3/4" Door

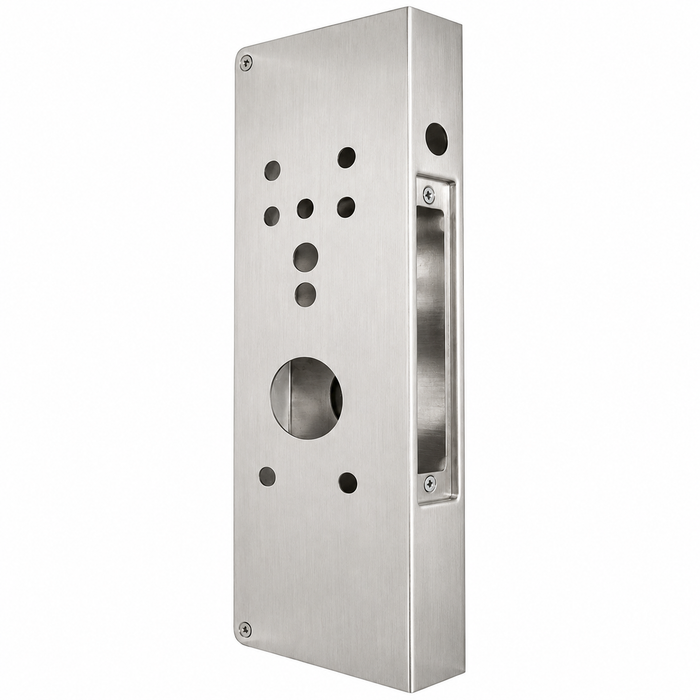

The Don-Jo 504AD-CW is a commercial-grade wrap around plate engineered specifically to work with Schlage AD Series mortise locksets, providing a clean, professional finish on doors requiring reinforced lock area coverage. Measuring 5-1/8" wide by 16-3/8" tall and designed for 1-3/4" door thickness with a 2-3/4" backset, this wrap around accommodates electronic lock hole preparation and features a latch prep indent for precise, secure installation. Constructed from 22-gauge (.032) steel, it delivers reliable durability suited to demanding commercial environments. Available in multiple finishes including 10B (613), PB (605), and S (630) to coordinate with existing door hardware.

Key Features

  • Precise Dimensions: Measures 5-1/8" wide by 16-3/8" tall, purpose-built for 1-3/4" door thickness applications with a 2-3/4" backset for accurate, code-compliant installation.
  • Schlage AD Series Compatibility: Designed specifically to work with Schlage AD Series mortise locksets, ensuring a seamless fit and professional appearance on compatible door preparations.
  • Electronic Lock Hole Preparation: Includes an electronic lock hole cutout, making this wrap around ready for electrified mortise lockset configurations without additional field modification.
  • Latch Prep Indent: Features a latch prep indent for precise alignment and a clean, finished look around the latch area of the door.
  • Heavy-Gauge Steel Construction: Fabricated from 22-gauge (.032) steel for robust, long-lasting performance in high-traffic commercial door applications.
  • Multiple Finish Options: Available in 10B (613), PB (605), and S (630) finishes to match or complement a wide range of commercial door hardware selections.
  • Commercial-Grade Application: Rated and designed for commercial use, providing the durability and aesthetic consistency required in professional building environments.

Technical Specifications

  • Subcategory: Wrap Arounds
  • Product Group: Door Trim and Accessories
  • Product Subgroup: Filler Plates, Lock Adapters and Wrap Arounds
  • Product Type: Wrap Arounds
  • Commercial/Residential: Commercial
  • Product Category: Door Trim and Accessories
  • Department: Door Hardware

Typical Applications

  • Commercial Office Buildings
  • Educational Facilities
  • Healthcare Institutions
  • Retail Establishments
  • Government and Municipal Buildings
  • Multi-Tenant Residential Properties
  • Industrial and Warehouse Facilities

Why Don-Jo 504AD-CW?

Don-Jo wrap around plates are built to commercial standards, with 22-gauge (.032) steel construction that stands up to the rigors of high-traffic door applications. The 504AD-CW is purpose-engineered for Schlage AD Series mortise locksets, combining precise dimensional compatibility — 5-1/8" x 16-3/8", 2-3/4" backset, 1-3/4" door — with electronic lock hole preparation and a latch prep indent for a professional, finished installation every time.

Manufacturer Resources

DON-JO Wrap-Around Plates

Product Specs

Subcategory:
Wrap Arounds
Product Group:
Door Trim and Accessories
Product Subgroup:
Filler Plates, Lock Adapters and Wrap Arounds
Product Type:
Wrap Arounds
Commercial/Residential:
Commercial
Door Width:
1-3/4"
Product Model:
504AD CW
Product Category:
Door Trim and Accessories
Backset (Distance):
2-3/4"
Department:
Door Hardware

Don-Jo 504AD-S-CW – Frequently Asked Questions

1) Will the Don-Jo 504AD-CW wrap around plate fit a Schlage AD Series mortise lock on a 1-3/4 inch door?
That is exactly the opening it is cut for. The 504AD-CW is made for Schlage AD Series mortise locksets on a 1-3/4 inch door with a 2-3/4 inch backset, and it carries the electronic lock hole prep already cut, so an electrified AD mortise goes straight through with no field modification. Plate size is 5-1/8 x 16-3/8 inches. If your AD mortise is set on a 2-3/8 inch backset, the lock holes will not line up.
2) Do I need to drill the 504AD-CW for a Schlage AD electronic mortise lock?
No drilling for the lock. The electronic lock hole prep is already punched in the 504AD-CW, so an electrified Schlage AD Series mortise lockset mounts through it as-is. The latch prep indent is formed in as well. That is the difference between this and a plain wrap around, which would need the electronic prep cut in the field.
3) Can I use the 504AD-CW on a door with a cylindrical lockset instead of a mortise lock?
No. The 504AD-CW is punched for a Schlage AD Series mortise lockset, so the cutouts follow a mortise pocket and its trim, not a 2-1/8 inch cylindrical bore. On a knob or lever cylindrical lock you want a wrap around punched for a cylindrical prep at your bore size and backset. Match the wrap to the lock type first, then the 2-3/4 or 2-3/8 inch backset, then door thickness.
4) What does a wrap around plate actually do on a door with a mortise lock?
It wraps the edge of the door and covers both faces around the lock area, hiding damage, old prep, and worn or chewed-up material around a mortise pocket. On a metal or wood door where the lock area has been through a few hardware changes, the 504AD-CW gives you one clean 5-1/8 x 16-3/8 inch face instead of patched holes, and the latch prep indent keeps the plate seated flat around the latch so the door still closes correctly. It is trim and reinforcement, not a lock, so it does not change how the door locks.
5) What finishes does the Don-Jo 504AD-CW wrap around come in, and which matches my existing hardware?
Three: 10B oil rubbed bronze, PB polished brass, and S satin stainless. In BHMA numbers those read 613, 605 and 630. For a building already standardized on satin stainless or satin chrome commercial trim, S (630) is the one that blends; 10B suits dark bronze lever sets, and PB matches older polished brass openings. Ordering the same finish across a run of doors is the whole point of a wrap around, so pick off the lock trim already on the doors, not off the door itself.
6) What is the exact Don-Jo part number and size for the Schlage AD mortise wrap around?
Don-Jo model 504AD-CW, 5-1/8 x 16-3/8 inches, 22 gauge steel, for a 2-3/4 inch backset on a 1-3/4 inch door. The CW suffix goes with the AD Series mortise prep and the electronic lock hole. Finish is the only thing you specify on top of the model: 10B, PB or S.
7) Is 22-gauge steel heavy enough for a wrap around on a high traffic commercial door?
22 gauge (.032) steel is the standard commercial weight for wrap around trim, and the 504AD-CW is built for commercial use. It is cover and reinforcement over the lock area, not a security plate or a strike, so it takes the abuse of carts, keys and hands on an office, school or healthcare corridor door. If the door itself is torn out around the mortise pocket, the wrap covers it, but structural repair of the door stile is a separate job.
8) How many wrap around plates do I need per door?
One 504AD-CW covers one door. It wraps the lock edge and both faces at the lock area, so a single plate handles that opening. Pair of doors, two active locks, two plates. Order finish per opening so a corridor reads consistently, and confirm every door in the run is 1-3/4 inch thick with a 2-3/4 inch backset AD mortise before you buy the batch, since a mixed-backset run will need a different plate for the odd doors.
