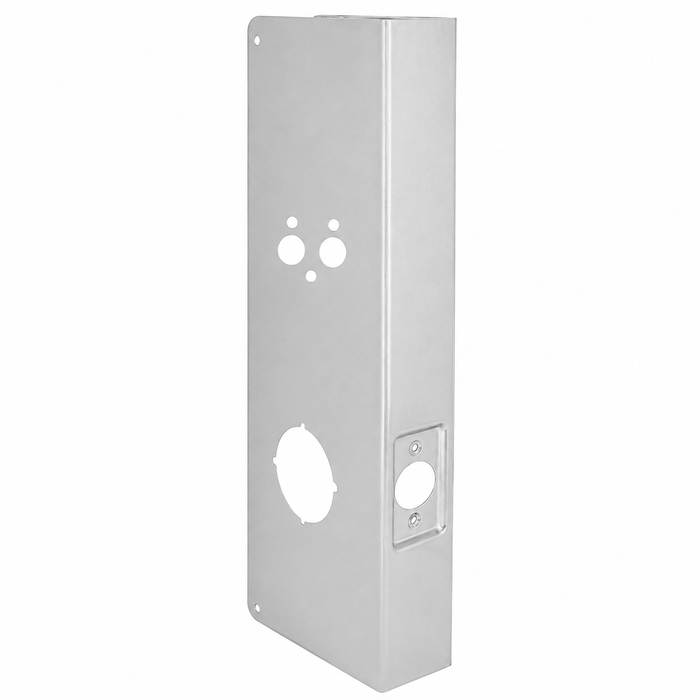

Don-Jo 5100 CW Wrap Around Plate 5-1/8" x 15" for Electronic Locks, 2-3/4" Backset, 1-3/4" Door

Don-Jo 5100 CW Wrap Around Plate 5-1/8" x 15" for Electronic Locks, 2-3/4" Backset, 1-3/4" Door

(No reviews yet) Write a Review

Model: 5100 S CW
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$80.78
$75.54
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Don-Jo 5100 CW Wrap Around Plate 5-1/8" x 15" for Electronic Locks, 2-3/4" Backset, 1-3/4" Door

The Don-Jo 5100 CW is a commercial-grade wrap around plate measuring 5-1/8" wide by 15" tall, engineered to reinforce and finish door lock installations on 1-3/4" doors with a 2-3/4" backset. Constructed from 22-gauge (.032) steel, this wrap around features a hole prep for electronic locks and a latch prep indent, making it fully compatible with the Schlage Pro Series. Available in multiple finishes including 10B (613), PB (605), and S (630), the 5100 CW delivers a clean, professional appearance alongside reliable structural support for commercial door hardware applications.

Key Features

  • Precise Dimensions: Measures 5-1/8" wide by 15" tall to provide comprehensive coverage and reinforcement around the lock area on commercial doors.
  • Door & Backset Compatibility: Designed for 1-3/4" door thickness with a 2-3/4" backset for accurate, secure fitment.
  • Electronic Lock Hole Prep: Pre-cut hole accommodates electronic lock installations, streamlining integration with electrified hardware.
  • Latch Prep Indent: Includes a latch prep indent for proper alignment and a clean finished appearance around the latch bore.
  • Schlage Pro Series Compatible: Specifically designed to work with Schlage Pro Series locks, ensuring reliable compatibility for commercial upgrade and retrofit projects.
  • 22-Gauge Steel Construction: Fabricated from 22-gauge (.032) steel for durable, long-lasting performance in commercial door applications.
  • Multiple Finish Options: Available in 10B (613), PB (605), and S (630) finishes to coordinate with existing door hardware and architectural requirements.

Technical Specifications

  • Subcategory: Wrap Arounds
  • Product Group: Door Trim and Accessories
  • Product Subgroup: Filler Plates, Lock Adapters and Wrap Arounds
  • Product Type: Wrap Arounds
  • Commercial/Residential: Commercial
  • Product Category: Door Trim and Accessories
  • Department: Door Hardware

Typical Applications

  • Commercial Office Buildings
  • Educational Facilities
  • Healthcare Institutions
  • Retail Establishments
  • Government and Municipal Buildings
  • Multi-Tenant Residential Properties
  • Industrial and Warehouse Facilities

Why Don-Jo 5100 CW?

Don-Jo wrap around plates are built to commercial standards, with the 5100 CW crafted from 22-gauge (.032) steel to deliver lasting durability and a precise fit on 1-3/4" doors. Its dedicated electronic lock hole prep and Schlage Pro Series compatibility make it an ideal solution for professionals seeking reliable, code-compliant door hardware reinforcement in demanding commercial environments.

Manufacturer Resources

DON-JO Wrap-Around Plates

Product Specs

Subcategory:
Wrap Arounds
Product Group:
Door Trim and Accessories
Product Subgroup:
Filler Plates, Lock Adapters and Wrap Arounds
Product Type:
Wrap Arounds
Commercial/Residential:
Commercial
Door Width:
1-3/4"
Product Model:
5100 CW
Product Category:
Door Trim and Accessories
Backset (Distance):
2-3/4"
Department:
Door Hardware

Don-Jo 5100 S CW – Frequently Asked Questions

1) Does the Don-Jo 5100 CW work with a Schlage Pro Series electronic lock?
Yes. The 5100 CW carries a hole prep sized for electronic locks and is called out as compatible with the Schlage Pro Series, so the lock body drops through the plate rather than sitting on top of it. It also has a latch prep indent so the plate clears the latch face on the edge of the door.
2) Can a wrap around plate cover up a damaged or oversized lock bore on a metal door?
That is the main reason people buy one. A wrap around like the Don-Jo 5100 CW folds over the lock edge of the door and covers both faces around the lock area, so torn skin, an old prep, or a bore that got wallowed out disappears under 22-gauge (.032) steel. The important part is that the new hardware still has to match the plate: the 5100 CW is prepped for an electronic lock on a 2-3/4 inch backset. If the door is already drilled 2-3/8, the wrap will not help you.
3) How big is the Don-Jo 5100 CW wrap around plate?
It measures 5-1/8 x 15 inches, which is a tall plate: it covers well above and below the lock bore rather than just ringing it. That length is what you want when you are hiding a chewed-up bore, an old cylindrical prep, or kick damage around the lock area. Measure the flat area of your door from the lock edge inward before ordering, since the 5-1/8 inch dimension has to sit flat on the face without running into a glass stop or a panel edge.
4) Do I need a different wrap around plate if my lock is a standard cylindrical lever instead of an electronic lock?
Probably, yes. The 5100 CW's hole is prepped for an electronic lock body, so a plain cylindrical knob or lever rose will not fill that opening correctly. Ask for a Don-Jo wrap around cut for a standard cylindrical prep at the same 2-3/4 inch backset and 1-3/4 inch door thickness instead.
5) Does the wrap around plate go on before or after the electronic lock?
Before. The 5100 CW wraps the lock edge of the door first, with its prep aligned to the existing 2-3/4 inch backset bore and the latch prep indent seated over the latch face on the door edge. The Schlage Pro Series lock then mounts through the plate, and its trim clamps the wrap in place. Trying to fit it after the lock is on means pulling the lock again.
6) What finishes does the Don-Jo 5100 CW come in?
Three: 613 oil rubbed bronze, 605 polished brass, and 630 stainless steel. For a building where you are standardizing on a satin stainless look across the openings, 630 is the one that matches most commercial lever and exit hardware. 605 goes with brass lever sets and 613 with the dark bronze packages.
7) Is 22-gauge steel heavy enough for a wrap around plate on a high traffic door?
22-gauge (.032) steel is the standard commercial weight for wrap arounds, and that is what the Don-Jo 5100 CW is made from. It is a cover and reinforcement plate, not a security plate, so think of it as protecting the door skin and cleaning up the lock area on office, school, healthcare, retail, and multi-tenant openings. It is not doing the work of a latch guard or a reinforcer behind a pried edge.
