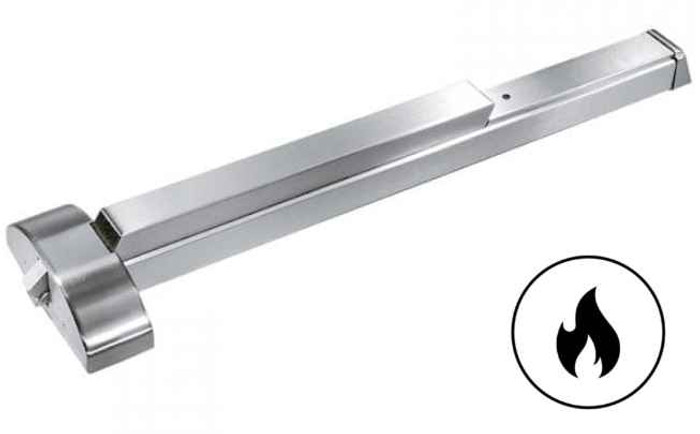

DORMA F9300 Series - Fire Rated 36" Wide Stile Panic Rim Exit Device, Exit Only

DORMA F9300 Series - Fire Rated 36" Wide Stile Panic Rim Exit Device, Exit Only

(No reviews yet) Write a Review

Model: F9300B 689
$1,506.00
$935.05
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$1,506.00
$935.05
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

DORMA 9000 Series Exit Device
Heavy Duty Exit Device

The 9000 Series heavy-duty exit device provides superior durability while the smooth reduced projection touchbar assembly minimizes catch hazards.

For paired doors where a full-width opening is only occasionally required, removable mullions are used. Doors are fitted with rim exit devices and normally function as single doors. Steel and aluminum mullions are available in 8' or 10' lengths.

Available motorized latch retraction (MLR).

  • Heavy duty cast chassis, available in wide or narrow stile
  • Antimicrobial protected coating
  • Motorized latch retraction (MLR) available
  • Complies with NFPA life safety code and AD
  • CBC-compliant option (BF) for maximum 5 lb operating force (9300, 9500, 9700)
  • The Motorized latch retraction features a whisper-quiet motor and operates quietly



PRODUCT DETAILS


Features
Available Finishes

The 9000 Series is available in architectural finishes as well as powder coated finishes. A full complement of free wheeling lever trim is available in a wide range of architectural finishes.

Applications

This premium exit device is built for high impact applications such as schools, universities and other institutional or commercial buildings.

DORMA Solutions

All standard devices and trim are designed for 1-3/4”- 2-1/4” thick doors. For door thickness greater than 2-1/4”, consult DORMA Technical Service.

Motorized Latch Retraction

The MLR feature retracts the latch using a whisper quiet motor, drawing in the touch bar, thus retracting the latch. The device can be activated by a variety of credentials and also has the ability to electrically hold/dog the exit push bar in a retracted position during non-secure hours.



DOWNLOADS & RESOURCES

Manufacturer Resources

Product Specs

Product Group:
Exit Devices and Trim
Series:
9000 Series
Grade:
Grade 1
Duty Level:
Heavy Duty
Fasteners:
Wood and machine screws standard, SNB provided standard on fire rated and hurricane
Product Subgroup:
Exit Devices - Rim
Subcategory:
Rim Exit Devices
Product Type:
Exit Devices - Rim
Commercial/Residential:
Commercial
Stile Type:
Wide Stile
Wood Door Compatible:
No
Product Model:
9300
Door Hand Direction:
Non-Handed
Door Thickness Range:
1-3/4" to 2-1/4"
Product Size:
36"
Dogging Configuration:
Hex key Dogging is standard on Panic models, no Dogging on fire rated models
Fire Rating:
Yes
Trim Hardware:
Exit Only
Door Strike:
463 Strike Standard
Product Category:
Exit Devices and Trim
Department:
Door Hardware

Dormakaba F9300B 689 – Frequently Asked Questions

1) Will the DORMA F9300 rim exit device work on a fire rated door opening?
That's what the F9300 is built for. It's the fire rated version of the DORMA 9300 rim device, Grade 1, and it ships with sex nuts (SNB) as standard on fire rated builds so it through-bolts the door instead of relying on screws alone. One thing to plan around: there is no dogging on the fire rated models. Hex key dogging is standard only on the panic (non-fire) versions. A fire door has to latch every time it closes, so if you were counting on holding the latch retracted during the day, that has to be done with the motorized latch retraction option instead.
2) Is the DORMA 9300 wide stile device right for an aluminum storefront door?
Usually not. The 9300 is a wide stile device, which needs the broad stile you get on hollow metal and heavy commercial doors. Narrow stile aluminum storefront doors don't give you the face width. For those openings the narrow stile rim devices are the right family: the Adams Rite 8800 Series covers the same 1-3/4 to 2-1/4 inch thickness range in a narrow stile, and the Corbin Russwin ED4200 is a Grade 1 narrow stile rim device. If you need narrow stile AND fire rated, the Adams Rite 3700 Series is the one.
3) How do I secure a pair of doors with the DORMA 9300 rim device and still get a full width opening sometimes?
Use removable mullions. A rim device latches into a strike on the frame, so on a pair you put a 9300 on each leaf and a removable mullion between them. Day to day the doors work as two singles; when you need the full clear opening for equipment or furniture, the mullion comes out. DORMA offers steel and aluminum mullions in 8 foot and 10 foot lengths, so match the mullion to your frame height. If you can never have a mullion in the opening, a rim device is the wrong choice and you want vertical rod hardware instead.
4) Can you get outside lever trim on the DORMA F9300, or is it exit only?
This build is exit only. There's no outside trim on it, so the door pushes open from the inside and there is no key or lever entry from the outside face. If people need to get back in through that door, you need a version that accepts trim, or a separate entry point. The 9000 Series does offer free wheeling lever trim in a range of architectural finishes on trim-accepting models.
5) I want motorized latch retraction for access control. Are there other exit bars that do the electrified job?
The DORMA 9300 offers motorized latch retraction, which retracts the latch with a quiet motor and can electrically hold the push bar retracted during non secure hours. Other electrified bars in the same family of openings work differently: the Sargent 12-8810 is a fire rated Grade 1 wide stile rim device with RX and motor electric latch retraction, the SDC S6136 Spectra is a 36 inch electrified architectural rim exit device on a 4 inch wide stile, and the SDC PSB560 SureExit is a 36 inch pressure sense bar with tri-failsafe technology for narrow or wide stile. The SDC MSB550 is a 36 inch mechanical switch bar that releases an electromagnetic lock rather than throwing a latch, so it is not a latching rim device.
6) Does the DORMA 9300 fire rated device dog open, and what do I order if I need a dogged device?
Hex key dogging is standard on the panic models, and fire rated models have no dogging, which is normal for a fire door. If the opening does not need a fire rating and you want a device that holds dogged, the Design Hardware 1000R is a 33 inch heavy duty rim device with hex key dogging and the Design Hardware 2000R is a 33 inch standard duty wide stile rim device with hex key dogging. The Stanley QED200 Series is a Grade 1 heavy duty narrow stile rim device with hex key dogging.
7) What looks like a substitute for a DORMA 9300 rim device but is not?
Three things in the same aisle are not rim exit devices you can swap in. The Hager 4501 and 4601 at 36 inches are concealed vertical rod devices, not rim devices, so they need vertical rod prep and a top and bottom latch rather than a rim strike. The Detex Advantex 00 Series wide stile unit is a dummy exit device with no latching function at all. The Sargent 8504 is a night latch function narrow stile device, which is a different function than the 9300 exit only configuration.
8) The DORMA 9300 fits 1-3/4 inch to 2-1/4 inch doors. Which comparable devices cover the same thickness range?
The Adams Rite 8800 Series 30 inch narrow stile rim device lists the same 1-3/4 inch to 2-1/4 inch door thickness range. The Securitron EMB electromechanical exit bar lists 2-1/4 inch. Several others are built for 1-3/4 inch only, including the Von Duprin 22 Series 36 inch, the Corbin Russwin ED5200, and the Falcon 19-R 36 inch narrow stile, so on a door thicker than 1-3/4 inch those are not a straight swap.
9) Does the DORMA F9300 come with a strike, or do I order that separately?
The 463 strike is standard with the device, so the rim strike that catches the latch comes in the box. Fasteners are covered too: wood and machine screws ship standard, and on the fire rated build you also get sex nuts for through-bolting.
10) Do I need to specify left hand or right hand for the DORMA 9300 exit device?
No handing to specify. The 9300 rim device is non-handed, so the same part goes on a left or right hand door. That's what you want when you're stocking spares for a building with openings swinging both ways.
11) What options should I add when ordering a DORMA 9300 exit device?
Five to consider. AM adds the antimicrobial coating, which matters in healthcare and schools where the touchbar gets hit constantly. SNB is sex nuts for through-bolting. TX gives you security screws where tampering is a concern. HC is the hurricane build and includes SNB. BF is the barrier free option that brings the operating force down to a maximum of 5 pounds for CBC compliance. On dogging, you can order LD (less dogging) or CD (cylinder dogging, supplied with an SC keyway cylinder keyed different to a random combination) - but dogging isn't offered on the fire rated F9300.
12) How does the DORMA 9300 compare to a Von Duprin 22 or a Corbin Russwin ED5200 for a school corridor?
All three are wide stile pushpad rim devices in the same class. The 9300 is Grade 1 heavy duty and fire rated, with a door thickness range of 1-3/4 to 2-1/4 inches. The Von Duprin 22 is Grade 1 wide stile, non-handed, 36 inch, but it's a 1-3/4 inch only device and not fire rated. The Corbin Russwin ED5200 is Grade 1 wide stile at 1-3/4 inches, exit only or accepts trim, not fire rated. So if the opening is a labeled fire door, the 9300 is the one of the three that goes on it. If it isn't, all three are candidates and the thicker door range is the 9300's edge.
13) Can the DORMA 9300 be tied into a card reader so the door unlocks electrically?
Yes, through motorized latch retraction. MLR uses a motor to draw the touchbar in and retract the latch, and it can be triggered by a range of credentials. It'll also hold the pushbar retracted electrically during open hours, which is how you get free ingress on a fire rated door that can't be mechanically dogged. DORMA notes the motor runs quietly, which matters if the device sits over a reception desk or classroom.
14) My spec calls for a crossbar rim device rather than a touchbar. What are my options?
The DORMA 9300 uses a reduced projection touchbar assembly. If the drawing calls for a crossbar, the Corbin Russwin ED3200 is a Grade 1 48 inch wide stile crossbar rim exit device, and the CRL Jackson 1095 Series at 48 inches is a crossbar rim panic exit device in a wide stile exit only configuration. Both are crossbar rather than touchbar and neither carries a fire rating.
15) I am standardizing a school on one heavy duty wide stile rim device. What else is in that class besides the DORMA 9000 Series?
The DORMA 9000 Series is a heavy duty Grade 1 wide stile rim device built for schools, universities and other institutional buildings. In the same duty class, the Detex 10 Advantex Series at 36 inches is an extra heavy duty Grade 1 wide stile rim device, the Detex V4003A is a Grade 1 wide stile rim device, the TownSteel ED9700 at 36 inches is a heavy duty Grade 1 wide stile rim device, and the Corbin Russwin ED5200 at 36 inches is a Grade 1 wide stile rim device that accepts trim as well as running exit only. Of those, only the DORMA 9000 Series in the fire rated configuration carries a fire rating, which matters on any opening in a rated wall.
16) My paired doors are 48 inches per leaf. Which wide stile rim devices are sized for that?
The DORMA 9300 discussed here is the 36 inch size. For 48 inch leaves, the Sargent 2828 and Sargent 3828 are Grade 1 reversible wide stile rim exit devices for 48 inch doors in exit only, the Cal-Royal 5500 is a 48 inch wide rim exit device with push bar, and the Cal-Royal A9820 is a 48 inch exit only rim device. If the leaf is also in a rated wall, the Marks USA M9900F 48 inch is fire rated.
17) What finishes does the DORMA 9300 exit device come in, and can I match the other hardware in my building?
Fifteen finishes, spanning architectural and powder coated. The brass and bronze range runs 605 bright brass, 606 satin brass, 696 satin brass, 611 bright bronze, 612 satin bronze, 613 oil rubbed bronze, 691 light bronze and 695 dark bronze. Plated and stainless options are 619 satin nickel, 625 bright chrome, 626 satin chrome, 629 bright stainless and 630 satin stainless. There's also 689 anodized aluminum and 693 black. If you're standardizing a facility, 630 satin stainless and 689 aluminum are the two that most commonly match existing commercial door hardware.
18) Is the DORMA 9300 heavy duty enough for a high traffic school exit?
It's built for exactly that. Grade 1, heavy duty rating, cast chassis, and the touchbar has a reduced projection so there's less to catch a backpack or a cart on in a crowded corridor. The antimicrobial coating option is worth adding on a touchbar that gets hit hundreds of times a day.
