Product Summary

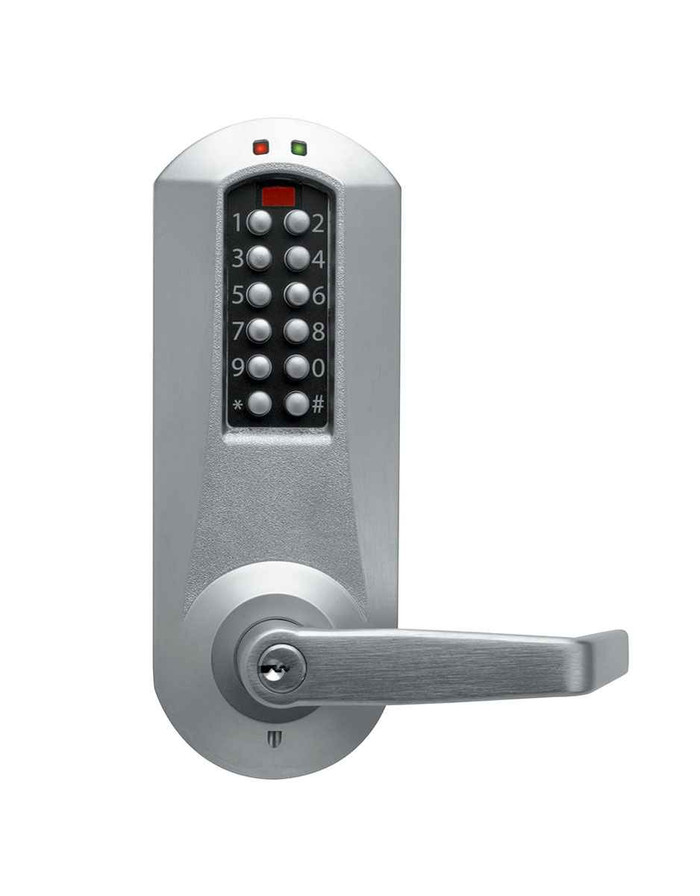

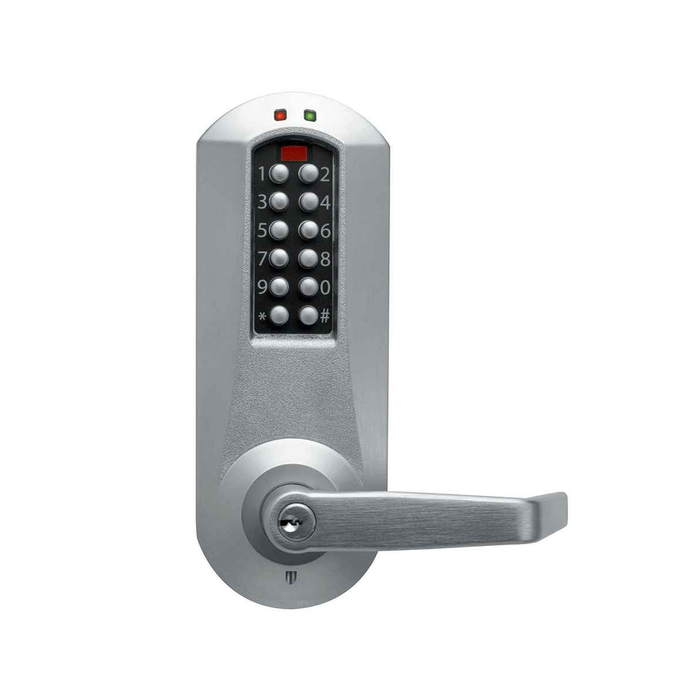

The E-Plex 5000 Electronic Pushbutton Lock Series provides exterior access by combination, while allowing free egress. This electronic pushbutton lock eliminates problems and costs associated with issuing, controlling, and collecting keys and cards, has up to 100 Access Codes and is programmed via keypad or with optional Microsoft Excel-based software.
Product Details
Number of Codes:Multiple Users—100 Codes; upgrades to 300 Codes with optional software
Locking Device Options:
- Cylindrical: Cylindrical latch with 3-hour UL/ULC fire rating
- Rim Exit Device: Compatible with most leading brands of Exit Devices (Exit Device and Mounting Hardware not included)
- American Standard Mortise: With 1" (25 mm) and 1¼" (32 mm) face plate; with and without Deadbolt
Audit Trail: The most recent 9,000 lock events are recorded in memory, including use of the mechanical key override. Software is required to view audit events.
Programming: Locks are programmed via keypad or with optional Microsoft® Excel®-based software— simplifies management of doors and users as facility’s number of users and accesspoints grow
Handing: Non-handed, pre-assembled for left-hand door installations—easily changed in the field
Key Override:
- Key-in-lever cylinders
- Small format interchangeable cores
- Large format removable cores
Operation Modes:
- PIN access
- Lockout
- Passage—can be toggled on/off or can be pre-programmed to relock after a certain number of hours (from 1 to 24)
Authority Levels:
- Master Level—Performs all set-up and programming functions
- Manager Level—Administers common programming functions
- Access User Level—Entry granted with valid PIN
- Service Level—Codes for single event or single day access, programmable in advance
- Maintenance Level—No access is granted, but information can be uploaded/downloaded to/from the lock
User Parameters:
- Code length—Adjustable to accept 4 to 8 digits
- Anti-tamper lockout—Adjustable from 3 to 9 invalid attempts with an adjustable period of 0 to 90 seconds
- Relock time—Adjustable from 2 to 20 seconds
Ease of Installation: LectroBoltTM eliminates wiring to or through the door—no risk of pinched wires
Exit Device Compatibility: Find a list of compatible exit devices in the Electronic Lock price book
Technical Details:
Construction: Extra heavy-duty cylindrical lockset, solid cast housings, solid cast levers, cylindrical drive wear tested for extensive use in indoor and outdoor applications
Door Handing:
- Cylindrical and E-Plex Mortise—Non-handed, pre-assembled for left-hand door installations—easily changed in the field
- Exit Trim—Non-handed
Backsets:
- Cylindrical—2 1⁄8" (70 mm), 2 3⁄8" (60 mm)
- Mortise—2 3⁄4" (70 mm)
- Exit Trim—Varies by exit device type
Latch:
- Cylindrical—1⁄2" (13 mm) latch, 3⁄4" (19 mm) latch (optional)
- Mortise—3⁄4" (19 mm) latch, 1" (25 mm) deadbolt (optional)
Additional Configurations:
- Stand-Alone Access Controller - view product specifications
- Entry/Exit
Minimum Stile Recommended: 5" (127 mm)
KEY OVERRIDE: Find a list of key overrides in the Electronic Lock pricebook
Door Preparation: Easily installs on wood or metal doors; four bolt installation; no wiring
Door Thickness:
- Cylindrical—1 3⁄8" (35 mm) to 2 1⁄4" (57 mm); Pre-assembled to accommodate doors 1 5⁄8" (41 mm) to 2" (50 mm)
- Mortise—1 3⁄4" (44 mm) to 2 1⁄4" (57 mm); Pre-assembled to accommodate doors 1 5⁄8" (41 mm) to 2" (50 mm)
- Exit Trim—1 3⁄4" (44 mm) to 2 1⁄4" (57 mm); Pre-assembled to accommodate doors 1 5⁄8" (41 mm) to 2" (50 mm)
Accessibility Standard: Americans with Disabilities Act (ADA)
Durability: ANSI/BHMA Grade 1 Certified (A156.25, A156.2, A156.13, A156.3)
Fire Rating: Three-hour UL/ULC fire door rating for "A" labeled doors
Environmental:
- Indoor/Outdoor Approved
- Front Housing: -31 °F (-35 °C) to + 151 °F (66 °C)
- Rear Housing: -31 °F (-35 °C) to + 130 °F (55 °C)
Warranty: 3-year warranty from date of installation; built-in warranty counter in lock memory
Standard Finishes:
- Satin Chrome 26D (626) housings and levers
- Black (676) housings with Satin Chrome (626) levers and accents
Optional Finishes:
- Bright Brass 03 (605) housings and levers
- Satin Brass 04 (606) housings and levers
- Bright Chrome 026 (625) housings and levers
- Dark Bronze 744 with brass accents
Manufacturer Resources
Product Specs
- Category:
- Mechanical Locks
- Product Group:
- Mechanical Locks
- Series:
- E-Plex 5000 Series
- Grade:
- Grade 1
- Product Type:
- Leversets
- Warranty:
- 3 Year Limited
- Door Thickness:
- 1-3/8" to 2-1/4"
- Standard Cylinder:
- Conventional Cylinder
- Handing:
- Non-Handed
- Product Subgroup:
- Bored Locksets
- Subcategory:
- Push Buttons Locks
- Stile Width:
- 5"
- Substrate:
- Brass or Bronze
- Commercial/Residential:
- Commercial
- Cylinder and Keyways:
- C Keyway
- Features:
- Vandal resistant, metal pushbuttons
- Latch Throw:
- 1/2"
- Electronic:
- Yes
- Lock Type:
- Cylindrical
- Handle Type:
- Lever
- Stile Type:
- Wide Stile
- Package Includes:
- Lock assembly, installation manual, full scale template, and required hardware
- Segment:
- Door Hardware
