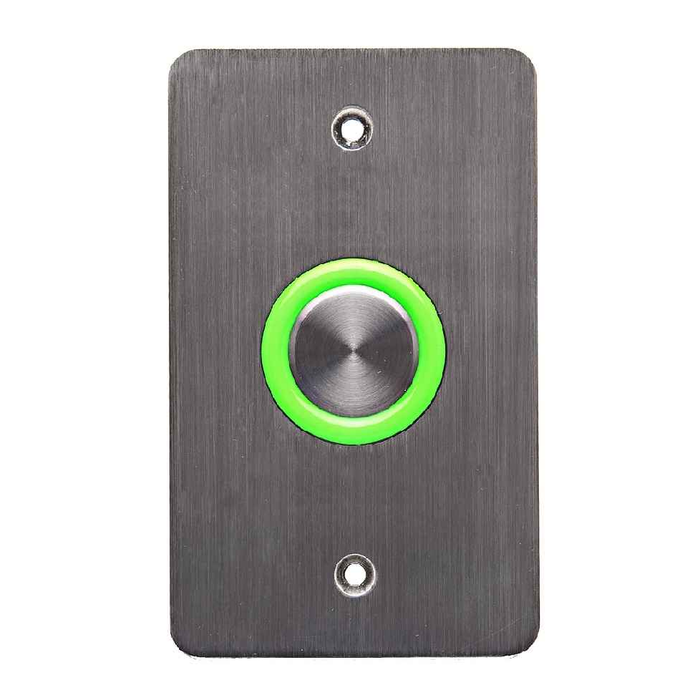

DynaLock 6600 Series Halo-Lighted Piezo Rex PushButtons
Model 6610 Single Gang, Blank Faceplate, 10-24 VDC
DynaLock 6600 Series halo-lighted, request-to-exit (REX) push buttons incorporate a heavy duty, non-sparking, non-magnetic, corrosion resistant, anti-vandal piezoelectric switch, designed for indoor and outdoor use. Pressing the soft-touch piezoelectric switch generates a timed, dry contact relay pulse, for direct release control of an electronic locking device, or similar application. The SPDT-double-break (Form Z) output relay contacts are rated for 5 Amps @ 125VAC, with a field-adjustable pulse-time of 1-60 seconds. Additionally, a brilliant, external led ring indicator may be set to illuminate red, green or yellow and change state upon relay activation. Standard models are offered in a choice of single-gang box or narrow mullion mount, with or without “EXIT” signage and are ideal for use wherever high-use, abuse and resistance to moisture and the elements is a concern
DynaLock’s 6610/6610E is a heavy duty single gang, halo-lighted piezo REX push button. Features include selectable illumination (green/red/no illumination), adjustable 1-60 second output timer, Form C
relay outputs and single finger touch activation. This illuminated switch is non-sparking, non-magnetic
and corrosion resistant, making it a perfect fit for industrial, high risk environments as well as access
control systems and direct door control
Standard Features
• Advanced Soft Touch Piezoelectric Switch
• Water & Dust Proof (Meets IP65)
• Vandal resistant
• Selectable Input Voltage (10-24VDC)
• Light Ring Status Indicator
• 5 Amp N.C. & N.O. Relay Output
• Encapsulated Circuit Board Assembly
• Chemical Solvent Repellent
• Lifetime Warranty
Manufacturer Resources
Product Specs
- Subcategory:
- Push Buttons
- Series:
- 6600
- Product Group:
- Electronic Access Controls
- Product Subgroup:
- Sensors, Switches, Relays and Timers
- Product Type:
- Switches / Push Buttons
- Commercial/Residential:
- Commercial
- Electronic:
- Yes
- Warranty:
- Lifetime Warranty
- Duty Level:
- Heavy Duty
- Product Model:
- 6610
- Product Voltage:
- 10-24VDC
- Product Finish:
- Brushed Stainless Steel US32D
- Product Category:
- Electronic Access Controls
- Department:
- Door Hardware
DynaLock 6610 – Frequently Asked Questions
1) Will the DynaLock 6610 REX push button fit a standard single gang electrical box?
Yes. The 6610 is built for a standard single gang box with a blank faceplate (no EXIT lettering), in a brushed stainless steel US32D finish. If there is no box in the wall, it can be ordered with a single gang surface back box instead, which is the option choice on the 6610.
2) Can the DynaLock 6610 exit button be mounted outdoors or in a wash-down area?
It is rated to IP65 for water and dust, with an encapsulated circuit board and a chemical solvent repellent housing, so it is made for indoor or outdoor use. The piezo switch is non-sparking, non-magnetic and corrosion resistant, which is why it gets specified in industrial and high-abuse locations as well as normal access control openings.
3) What voltage and relay output does the DynaLock 6610 piezo push button use?
It runs on 10-24VDC, selectable, so it drops onto the same low voltage supply feeding most maglocks and access control panels. The output is a dry contact SPDT double-break (Form Z) relay rated 5 Amps at 125VAC, giving you both N.O. and N.C. contacts for direct lock release or a panel input.
4) How long does the DynaLock 6610 hold the door released after someone presses it?
The pulse time is field adjustable from 1 to 60 seconds, set at the device, so you can tune the unlock window to the opening without adding an external timer. The relay pulses on a single finger touch of the piezo switch.
5) Can I wire the DynaLock 6610 straight to a maglock without an access control panel?
Yes. The dry contact Form Z relay output is meant for direct release control of an electronic locking device, so you can break the lock power through the N.C. contact and use the adjustable 1-60 second timer as the unlock duration. The spare contact set is also available if you want to signal an alarm panel or access control input at the same time.
6) I need the door to stay unlocked until someone switches it back - is the 6610 the right choice?
No. The DynaLock 6610 gives a timed pulse, field-adjustable from 1 to 60 seconds, and then returns to its normal state. For a maintained output that holds until reset, look at the RCI 908 Series electronic exit button with maintained operation, the RCI 919 Series rotary release with maintained operation, or the RCI 909 Series flush mount momentary rocker switch rated 250VAC 10A depending on the trim you want. For key-controlled maintained release, the ACSI 1310-1 is a mortise keyswitch.
7) What is the closest equivalent to the DynaLock 6610 halo-lighted piezo REX button from another brand?
The Securitron PB4L is the nearest match in concept - it is an illuminated halo push button with a stainless button. The DynaLock 6610 is a single gang, blank faceplate piezo request-to-exit button running on 10-24VDC with a light ring status indicator, a field-adjustable 1-60 second pulse timer and 5 Amp N.C. and N.O. relay output. The Securitron PB5 is another illuminated option, built as a medium round button rather than a single gang plate. If you want the halo look in a round trim instead of a square gang plate, the PB5 is the shape to look at.
8) The 6610 will not fit - I only have a mullion, not a single gang box. What should I use?
The DynaLock 6610 is built for a single gang box with a blank faceplate, and it is offered with or without a surface back box. For a narrow mullion or stile where a gang box is not available, the Trine 342 is a narrow style electric door switch, and the RCI 919 Series rotary release button in satin aluminum is another small-footprint release device. DynaLock also builds the 6600 Series in a narrow mullion mount version if you want to stay with the same piezo switch.
9) Does the DynaLock 6610 work as an emergency release, or do I need a different button?
The DynaLock 6610 is a request-to-exit push button with a blank faceplate - no legend - that generates a timed dry contact pulse to release an electronic lock. For an opening that needs a marked emergency release, the Securitron EEB is an emergency exit push button with interchangeable LED lenses, and the ACSI 1320-1-MOM-ER is a pushbutton switch marked "Emergency Release". If you want an EXIT legend rather than an emergency marking, the RCI 908 Series electronic exit button carries red EXIT text.
10) Does the DynaLock 6610 exit button light up, and can the color be changed?
There is an external LED halo ring around the button. It can be set to red, green or yellow, and it changes state when the relay activates, so staff get visual confirmation the door released. Illumination can also be switched off if you want a dark button.
11) Is there a version of the DynaLock 6600 push button with EXIT lettering or for a narrow mullion?
The 6600 Series is offered in single gang or narrow mullion mount, with or without EXIT signage. The 6610 specifically is the single gang, blank faceplate version. If you need the printed EXIT marking or a mullion-width plate, you want a different model in the same series.
12) What is the difference between the DynaLock 6610 piezo button and a mechanical push button like the Securitron PB3?
The 6610 uses a piezoelectric switch, meaning there are no moving contacts to wear out or spark, and it carries an IP65 rating for wet or dusty locations. The Securitron PB3 Series and PB4L Series are conventional push buttons, the PB4L with an illuminated halo similar in look. For a plain mechanical release in a dry interior corridor a PB3 does the job; the 6610 is what you reach for when the button takes abuse, moisture, or sits in a hazardous or high-traffic area.
13) I need an ADA push plate for an automatic operator, not a small button. Is the 6610 the right part?
No. The 6610 is a single gang finger-touch REX button for releasing an electronic lock, not a large actuator plate. For a handicap-symbol push plate, the RCI 950 Series round push plate with handicap symbol in satin stainless is the type to look at.
14) I do not need illumination - what is a simpler exit button than the DynaLock 6610?
The Securitron PB3 Series push buttons are the plain, non-illuminated alternative. The DynaLock 6610 carries a selectable red, green or yellow LED ring that changes state on relay activation, plus a piezoelectric switch element with no moving contact; if the status indication is not part of your sequence of operation, a PB3 covers the release function without it. The Trine 342 is another option where the opening is narrow, since it is a narrow style electric door switch rather than a single gang plate.
15) Is an ADA push plate like the RCI 950HP a substitute for the DynaLock 6610?
They do different jobs at the opening. The RCI 950 Series is a round push plate with a handicap symbol, momentary, in satin stainless - it is the actuator a user hits to trigger a power operator or release. The DynaLock 6610 is a single gang piezo request-to-exit button in brushed stainless steel US32D with a halo status light, an adjustable 1-60 second output pulse and Form Z double-break relay contacts rated 5 Amps at 125VAC. If your drawing calls for an accessible actuator with the ISA symbol, the 950HP is the item; the 6610 has a blank faceplate and no symbol.
16) For a wet or washdown area, how does the DynaLock 6610 compare to a standard mechanical exit button?
The DynaLock 6610 uses a piezoelectric switch with no moving contact, an encapsulated circuit board assembly, and is rated water and dust proof to IP65, chemical solvent repellent, non-sparking, non-magnetic and corrosion resistant, which is why it is specified for industrial and high risk environments. Mechanical-contact alternatives such as the Securitron PB3 Series push buttons or the RCI 909 Series flush mount rocker switch use a conventional switch mechanism instead. If moisture, washdown chemicals or vandalism drive the selection, the 6610 is the one built around that condition.
17) Is the DynaLock 6610 push button rated for commercial and high-use buildings?
It is a commercial, heavy duty device. The piezo switch has no mechanical travel to wear, the board is encapsulated, and the faceplate is vandal resistant brushed stainless US32D, which is why it holds up on high-traffic and high-abuse openings such as hospitals, schools, and back-of-house doors.
