DynaLock 6600 Series Halo-Lighted Piezo Rex PushButtons

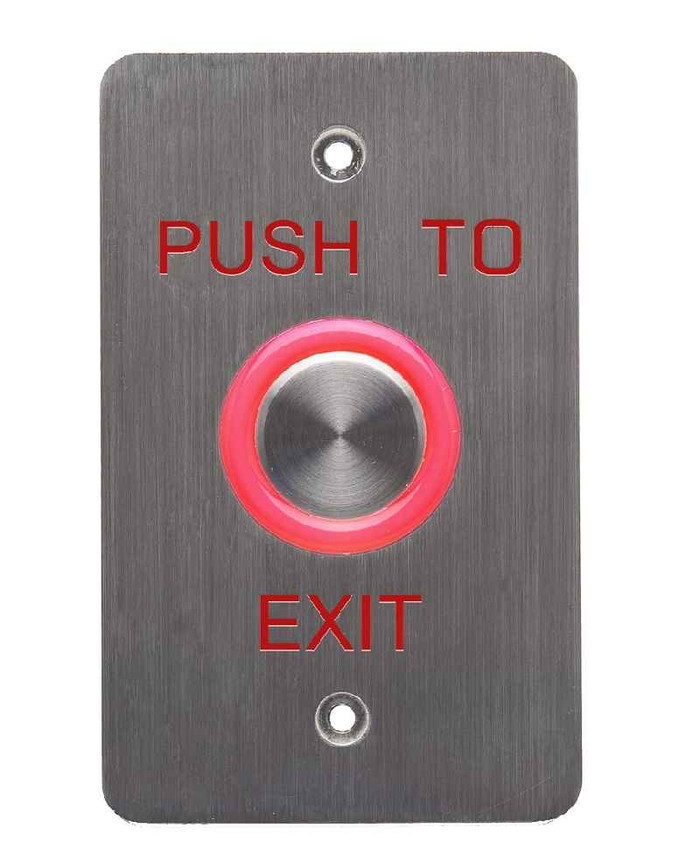

Model 6610E Single Gang, “PUSH TO EXIT” Faceplate, 10-24 VDC
DynaLock 6600 Series halo-lighted, request-to-exit (REX) push buttons incorporate a heavy duty, non-sparking, non-magnetic, corrosion resistant, anti-vandal piezoelectric switch, designed for indoor and outdoor use. Pressing the soft-touch piezoelectric switch generates a timed, dry contact relay pulse, for direct release control of an electronic locking device, or similar application. The SPDT-double-break (Form Z) output relay contacts are rated for 5 Amps @ 125VAC, with a field-adjustable pulse-time of 1-60 seconds. Additionally, a brilliant, external led ring indicator may be set to illuminate red, green or yellow and change state upon relay activation. Standard models are offered in a choice of single-gang box or narrow mullion mount, with or without “EXIT” signage and are ideal for use wherever high-use, abuse and resistance to moisture and the elements is a concern
DynaLock’s 6610/6610E is a heavy duty single gang, halo-lighted piezo REX push button. Features include selectable illumination (green/red/no illumination), adjustable 1-60 second output timer, Form C
relay outputs and single finger touch activation. This illuminated switch is non-sparking, non-magnetic
and corrosion resistant, making it a perfect fit for industrial, high risk environments as well as access
control systems and direct door control
Standard Features
• Advanced Soft Touch Piezoelectric Switch
• Water & Dust Proof (Meets IP65)
• Vandal resistant
• Selectable Input Voltage (10-24VDC)
• Light Ring Status Indicator
• 5 Amp N.C. & N.O. Relay Output
• Encapsulated Circuit Board Assembly
• Chemical Solvent Repellent
• Lifetime Warranty
Manufacturer Resources
Product Specs
- Subcategory:
- Push Buttons
- Series:
- 6600
- Product Group:
- Electronic Access Controls
- Product Subgroup:
- Sensors, Switches, Relays and Timers
- Product Type:
- Switch / Push Button
- Commercial/Residential:
- Commercial
- Electronic:
- Yes
- Warranty:
- Lifetime Warranty
- Duty Level:
- Heavy Duty
- Product Model:
- 6610E
- Product Voltage:
- 10-24VDC
- Product Finish:
- Brushed Stainless Steel US32D
- Product Category:
- Electronic Access Controls
- Department:
- Door Hardware
DynaLock 6610E – Frequently Asked Questions
1) Will the DynaLock 6610E push to exit button mount in a standard single gang electrical box?
Yes. The 6610E is built as a single gang REX push button with a "PUSH TO EXIT" faceplate, so it drops into a standard single gang box in the wall. If there is no box in the wall, or you are mounting on concrete or block where you cannot cut in, the 6610E can be ordered with a single gang surface back box instead, which is a yes/no choice when you order.
2) What voltage does the DynaLock 6610E exit button run on, and will it work off my 12V access control panel?
The 6610E accepts 10 to 24 VDC, selectable, so it runs off either a 12 VDC or a 24 VDC supply from an access control panel or power supply without changing parts. It is DC only.
3) Can the 6610E release a maglock directly, or do I have to run it through a controller?
It can do either. Pressing the piezo switch generates a timed dry contact relay pulse that can directly release an electronic locking device, or you can wire it as a REX input to an access control panel. The output is SPDT double-break (Form Z) with both N.O. and N.C. contacts rated 5 Amps at 125VAC, so you can break maglock power in line or signal a controller.
4) Can I use this exit button outdoors or in a wash-down area?
Yes. The 6610E uses a piezoelectric switch with no moving contacts, is rated water and dust proof to IP65, has an encapsulated circuit board and is chemical solvent repellent, so it is intended for indoor and outdoor use. That also makes it suitable for wash-down and industrial areas where a mechanical plunger switch would corrode or stick.
5) I need a request-to-exit button for a narrow mullion, not a single gang box. Is the 6610E the right model?
No. The 6610E is the single gang version of the DynaLock 6600 Series. The series is also offered in a narrow mullion mount, with or without "EXIT" signage, so for a mullion or narrow stile you want that version rather than the 6610E. Another route on a narrow application is the Trine 342 narrow style electric door switch.
6) I need a maintained switch rather than a momentary pulse - is the DynaLock 6610E the right part?
No. The 6610E generates a timed dry contact relay pulse with a field-adjustable 1 to 60 second output, so it releases and then restores. For a switch that latches in position, look at the RCI 908 series electronic exit button with red EXIT text in maintained operation, or the RCI 919 rotary release button, also maintained. The ACSI 1310-1 mortise keyswitch is another option where the release needs to be key-controlled rather than free push.
7) What is the closest equivalent to the DynaLock 6610E halo-lighted push to exit button from another manufacturer?
The DynaLock 6610E is a single gang, halo-lighted piezo request-to-exit push button with a "PUSH TO EXIT" faceplate running on 10-24VDC. The nearest counterpart in another line is the Securitron PB4L, an illuminated halo push button with a stainless button. Securitron also offers the PB5, a medium round illuminated push button, if a round trim shape suits the opening better than a single gang plate.
8) How long does the DynaLock 6610E hold the door released after someone presses it?
The relay pulse time is field adjustable from 1 to 60 seconds, set at the button itself. That covers a quick 3 to 5 second egress release as well as longer holds for loading doors or accessible openings where people need more time to clear the door.
9) Why choose a piezo exit button instead of a standard mechanical push button?
A piezo switch has no mechanical contacts to wear out or arc. The 6610E's switch is non-sparking, non-magnetic, corrosion resistant and anti-vandal, activated by a single finger touch. That matters in hazardous or explosive-risk areas, around MRI or magnetically sensitive equipment, and on high-abuse openings such as schools, corrections, and transit. For a plain interior office door with light traffic, a conventional momentary push button like the Securitron PB3 or the Trine 342 narrow style switch will do the same job more simply.
10) Does the DynaLock 6610E light up, and can I tell from across the room whether the door released?
It has an external LED halo ring around the button. The ring can be set to illuminate red, green or yellow, or no illumination, and it changes state when the relay activates, so staff get visual confirmation that the release fired. That is the same idea as the Securitron PB4L illuminated halo button, if you are matching what is already on other doors.
11) Is the 6610E heavy enough for a high-traffic public entrance?
It is built as commercial heavy duty hardware. The piezo switch has no moving plunger to wear, the plate is vandal resistant, and the board is encapsulated, which is why the 6600 Series is aimed at high-use, abuse-prone openings and locations exposed to moisture and the elements.
12) Can the DynaLock 6610E be used as an emergency release button?
The 6610E carries a "PUSH TO EXIT" faceplate, so it reads as a normal request-to-exit device rather than an emergency release. Where the opening calls for emergency release signage or a break-glass style device, the ACSI 1320-1-MOM-ER pushbutton switch is marked "Emergency Release," and the Securitron EEB emergency exit push button uses interchangeable LED lenses.
13) If I do not need the lighted halo, what is a simpler exit button to use instead of the 6610E?
The 6610E's selectable red, green or yellow LED ring is one of its defining features, so if status indication is not required, a plain mechanical button is the simpler path. The Securitron PB3 series push buttons and the Trine 342 narrow style electric door switch are both non-illuminated release switches. The Trine 342 is narrow style, which also suits a mullion or narrow stile where a single gang plate will not fit.
14) For an ADA barrier-free opening, should I specify the 6610E or a push plate?
The 6610E is a single finger touch piezo button on a single gang plate, sized for a hand press rather than a wheelchair or elbow strike. For a barrier-free actuator, the RCI 950 series round push plate carries the handicap symbol and uses a momentary switch in satin stainless steel, which matches the 6610E's brushed stainless US32D trim reasonably closely on a mixed-hardware opening.
15) What is the difference between the DynaLock 6610E and the RCI 909F-MO rocker switch?
The 6610E is an anti-vandal piezoelectric button with no moving parts, rated water and dust proof to IP65, with SPDT double-break relay contacts rated 5 amps at 125VAC. The RCI 909F is a flush mount momentary rocker switch rated 250VAC at 10 amps in a beige finish. The rocker is a mechanical actuator with a higher stated switching rating; the 6610E is the sealed, vandal and moisture resistant choice for exterior or high-abuse locations.
16) What finish is the DynaLock 6610E faceplate, and will it match the other hardware on my doors?
Brushed stainless steel, US32D. That is the standard satin stainless commercial finish, so it matches satin stainless lever trim, push plates and most other REX plates on an opening, including satin stainless buttons like the RCI 950 round push plate.
