B-Line Eaton series Type 3/3R ...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$559.37

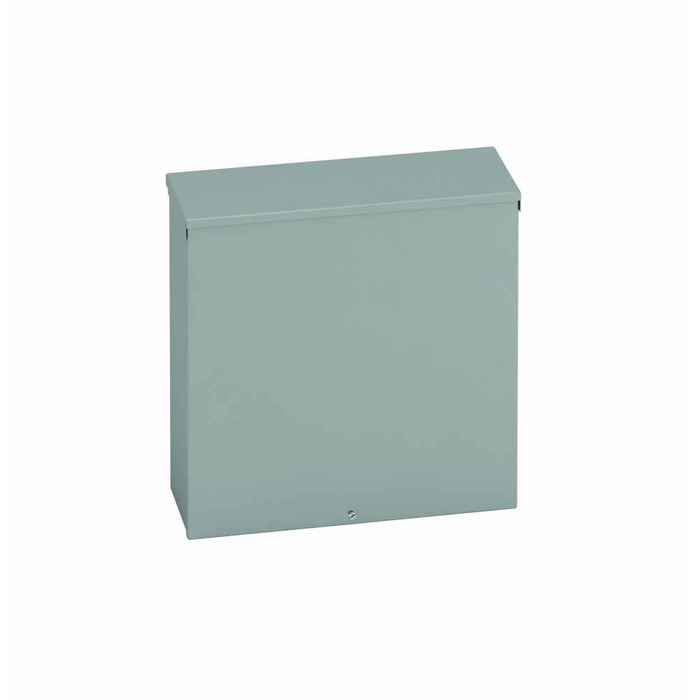

B-Line Eaton series Type 3/3R junction boxes, 15" height, 4" length, 12" width, 3R, Screw cover, RTSC enclosure, Surface mounted, Small single door,

B-Line Eaton series Type 3/3R junction boxes, 15" height, 4" length, 12" width, 3R, Screw cover, RTSC enclosure, Surface mounted, Small single door,

(No reviews yet) Write a Review

Model: 15124 RTSC
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$559.37
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
Eaton B-Line series Type 3/3R junction boxes, 15" height, 4" length, 12" width, NEMA 3R, Screw cover, RTSC enclosure, Surface mounted, Small single door, 5 bottom knockouts, Embossed thru holes, Carbon steel

Manufacturer Resources

Product Specs

Bottom Knockouts:
5
Certifications:
UL 50
Closure Type:
Flanged cover
Country Of Origin:
United States
Cover Type:
Screw
Finish Color:
Painted
Mounting Hole Details:
Embossed thru holes
Mounting Method:
Surface
Nema Rating:
3R
Product Height:
15 in
Product Length Depth:
4 in
Product Weight:
9.9 lb
Product Width:
12 in
Special Features:
Rain hood, plated screws
Wall Thickness:
16 gauge
Department:
Electrical
Product Model:
RTSC enclosure
Product Color:
ANSI 61 Grey
Product Style:
Small single door
Product Material:
Carbon steel

B-LINE 15124 RTSC – Frequently Asked Questions

1) Can the B-Line 15124 RTSC enclosure be mounted outdoors?
Yes. The Eaton B-Line 15124 RTSC screw cover enclosure carries a NEMA 3R rating, so it is built for outdoor use against falling rain and dripping water, and it includes a rain hood over the cover. It is not a washdown or hose-down box, so keep it out of direct spray and submersion locations.
2) What are the box dimensions on the B-Line 15124 RTSC junction box?
It measures 15 inches high, 12 inches wide and 4 inches deep, which is the usable depth you have for gutter work, terminal blocks or a small device. The 4 inch depth is tight for anything with deep back-mounted components, so check your DIN rail or contactor depth before committing.
3) How does this B-Line enclosure attach to a wall or strut?
It is a surface mount enclosure with embossed thru holes in the back, so it bolts flat to a wall, backer board or strut run. Mounting bolts or anchors are not part of the enclosure, so pick fasteners to suit the substrate. At 9.9 lb empty, a single installer can hang it, but hold it level while you set the anchors.
4) Does the 15124 RTSC come with conduit holes already punched?
There are 5 knockouts in the bottom of the box and no factory openings elsewhere. That suits bottom entry for outdoor work, which is what you want on a 3R box so water is not running into a top penetration. If you need side or back entry you will have to punch it yourself and use a raintight fitting to keep the 3R rating intact.
5) Is a screw cover enclosure the right choice, or do I need a hinged door box?
A screw cover box like the RTSC is for enclosures you open rarely, junction and pull points, splices, gutter taps. The flanged cover comes off completely and you handle loose plated screws on a ladder. If an electrician or technician needs regular access to breakers, relays or terminals, choose a hinged continuous door enclosure instead so the cover stays captive.
6) What gauge steel and finish is the B-Line 15124 RTSC, and will it hold up outdoors?
Body and cover are 16 gauge carbon steel with a painted finish in ANSI 61 grey, the standard industrial enclosure color, so it matches gear and panels already on the site. Cover screws are plated to resist rusting in place outdoors. For coastal or chemical exposure where paint will not last, specify a stainless or non-metallic 3R enclosure instead.
7) Is the B-Line 15124 RTSC UL listed for a commercial spec job?
It is built to UL 50, the enclosure standard for electrical equipment, and it is made in the US. That plus the NEMA 3R rating is usually what a spec or inspector is looking for on an outdoor junction or pull box.
How fast can I get the B-LINE 15124 RTSC delivered?
Most orders ship the same day from our distribution partners, with quick delivery throughout the continental U.S. Need it urgently? Contact Us for expedited shipping options.
Can I return it if it doesn’t work for me?
Yes—ZenSupply offers a hassle-free return policy. If the product isn’t the right fit, reach out to our support team for a return authorization or setup a return by following our return instructions.
Does the B-LINE 15124 RTSC come with a warranty?
Absolutely. The B-LINE 15124 RTSC is backed by a manufacturer’s warranty. For full warranty terms, check the product documentation or Contact Us.
How do I get technical support or installation help for the B-LINE 15124 RTSC?
You can call, text, or email our expert support team for fast answers. We’re here to help with product selection, installation tips, and troubleshooting. Contact Us
Why buy the B-LINE 15124 RTSC from ZenSupply?
ZenSupply makes it easy to get the commercial door hardware you need—fast shipping, expert support, and rewards on every order. Our team is always ready to help you choose the right product for your project.
!
