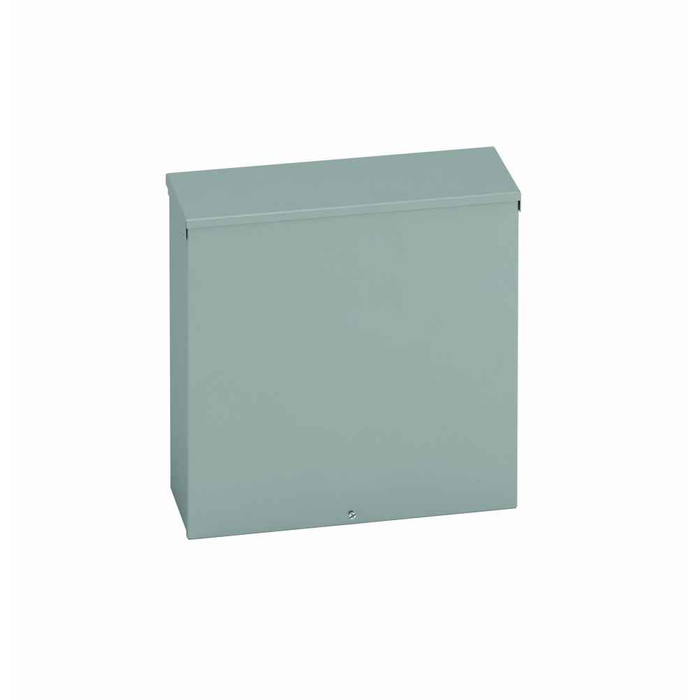

B-Line Eaton series Type 3/3R ...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$1,315.49
B-Line Eaton series Type 3/3R junction boxes, 24" height, 6" length, 18" width, 3R, Screw cover, RTSC enclosure, Surface mounted, Medium single door,

B-Line Eaton series Type 3/3R junction boxes, 24" height, 6" length, 18" width, 3R, Screw cover, RTSC enclosure, Surface mounted, Medium single door,

(No reviews yet) Write a Review

Model: 24186 RTSC
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$1,315.49
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
Eaton B-Line series Type 3/3R junction boxes, 24" height, 6" length, 18" width, NEMA 3R, Screw cover, RTSC enclosure, Surface mounted, Medium single door, 9, Embossed thru holes, Carbon steel

Manufacturer Resources

Product Specs

Bottom Knockouts:
9
Certifications:
UL 50
Closure Type:
Flanged cover
Country Of Origin:
United States
Cover Type:
Screw
Finish Color:
Painted
Mounting Hole Details:
Embossed thru holes
Mounting Method:
Surface
Nema Rating:
3R
Product Height:
24 in
Product Length Depth:
6 in
Product Weight:
25.8 lb
Product Width:
18 in
Special Features:
Rain hood, plated screws
Wall Thickness:
16 gauge
Department:
Electrical
Product Model:
RTSC enclosure
Product Color:
ANSI 61 Grey
Product Style:
Medium single door
Product Material:
Carbon steel

B-LINE 24186 RTSC – Frequently Asked Questions

1) Can the B-Line 24186 RTSC enclosure be mounted outdoors?
Yes. The Eaton B-Line 24186 RTSC screw cover enclosure carries a NEMA Type 3R rating, so it is built for outdoor use against rain, sleet and snow, and it includes a rain hood over the cover. It is not a watertight or washdown box, so keep it off surfaces subject to direct hose-down or submersion.
2) What are the box dimensions on the B-Line 24186 RTSC junction box?
It measures 24 inches high, 18 inches wide and 6 inches deep. The 6 inch depth is the number to check first if you are pulling large conductors or mounting a DIN rail or subpanel inside, since bending space is what usually runs out before wall space does.
3) Does the 24186 RTSC come with knockouts already punched?
There are 9 bottom knockouts provided. Bottom entry is the correct approach for a 3R enclosure, since holes in the top or the upper sides of the sidewalls defeat the rain-tight rating. If you need entries elsewhere, they have to be made with listed rain-tight hubs or fittings.
4) How does this B-Line enclosure attach to the wall?
Surface mounting, using embossed thru holes in the back of the box. The embossed pattern holds the enclosure off the mounting surface, which is what you want on an exterior wall so water is not trapped behind the back panel. It is not a flush or recessed box.
5) What gauge steel is the 24186 RTSC, and will it hold up on an exterior wall?
The body is 16 gauge carbon steel with a painted finish in ANSI 61 grey, the standard grey used across most industrial control gear, so it blends with adjacent panels. The box weighs 25.8 lb empty, which matters when you are picking anchors for a masonry or stud wall.
6) Does the 24186 RTSC include a back panel for mounting components?
No inner panel is part of this enclosure. It is supplied as the box, the flanged screw cover with plated screws, and the rain hood. If you plan to mount terminal blocks, relays or a DIN rail inside, order a matching back panel separately and budget for it within the 6 inch depth.
7) What part number do I order for this 24 x 18 x 6 B-Line 3R screw cover box?
Order Eaton B-Line part 24186 RTSC. The number reads directly off the size: 24 high, 18 wide, 6 deep, RTSC for the rain-tight screw cover style. It ships as a single medium single-door style enclosure.
