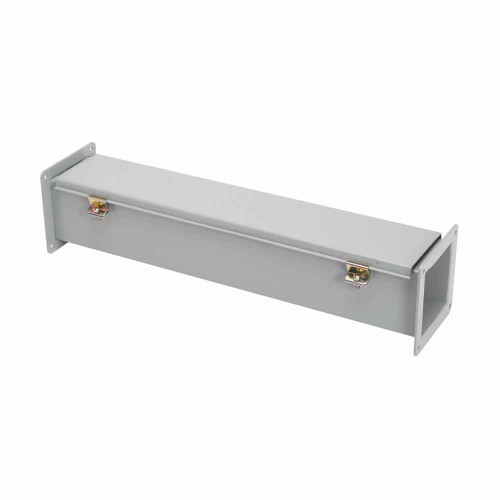

B-Line Eaton series wireway, 4...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$631.01
B-Line Eaton series wireway, 4" height, 12" length, 4" width, 12FW wireway, Wireway hanger, Hinged cover, 12, Steel, Seamless poured in-place, Hinged

B-Line Eaton series wireway, 4" height, 12" length, 4" width, 12FW wireway, Wireway hanger, Hinged cover, 12, Steel, Seamless poured in-place, Hinged

(No reviews yet) Write a Review

Model: 4412-12FW
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$631.01
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
Eaton B-Line series wireway, 4" height, 12" length, 4" width, 12FW wireway, Wireway hanger, Hinged cover, NEMA 12, Steel, Seamless poured in-place, Hinged, ANSI 61 gray, 14 gauge

Manufacturer Resources

Product Specs

Certifications:
CSA C22.2.
Closure Type:
Hinged
Finish Color:
ANSI 61 gray
Material Thickness:
14 gauge
Mounting Method:
Wireway hanger
Product Height:
4 in
Product Length Depth:
12 in
Product Weight:
5.999 lb
Product Width:
4 in
Special Features:
Cover secured with heavy-duty hinges&screw clamps
Department:
Electrical
Product Type:
12FW wireway
Product Details:
12FW wireway

B-LINE 4412-12FW – Frequently Asked Questions

1) What size raceway is the B-Line 4412-12FW, and is it a full-length section or a fitting?
It is a 4 x 4 inch cross section wireway body, 12 inches long. That 12 inch length makes it a short filler/nipple-length section rather than a full stick, useful for closing a gap between two longer runs or for jumping between an enclosure and a trough in the same 4 x 4 lay-in system.
2) Is this wireway rated for a dusty or oily industrial area, or is it only for clean indoor use?
The 4412-12FW is a NEMA 12 wireway, so it is intended for indoor use where falling dirt, dust, dripping non-corrosive liquids and coolant splash are the concern. It is not a wet-location or washdown rating, so for outdoor or hosedown areas you need a NEMA 3R or 4 trough instead.
3) What part number do I order for the 4 inch by 4 inch hinged NEMA 12 wireway in a 12 inch length?
Eaton B-Line part number 4412-12FW. The number reads out as the 44 series (4 x 4 inch), 12 inch length, F for the gasketed NEMA 12 type and W for wireway, so longer sections in the same system carry the same 44xx-FW pattern with a different length.
4) How does the cover open on the B-Line 12FW wireway, and does it stay put once closed?
Hinged cover. It swings open for lay-in wiring instead of coming off completely, and it is held shut by heavy-duty hinges with screw clamps, so nothing is loose overhead while you are pulling conductors. That hinge is what keeps the gasketed seal seated for the NEMA 12 rating.
5) What seals a NEMA 12 wireway like the 4412-12FW, and will the gasket take repeated opening?
The seal is a seamless poured-in-place gasket on the cover, not a cut-and-glued strip, so there is no joint at the corners to leak dust or coolant. Poured gaskets hold up to being opened and reclosed on a hinged cover, which is why this style is used where panels get accessed regularly.
6) Is this wireway acceptable for a job specified to Canadian standards?
The 4412-12FW is certified to CSA C22.2, so it can be used on work inspected under the Canadian Electrical Code as well as on US industrial installations.
7) Can I mix this hinged section into a run of screw-cover wireway of the same size?
Yes, as long as the run is the same 4 x 4 inch NEMA 12 gasketed system. Putting the hinged 4412-12FW at a splice point or above a terminal block gives you an access door in an otherwise screw-cover run, without losing the poured-in-place seal.
8) What gauge steel is the B-Line 4412-12FW, and what color does it ship in?
14 gauge steel, finished in ANSI 61 gray. That is the standard gray used on most industrial control panels and switchgear, so a run of this trough matches existing enclosures without field painting.
