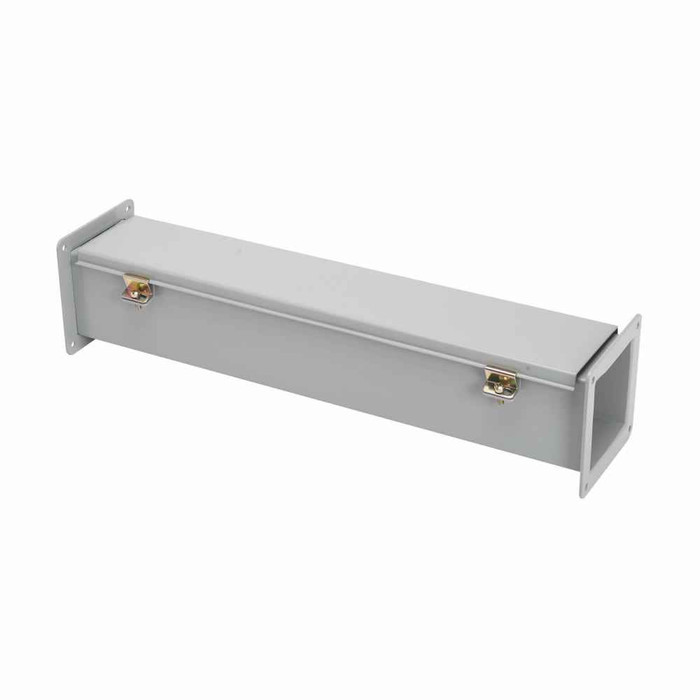

B-Line Eaton series wireway, 4...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$805.73
B-Line Eaton series wireway, 4" height, 24" length, 4" width, 12FW wireway, Wireway hanger, Hinged cover, 12, Steel, Seamless poured in-place, Hinged

B-Line Eaton series wireway, 4" height, 24" length, 4" width, 12FW wireway, Wireway hanger, Hinged cover, 12, Steel, Seamless poured in-place, Hinged

(No reviews yet) Write a Review

Model: 4424-12FW
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$805.73
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
Eaton B-Line series wireway, 4" height, 24" length, 4" width, 12FW wireway, Wireway hanger, Hinged cover, NEMA 12, Steel, Seamless poured in-place, Hinged, ANSI 61 gray, 14 gauge

Manufacturer Resources

Product Specs

Certifications:
CSA C22.2.
Closure Type:
Hinged
Finish Color:
ANSI 61 gray
Material Thickness:
14 gauge
Mounting Method:
Wireway hanger
Product Height:
4 in
Product Length Depth:
24 in
Product Weight:
10.649 lb
Product Width:
4 in
Special Features:
Cover secured with heavy-duty hinges&screw clamps
Department:
Electrical
Product Type:
12FW wireway
Product Details:
12FW wireway

B-LINE 4424-12FW – Frequently Asked Questions

1) Is the Eaton B-Line 4424-12FW wireway rated for washdown or oily environments?
It's a NEMA 12 wireway, built with a seamless poured in-place gasket so the hinged cover seals against falling dirt, dust, dripping non-corrosive liquids and oil. That covers indoor industrial areas, machine rooms and plants. It is not a NEMA 3R or 4X enclosure, so direct hose-down, outdoor rain exposure or corrosive wash chemicals call for a different rating.
2) What are the actual cross-section and length of the 4424-12FW wireway?
The trough is 4 inches high by 4 inches wide with a 24 inch length. That 4x4 cross-section is the common size for feeder taps and control-panel gutter work, and the 24 inch piece is the short length used for jogs between panels and pull points rather than long horizontal runs. It weighs 10.649 lb, so one person can set it.
3) How does the 4424-12FW wireway get supported, and is any hardware included?
It's set up for wireway hanger mounting, meaning the trough is carried on hangers off a wall, ceiling rod or strut rather than bolted flat through the back. Hangers, rod, strut and any couplings or end plates are separate items, so order supports and connectors for the run along with the trough.
4) Will the 4424-12FW connect to other 12FW wireway sections I already have?
Yes, it's part of Eaton B-Line's 12FW hinged-cover NEMA 12 line in the 4 x 4 cross-section, so it lines up with other 12FW 4x4 lengths and fittings in that family. Matching the cross-section matters more than the length: a 4x4 piece will not mate to a 6x6 run without a reducer.
5) What gauge steel and finish is this B-Line wireway, and will it match existing gray gutter on the job?
Steel, 14 gauge, finished ANSI 61 gray. ANSI 61 is the standard gray used on most industrial panels and wireway, so a 24 inch 4x4 section will read the same as the existing gutter and enclosures in a typical plant or electrical room.
6) Does this wireway carry a CSA listing for Canadian work?
The 4424-12FW is certified to CSA C22.2, which is what a Canadian inspector looks for on a metal wireway. Specify it as the Eaton B-Line 12FW series 4x4x24 hinged-cover trough.
7) Can I use this as a pull box or gutter above a panel board instead of running conduit bodies?
A 4x4x24 hinged NEMA 12 trough is commonly used exactly that way, as gutter or a wiring trough above or beside panels where conductors are spliced, tapped and redirected. The hinged cover gives full-length access for pulling, and the gasketed NEMA 12 construction keeps plant dust and dripping oil out of the splices.
