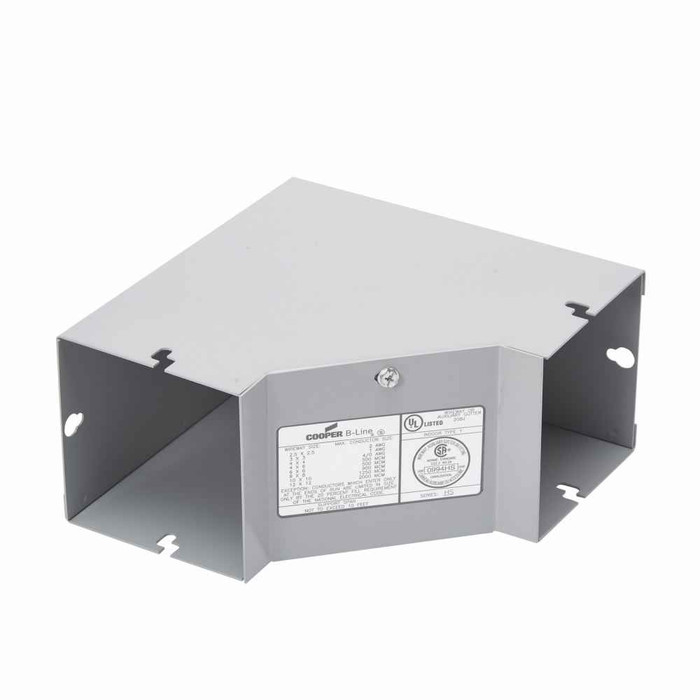

Eaton B-Line series wireway elbow fitting, Lay-in, 90° elbow, inside opening, NEMA 1, Steel, ANSI 61 gray painted, 6" X 6"
Manufacturer Resources
Product Specs
- Certifications:
- UL Listed
- Degree Of Protection:
- 1
- Finish Color:
- ANSI 61 gray painted
- Product Height:
- 6 in
- Product Length Depth:
- 6 in
- Product Weight:
- 5.489 lb
- Product Width:
- 10.208 in
- Wiring Method:
- Lay in
- Department:
- Electrical
- Product Group:
- Conduit & Fittings
- Product Subgroup:
- Elbows
- Product Type:
- 90° elbow, inside opening
- Product Details:
- 90° elbow, inside opening
- Product Material:
- Steel
- Product Length:
- 6 in
B-LINE 66 HSLIN – Frequently Asked Questions
1) Is the B-Line 66 HSLIN wireway elbow rated for outdoor or wet locations?
No. It's a NEMA 1 enclosure rating, which is indoor, dry location only, general purpose protection against incidental contact and falling dirt. For outdoor, washdown or damp areas you need NEMA 3R or NEMA 4 rated wireway and fittings throughout the run, not just at the corner.
2) What does inside opening mean on a 90 degree wireway elbow, and how do I know if I need inside or outside?
Inside opening means the elbow turns toward the short side of the corner, so the opening faces the inside of the 90 degree turn. Picture the run coming along a wall and turning back toward you: the conductors stay on the inner radius. The 66 HSLIN is the inside opening version. If your turn goes the other way, you want the outside opening elbow in the same 6x6 size. Getting this backwards is the most common ordering mistake on wireway corners, so sketch the run direction before you order.
3) Is this B-Line wireway elbow UL Listed for an inspected commercial job?
Yes, the 66 HSLIN carries a UL Listing. That's what an inspector looks for on a lay-in wireway system, and it means the fitting belongs to a listed assembly when matched with the correct 6x6 wireway body and covers.
4) Will this elbow match the gray wireway already installed in my plant?
It's steel with an ANSI 61 gray painted finish, which is the standard gray used across Eaton B-Line wireway and most industrial enclosures, so it should blend with an existing gray trough run. If your existing run is a different color or a stainless or aluminum system, the paint match and material won't line up.
5) How heavy is the 6x6 B-Line 90 degree lay-in elbow, and will one person handle it overhead?
It weighs 5.489 lb, so a single installer can hold it up while starting the connecting hardware. Overall it measures 6 x 6 x 10.208 inches, which is worth checking against tight ceiling corners and against adjacent pipe racks before you commit to the routing.
How fast can I get the B-LINE 66 HSLIN delivered?
Most orders ship the same day from our distribution partners, with quick delivery throughout the
continental
U.S.
Need it urgently? Contact Us for expedited shipping options.
Can I return it if it doesn’t work for me?
Yes—ZenSupply offers a hassle-free return policy. If the product isn’t the right fit,
reach out to our support team for a return authorization or setup a return by following our return instructions.
Does the B-LINE 66 HSLIN come with a warranty?
Absolutely. The B-LINE 66 HSLIN is backed by a manufacturer’s warranty.
For full warranty terms, check the product documentation or Contact Us.
How do I get technical support or installation help for the B-LINE 66 HSLIN?
You can call, text, or email our expert support team for fast answers. We’re here to help with
product
selection,
installation tips, and troubleshooting. Contact Us
Why buy the B-LINE 66 HSLIN from ZenSupply?
