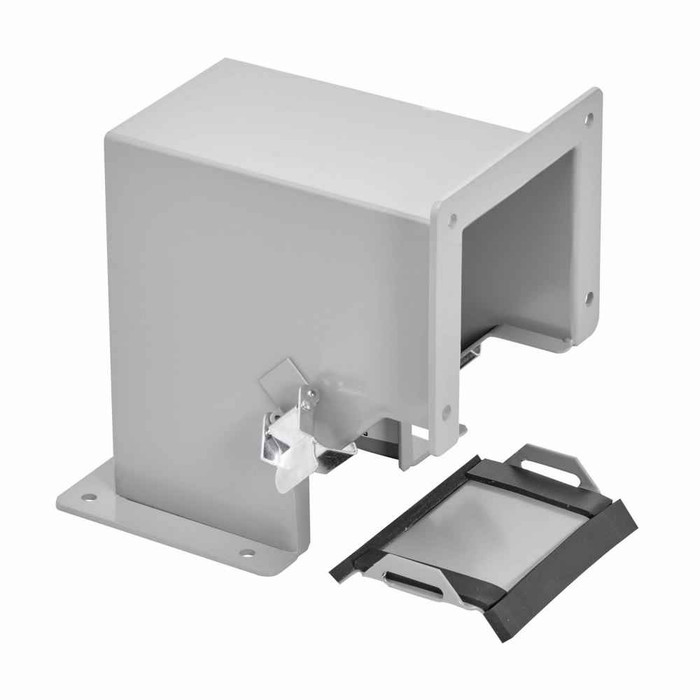

Eaton B-Line series wireway elbow fitting, Sealing plate kit, Lay-in, 90° elbow, inside opening, NEMA 12, Steel, ANSI 61 gray painted, 6" X 6"
Manufacturer Resources
Product Specs
- Certifications:
- UL Listed
- Finish Color:
- ANSI 61 gray painted
- Product Height:
- 6 in
- Product Length Depth:
- 9.44 in
- Product Weight:
- 8.519 lb
- Product Width:
- 6 in
- Special Features:
- Sealing plate kit, NEMA12
- Wiring Method:
- Lay in
- Department:
- Electrical
- Product Group:
- Conduit & Fittings
- Product Subgroup:
- Elbows
- Product Type:
- 90° elbow, inside opening
- Product Details:
- 90° elbow, inside opening
- Product Material:
- Steel
- Product Length:
- 9.44 in
B-LINE 66-12LE9B – Frequently Asked Questions
1) Will the B-Line 66-12LE9B elbow fit 6x6 wireway?
Yes. The 66-12LE9B is sized for 6 inch by 6 inch wireway, with a 6 in height and 6 in width and an overall length/depth of 9.44 in. It turns a run 90 degrees on the inside of the corner, so the elbow's opening faces the short side of the turn. If your run is a different cross section, say 4x4 or 8x8, you need the elbow built for that size, not this one.
2) Is this wireway elbow rated for a wet or washdown area?
The 66-12LE9B is a NEMA 12 fitting and ships with a sealing plate kit, so it is built for dust, falling dirt and dripping non-corrosive liquids in indoor industrial space. NEMA 12 is not a hosedown or outdoor rating. For washdown or exterior runs you want NEMA 4 or 4X wireway and fittings instead.
3) What is the difference between an inside opening and an outside opening 90 degree wireway elbow?
It comes down to which face of the corner you pull wire through. The 66-12LE9B is an inside opening elbow, meaning the removable cover is on the inside (short) radius of the 90 degree turn. An outside opening elbow puts the access on the long side. Pick based on which face is reachable once the wireway is mounted against the wall or structure. Get it backwards and the cover ends up buried against the wall.
4) Does the B-Line 66-12LE9B elbow come with the sealing plate, or is that ordered separately?
The sealing plate kit is included with the 66-12LE9B. That kit is what carries the NEMA 12 seal at the joint, so you are not chasing a separate gasket part to close the corner. Splice plates and hardware to join the elbow to the adjacent wireway sections are a separate line item on most jobs.
5) Can I lay conductors into this elbow instead of pulling them through?
Yes, it is a lay-in fitting. The cover comes off the inside face of the 90 so conductors drop straight into the corner rather than being fished around it. That is the reason to use wireway over conduit on a heavily populated feeder or control run, and it is a real time saver when you are adding circuits to an existing run later.
6) Is the B-Line 66-12LE9B UL Listed?
Yes, the 66-12LE9B wireway elbow is UL Listed. That matters on an inspected commercial or industrial job where the whole wireway system, fittings included, has to be a listed assembly.
7) What material and finish is this 6x6 wireway elbow, and will it match my existing enclosures?
Steel, finished in ANSI 61 gray paint. ANSI 61 gray is the standard finish on most industrial control enclosures and wireway, so the corner will match adjacent panels and straight sections in the same finish. Being painted steel, it is for dry indoor use, not corrosive or coastal exposure where stainless or coated aluminum belongs.
