B-Line Eaton series wiring tro...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$6,676.49

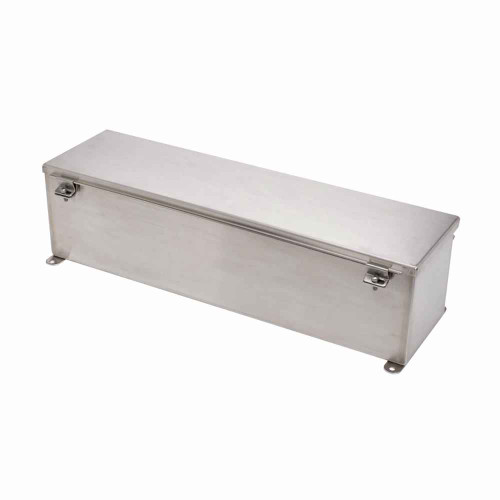

B-Line Eaton series wiring trough, 6" height, 72" length, 6" width, 4XSWT wiring trough, Welded external mounting feet, Hinged cover, 4X, 304 stainle

B-Line Eaton series wiring trough, 6" height, 72" length, 6" width, 4XSWT wiring trough, Welded external mounting feet, Hinged cover, 4X, 304 stainle

(No reviews yet) Write a Review

Model: 6672-4XSWT
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$6,676.49
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
Eaton B-Line series wiring trough, 6" height, 72" length, 6" width, 4XSWT wiring trough, Welded external mounting feet, Hinged cover, NEMA 4X, 304 stainless steel, Seamless poured in-place, Hinged, #4 brushed finish, 14 gauge

Manufacturer Resources

Product Specs

Certifications:
CSA C22.2.
Closure Type:
Hinged
Finish Color:
#4 brushed
Material Thickness:
14 gauge
Product Height:
6 in
Product Length Depth:
72 in
Product Weight:
44.541 lb
Product Width:
6 in
Special Features:
Cover is held by semi-hinges,screw clamps,s.s hardware
Department:
Electrical
Product Type:
4XSWT wiring trough
Product Details:
4XSWT wiring trough
Product Length:
72 in

B-LINE 6672-4XSWT – Frequently Asked Questions

1) What are the actual cross-section dimensions of the B-Line 6672-4XSWT wiring trough?
The 6672-4XSWT is a 6 x 6 inch trough, 72 inches long. That gives you a 6 inch square wireway body in a 6 foot stick, which is the standard run length for tying multiple enclosures together on a wall. Model number reads the same way: 66 for the 6 x 6 section, 72 for the length.
2) Is this wiring trough rated for washdown or outdoor areas?
It is a NEMA 4X trough in 304 stainless steel with a seamless poured in-place gasket, which is the construction used for hosedown, food and beverage, and wet or corrosive locations. The 4X rating is what separates it from a plain painted steel wireway that is only good for dry indoor use.
3) Does this stainless wireway mount straight to the wall, or do I need separate brackets?
Welded external mounting feet come on the body, so it lands on wall or unistrut without buying a bracket kit. The feet are external, which keeps the mounting fasteners outside the wiring space and preserves the 4X seal. You still supply your own anchors for the substrate.
4) Does the trough come with knockouts for conduit?
No. It is a seamless 4X stainless body, so there are no factory knockouts to break the enclosure rating. You punch your own openings where the conduit lands and seal them with 4X rated hubs or fittings to keep the washdown rating intact.
5) How does the cover open and stay shut on the B-Line 4XSWT trough?
Hinged cover. It is held by semi-hinges with screw clamps and stainless steel hardware, so the cover swings open for pulling conductors and clamps back down against the gasket instead of you handling a loose lid and a handful of screws on a ladder.
6) What gauge is the steel, and how much does a 72 inch section weigh for handling?
14 gauge 304 stainless, and the 6 x 6 x 72 section runs 44.541 lb. That is a two-man lift at height, or one man with a lift, and it is worth checking your wall anchors against that load plus the conductor fill before you hang a continuous run of them.
7) Will this pass a Canadian electrical inspection?
The 6672-4XSWT carries CSA C22.2 certification, which is the Canadian standard series inspectors look for on wireway and enclosure products.
8) What does the #4 brushed finish mean on a stainless wireway?
It is the standard brushed satin mill finish on the 304 stainless body, the same look you see on commercial kitchen and processing equipment. It is cosmetic rather than a coating, so there is nothing to chip or repaint, and it wipes down with the rest of the room.
