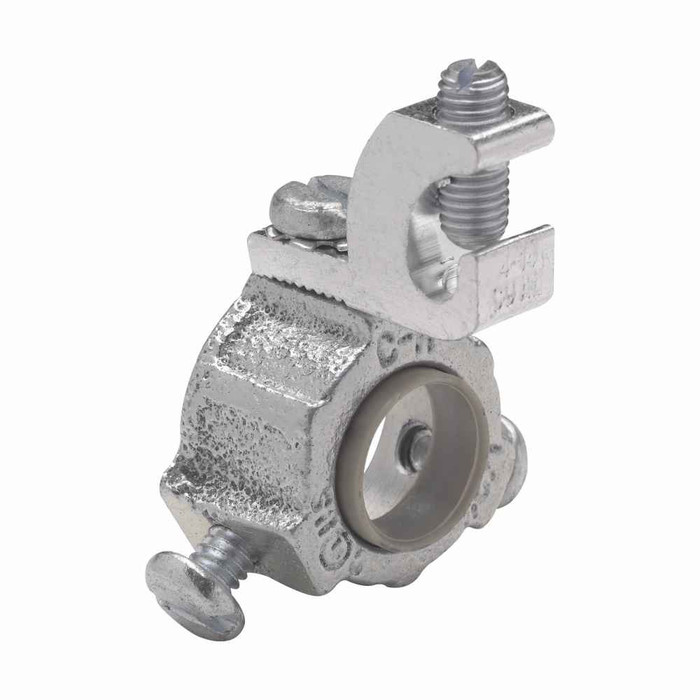

Crouse-Hinds Insulated Threadless Grounding Bushing for Rigid/IMC Conduit with Aluminum Lug

Crouse-Hinds Insulated Threadless Grounding Bushing for Rigid/IMC Conduit with Aluminum Lug

Professional grounding solution for electrical conduit systems

The Crouse-Hinds insulated threadless grounding bushing provides reliable electrical grounding for rigid and IMC conduit installations. Constructed with durable malleable iron and featuring an aluminum grounding lug, this professional-grade bushing ensures secure connections in ordinary and non-hazardous locations while meeting NEC/CEC standards for electrical safety and code compliance.

Professional Features & Benefits

• Threadless Design: Enables quick installation without threading requirements, reducing installation time and labor costs.
• Malleable Iron Construction: Provides exceptional durability and corrosion resistance for long-term reliability in electrical systems.
• Aluminum Grounding Lug: Delivers excellent conductivity and corrosion resistance for reliable grounding connections.
• 105°C Temperature Rating: Handles elevated operating temperatures safely, ensuring performance in demanding electrical environments.
• NEC/CEC Compliance: Meets National Electrical Code and Canadian Electrical Code standards for professional electrical installations.
• Rigid/IMC Compatibility: Specifically designed for use with rigid and intermediate metallic conduit systems.
• Insulated Design: Provides electrical isolation while maintaining proper grounding functionality for enhanced safety.

Technical Specifications

• Area Classification: Ordinary/Non-Hazardous Locations
• Conduit Type: Rigid/IMC
• Lug Material: Aluminum
• Product Material: Malleable iron
• Standards Type: NEC/CEC
• Temperature Rating: 105°C
• Thread: Threadless

Installation & Operation

1. Mount the unit in a suitable location with appropriate clearance and access for connections and service.
2. Connect utility and load conductors following applicable guidelines and the manufacturer's instructions.
3. Wire generator or power input according to the provided voltage/phase specifications and compatible capacity.
4. Configure any available load management or control features as supported by the provided specifications.
5. Test automatic transfer or operational functionality and verify proper performance before placing into service.
6. Complete final inspection and follow ongoing maintenance practices appropriate to the product category.

Professional Applications

• Commercial electrical installations requiring reliable conduit grounding
• Industrial facilities with rigid and IMC conduit systems
• Institutional buildings and educational facilities
• Healthcare facilities and medical centers
• Office buildings and professional complexes
• Retail establishments and shopping centers
• Municipal and government facilities

Why Choose Crouse-Hinds Quality?

Crouse-Hinds delivers proven reliability through NEC/CEC compliant design and robust malleable iron construction rated for 105°C operation. The professional-grade materials and threadless installation design ensure long-term performance and code compliance in demanding electrical applications.
