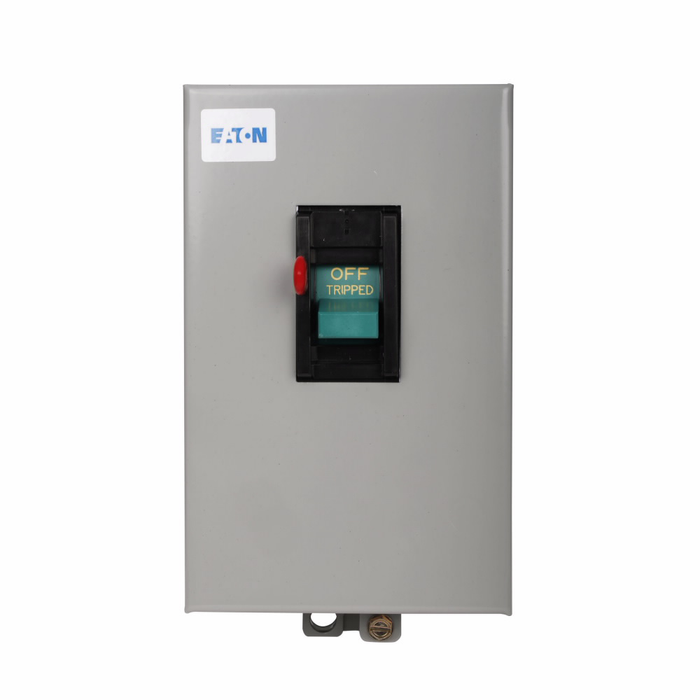

Eaton NEMA Motor Starter, Type B100 Non-Reversing

Eaton NEMA Motor Starter, Type B100 Non-Reversing

(No reviews yet) Write a Review

Model: B100S0C

In Stock (leaves warehouse same day if ordered before 3pm ET)

$1,215.01
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Eaton NEMA Motor Starter, Type B100 Non-Reversing

The Eaton NEMA Motor Starter is a Type B100 non-reversing starter engineered for polyphase motor control in commercial and industrial applications. This three-pole design is built on the NEMA Size 0 platform and is available with coil voltages such as 208V and overload ranges such as 1-5A, giving electricians flexibility to match the starter to the specific motor circuit. Backed by CSA Certification and Eaton's 1 year warranty, this starter delivers dependable, code-compliant motor control performance for polyphase motor installations.

Key Features

  • Configuration: Three-pole design built for polyphase motor control applications.
  • Type: Type B100 non-reversing starter for single-direction motor control circuits.
  • Size: NEMA Size 0 platform, a standard footprint for light-duty polyphase motor starting.
  • Coil Voltage: Available with 208V coil for compatibility with common control circuit voltages.
  • Overload Range: Adjustable overload range of 1-5 A to match motor full-load current requirements.
  • Dimensions: Compact footprint with 1.77 in product width, 5.5 in length/depth, and 6.3 in height for straightforward panel and enclosure mounting.
  • Catalog Note: Starter does not include heaters; overload heater elements must be ordered separately to complete the assembly.
  • Application: Rated for use with polyphase motors in industrial and commercial motor control circuits.

Certifications & Compliance

  • CSA Certified

Technical Specifications

  • Warranty: 1 year
  • Product Type: Motor Starter
  • Department: Electrical
  • Number Of Poles: Three-pole
  • Product Width: 1.77 in
  • Product Length/Depth: 5.5 in
  • Product Height: 6.3 in
  • Type: Type B100 non-reversing
  • Size: NEMA size 0
  • Used with: For Polyphase Motors
  • Certifications: CSA Certified

Typical Applications

  • Polyphase Motor Starting and Control Circuits
  • Commercial and Industrial Electrical Installations
  • Motor Control Centers and Control Panels
  • Panelboard and Load Center Motor Circuit Wiring
  • Renovation and New Construction Motor Control Projects

Why Eaton?

Eaton motor starters are built for reliable, code-compliant performance in demanding polyphase motor control applications. With CSA Certification, a durable three-pole Type B100 non-reversing design, and a 1 year warranty, this NEMA Size 0 starter gives electrical professionals a dependable foundation for motor control circuits. Because the starter ships without heaters, contractors can pair it with the correct heater elements for the exact motor full-load current, ensuring an accurately sized, protected, and long-lasting motor control installation.

Manufacturer Resources

Product Specs

Number Of Poles:
Three-pole
Product Width:
1.77 in
Warranty:
1 year
Catalog Notes:
Starter does not include heaters.
Used with:
For Polyphase Motors
Product Size:
NEMA size 0
Product Length/Depth:
5.5 in
Product Height:
6.3 in
Product Type:
Motor Starter
Certifications:
CSA Certified
Department:
Electrical
Configuration:
Three-Pole
Series:
Type B100 Non-Reversing
Voltage Rating:
208V
Amperage Rating:
1-5A
Listing:
CSA Certified
Product Group:
Starters & Contactors

Eaton B100S0C – Frequently Asked Questions

1) Does the Eaton B100S0C motor starter come with overload heaters?
No. The B100S0C ships without heaters, so the overload heater elements have to be ordered separately and sized to the motor's full load current before the starter is complete. Budget that as a second line item on the order, not an accessory you can skip.
2) What coil voltage is the Eaton Type B100 NEMA Size 0 starter?
The coil is rated 208V, so your control circuit has to supply 208 volts to pull the contactor in. If the panel's control transformer puts out 120V or 240V, this starter is the wrong coil and you need a different coil voltage version.
3) What size motor will a NEMA Size 0 B100 starter with a 1-5A overload handle?
The overload range on this one is 1 to 5 amps, so it suits small polyphase motors whose full load current falls inside that window. If your motor nameplate FLA is above 5 amps, this overload range won't protect it and you need a higher range or a larger NEMA size.
4) Can the Eaton B100 starter run a motor in both directions?
No. It is a Type B100 non-reversing starter, single direction only. Reversing a three phase motor requires two interlocked contactors, so for forward and reverse duty you need a reversing starter instead of this one.
5) Will this Eaton starter fit inside my existing control panel?
Its footprint is 1.77 in wide, 5.5 in deep and 6.3 in high, which is narrow enough to sit alongside other devices on a panel back plate. Lay out 6.3 inches of vertical clearance plus wiring gutter space when you plan the enclosure.
6) Is the Eaton B100 Size 0 starter single phase or three phase?
Three-pole, intended for polyphase motors, so it switches all three legs of a three phase feed. A single phase motor only needs two poles switched, so while the device is oversized for that job the three-pole B100 is built around three phase motor control.
7) Is the Eaton B100S0C starter approved for use in Canada?
It carries CSA Certification, which is the listing Canadian inspectors look for on motor control equipment. That makes it acceptable for Canadian commercial and industrial panel work.
8) What exactly do I order to get this Eaton starter, and what part number is it?
The starter itself is Eaton part number B100S0C: a NEMA Size 0, three-pole, non-reversing starter with a 208V coil and 1-5A overload range. Add the correct heater elements as a separate line, chosen from the motor's nameplate full load amps.
