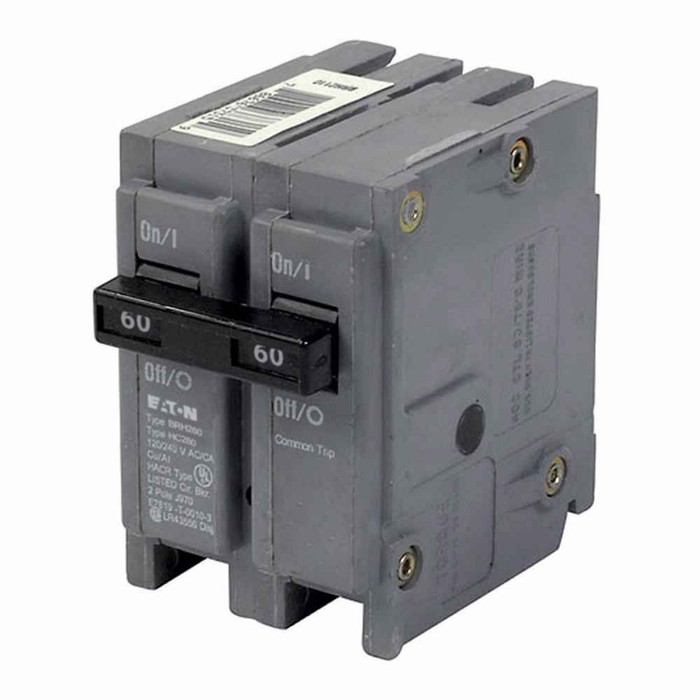

Eaton Type BR Plug-On Circuit Breaker 22 kAIC 120/240V Two-Pole Common Trip

Eaton Type BR Plug-On Circuit Breaker 22 kAIC 120/240V Two-Pole Common Trip

Professional electrical protection with reliable plug-on installation

The Eaton Type BR circuit breaker delivers dependable electrical protection with 22 kAIC interrupt rating and 120/240V voltage compatibility. This two-pole common trip breaker features convenient plug-on mounting for Type BR loadcenters, providing professional-grade circuit protection with UL 490 certification for residential and commercial applications.

Professional Features & Benefits

• 22 kAIC Interrupt Rating: Provides robust fault current interruption capability for enhanced electrical system protection and safety.
• Two-Pole Common Trip Design: Ensures simultaneous disconnection of both poles for balanced load protection and code compliance.
• Plug-On Mounting Method: Enables quick and secure installation without additional hardware or complex wiring connections.
• 120/240V Voltage Rating: Compatible with standard residential and light commercial electrical systems for versatile applications.
• UL 490 Certification: Meets rigorous safety and performance standards for reliable electrical protection and code compliance.
• Type BR Compatibility: Designed specifically for use with Type BR loadcenters ensuring proper fit and optimal performance.

Technical Specifications

• Catalog Notes: 10-150A. single-, two- and three-pole, selected amperageavailable in switching duty, HACR, shunt tr
• Certifications: UL 490
• Circuit Breaker Type: BR
• Compliances: Federal Specifications Classification W-C376
• Interrupt Rating: 22 kAIC
• Item Quantity: 28
• Main Circuit Breaker: BRH
• Mounting Method: Plug-on
• Number Of Poles: Two-pole
• Product Details: Type BR 1-Inch plug-on circuit breaker
• Trip Type: Common breaker trip
• Used With: Type BR Loadcenters
• Voltage Rating: 120/240 V

Installation & Operation

1. Mount the unit in a suitable location with appropriate clearance and access for connections and service.
2. Connect utility and load conductors following applicable guidelines and the manufacturer's instructions.
3. Wire generator or power input according to the provided voltage/phase specifications and compatible capacity.
4. Configure any available load management or control features as supported by the provided specifications.
5. Test automatic transfer or operational functionality and verify proper performance before placing into service.
6. Complete final inspection and follow ongoing maintenance practices appropriate to the product category.

Professional Applications

• Residential electrical panels and distribution systems
• Commercial building electrical protection
• Light industrial facility circuit protection
• Multi-unit residential properties
• Professional office buildings
• Retail and service establishments
• Educational and institutional facilities

Why Choose Eaton Quality?

Eaton circuit breakers provide reliable electrical protection with UL 490 certification and Federal Specifications Classification W-C376 compliance. The robust 22 kAIC interrupt rating and common trip design ensure dependable performance and safety in demanding electrical applications, backed by Eaton's commitment to professional-grade electrical components.
