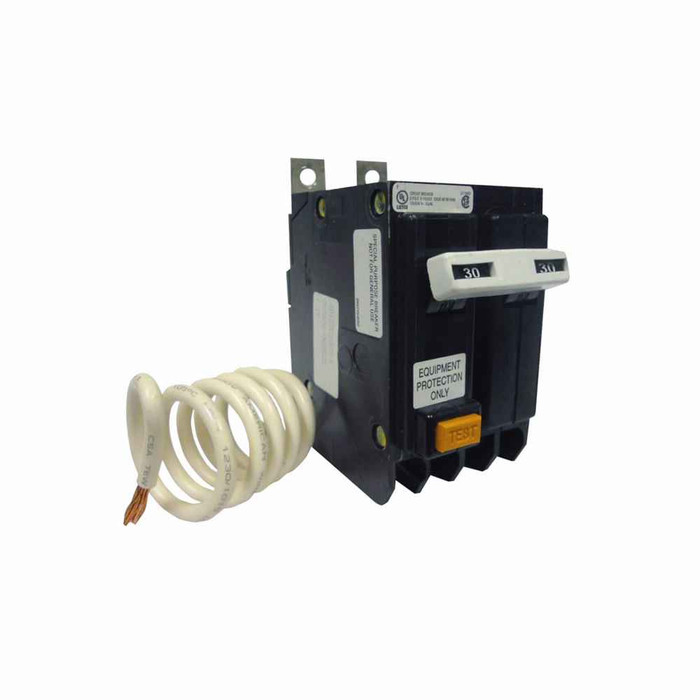

Eaton Quicklag Ground Fault Equipment Braskers 30MA Sensitivity

Eaton Quicklag Ground Fault Equipment Breaker 30mA Sensitivity HACR Rated

(No reviews yet) Write a Review

Model: QBHGFEP2030
$1,000.00
$278.94

In Stock (leaves warehouse same day if ordered before 3pm ET)

$1,000.00
$278.94
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Eaton Quicklag Ground Fault Equipment Breaker 30mA Sensitivity HACR Rated

Professional Ground Fault Protection for Equipment Applications

The Eaton Quicklag Ground Fault Equipment Breaker delivers reliable 30mA sensitivity ground fault protection with HACR rating for professional electrical installations. This bolt-on breaker provides essential equipment protection with non-interchangeable trip functionality and accommodates wire sizes from #14-4 AWG for versatile installation requirements.

Professional Features & Benefits

  • 30mA Sensitivity: Provides precise ground fault detection for equipment protection applications requiring enhanced safety monitoring.
  • HACR Rated: Certified for heating, air conditioning, and refrigeration equipment applications ensuring reliable performance in demanding environments.
  • Bolt-on Connection: Secure mounting method provides reliable electrical connection and simplified installation in compatible panels.
  • Non-Interchangeable Trip: Fixed trip configuration ensures consistent protection parameters and prevents unauthorized modifications.
  • Wire Size Compatibility: Accommodates #14-4 AWG conductors providing flexibility for various circuit requirements and installation scenarios.
  • Quicklag Design: Eaton's proven breaker technology delivers dependable overcurrent and ground fault protection for professional applications.

Technical Specifications

  • Catalog Notes: HACR rated
  • Connection: Bolt-on
  • Mounting Method: Bolt-on
  • Notes: HACR rated
  • Trip Type: Non-Interchangeable
  • Wire Size: #14-4 AWG

Professional Applications

  • HVAC Equipment Protection
  • Commercial Refrigeration Systems
  • Industrial Equipment Circuits
  • Professional Kitchen Equipment
  • Medical Equipment Applications
  • Critical Equipment Ground Fault Protection
  • Facility Equipment Safety Systems

Why Choose Eaton Quality?

Eaton ground fault equipment breakers provide professional-grade protection with HACR certification for demanding applications. The bolt-on design ensures secure installation while the non-interchangeable trip configuration maintains consistent protection parameters for reliable long-term performance.

Manufacturer Resources

Spec Sheet

Product Specs

Catalog Notes:
HACR rated
Connection:
Bolt-on
Mounting Method:
Bolt-on
Notes:
HACR rated
Trip Type:
Non-Interchangeable
Wire Size:
#14-4 AWG
Department:
Electrical
Product Group:
Circuit Protection
Product Type:
GFCI/AFCI Circuit Breaker
Product Subgroup:
Circuit Breakers

Eaton QBHGFEP2030 – Frequently Asked Questions

1) Does a 30mA ground fault equipment breaker protect people, or just equipment?
Equipment, not people. The Eaton Quicklag ground fault breaker trips at 30mA sensitivity, which is ground fault equipment protection (GFPE) for things like heat trace, HVAC condensing units, and refrigeration circuits. Personnel protection needs a 5mA GFCI breaker. If the code requirement on your drawing calls for personnel GFCI protection at a receptacle, this 30mA unit will not satisfy it.
2) Will this Eaton Quicklag breaker snap into my plug-on load center?
No. It is a bolt-on breaker, so it fastens to the panel bus with screws and needs a panel with bolt-on provisions. Plug-on stab-in load centers will not take it. Confirm your panelboard interior is bolt-on before ordering.
3) What amperage and pole combinations does the Eaton ground fault equipment breaker come in?
Amperages run 15A, 20A, 25A, 30A, 40A and 50A, in 1-pole or 2-pole. Voltage is either 120 Vac or 120/240 Vac, and interrupting rating is 10 kAIC or 22 kAIC. A 1-pole unit is a 120 Vac single circuit; 2-pole covers 240 V equipment loads such as a condensing unit or a commercial rooftop package.
4) Do I need the 10 kAIC or the 22 kAIC version?
That comes off the available fault current at the panel, not off the load. Your short circuit study or the utility transformer data decides it: the breaker's interrupting rating has to equal or exceed the available fault current at that point. Both 10 kAIC and 22 kAIC are offered, so if the panel label calls for 22k series rating, order the 22 kAIC unit. A 10 kAIC breaker on a bus with higher available fault current is a code violation.
5) Is this breaker suitable for an HVAC or refrigeration circuit?
Yes, it carries the HACR rating, so it can serve as branch circuit protection for heating, air conditioning and refrigeration equipment where the nameplate calls for an HACR type breaker. Combined with 30mA ground fault equipment protection, it is a common choice for rooftop units, walk-in coolers and commercial kitchen equipment circuits.
6) What size wire can I land on this breaker?
The lugs take #14 through #4 AWG copper or aluminum conductors, which covers the full 15A to 50A range offered without needing a separate lug kit.
7) Can I change the trip rating on this breaker later if the load changes?
No. The trip unit is non-interchangeable, meaning the ampere rating is fixed at the factory and there is no field-adjustable or swappable trip element. If the equipment is upsized, you replace the breaker with the correct amperage unit.
8) Will a 2-pole version work on a 208V three-phase panel?
The voltage options are 120 Vac and 120/240 Vac. A 120/240 Vac 2-pole is built for single phase line to line at 240 V. If your panel is 208Y/120 three-phase and the equipment nameplate is 208 V, confirm the breaker voltage marking matches your system before ordering, since a 120/240 Vac marked device is not a slash-rated 120/208 device.
9) What do I have to specify when ordering this Eaton ground fault breaker?
Four things: amperage (15, 20, 25, 30, 40 or 50), pole count (1 or 2), voltage (120 Vac or 120/240 Vac), and interrupting rating (10 kAIC or 22 kAIC). Sensitivity is fixed at 30mA and the mounting is always bolt-on, so those are not choices.
