Emtek Emtek 1113 Multi Point Lock Trim (Door Config #1) - Sandcast Bronze Plates, Arched Style (1.5" x 11"), Non-Keyed American Style Thumbturn Inside EMTEK-1113

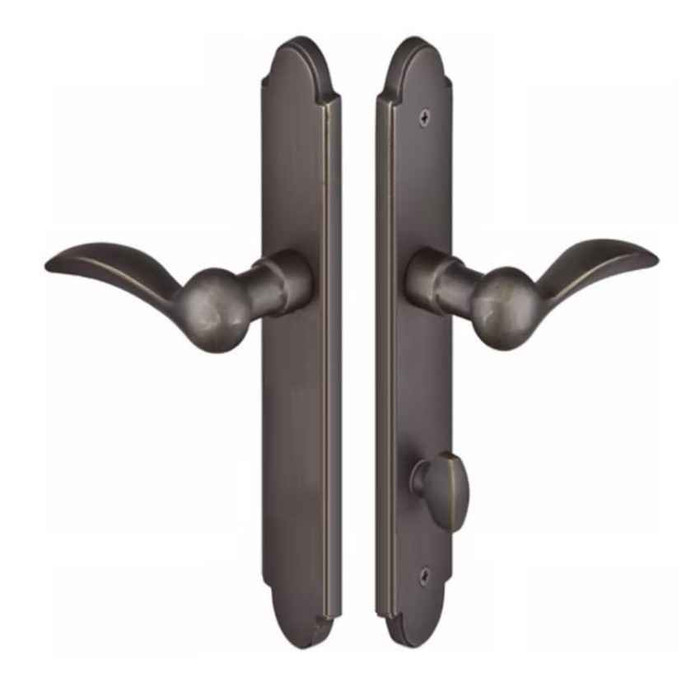

Emtek 1113 Multi Point Lock Trim (Door Config #1) - Sandcast Bronze Plates, Arched Style (1.5" x 11"), Non-Keyed American Style Thumbturn Inside

(No reviews yet) Write a Review

Model: 1113-FB
From the Sandcast Bronze Collection
$424.00
$339.20
Selected Finish is
Selected Lever Style is
Selected Handing is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$424.00
$339.20
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like



Specifications:

  • Door Configuration: Configuration #1
  • Plate Size: 1.5" x 11"
  • Material: Sandcast Bronze
  • Plate Style: Arched
  • Keyed: No
  • Function: Non-Keyed – Thumbturn Inside
  • Product Type: Multi Point Lock Trim



Emtek 1113 Multi Point Lock Trim (Door Config #1) - Sandcast Bronze Plates, Arched Style (1.5" x 11"), Non-Keyed American Style Thumbturn Inside


  • Can be ordered with any Sandcast Bronze Levers
  • Swinging Patio Door Hardware. Set includes Plates, Handles
  • Multi Point Mortise Lock Box not included. Trims Only
  • Each Multi Point Lock Trim now includes the Spring Assist function which returns the lever to the neutral position and eliminates sagging handles.
Manufacturer Resources

Product Specs

Subcategory:
Multi Point Lock Trim
Product Group:
Mechanical Locks
Commercial/Residential:
Residential
Product Type:
Multi Point Lock Trim
Product Subgroup:
Multi Point Lock Trim
Collection:
Sandcast Bronze
Cylinder Position:
Below Handle
Door Configuration:
#1
Electronic:
No
Keyed:
No
Lock Type:
Multi Point Trim
Ref. Door Manufacturer(s):
Atrium, G-U, KML by Andersen, Andersen, Marvin Integrity, Paddock Lockmaster, Superior
Series:
Arched
Theme:
Rustic Living
MAP Policy:
Yes
Product Model:
1113
(CTC) Center-to-Center:
3-5/8"
Product Function:
Non-Keyed American Style Thumbturn Inside
Product Size:
1-1/2" x 11"
Cylinder Classification:
American
Product Style:
Arched
Product Material:
Bronze
Product Category:
Mechanical Locks
Product Substrate:
Bronze
Department:
Door Hardware

Emtek 1113-FB – Frequently Asked Questions

1) Does the Emtek 1113 multi point trim include the multi point mortise lock body?
No. The Emtek 1113 is trim only: plates and handles. The multi point mortise lock box has to be sourced separately, so if you are replacing worn handles on an existing multi point patio door and the gearbox still works, this is the right kind of order. If the gearbox itself has failed, you need a lock body too.
2) What center-to-center spacing does the Emtek 1113 trim use, and how do I know it matches my door?
The handle-to-cylinder center-to-center is 3-5/8 inches, with the cylinder position below the handle and an American style cylinder prep. Measure from the center of your existing lever spindle to the center of the cylinder hole in the door; if it comes out at 3-5/8 inches with the cylinder below the lever, the plate lines up. Emtek calls this Door Configuration #1.
3) Which patio door brands does this Emtek multi point trim reference for fit?
Emtek references this multi point trim against Atrium, G-U, KML by Andersen, Andersen, Marvin Integrity, Paddock Lockmaster and Superior doors. Those are the systems the Configuration #1 layout is built around. Confirm the 3-5/8 inch center-to-center and the cylinder-below-handle arrangement on your own door before ordering, since a single manufacturer can use more than one prep.
4) Is the Emtek 1113 keyed, and what operates it from inside?
Non-keyed. The 1113 uses an American style thumbturn on the inside plate instead of an inside cylinder, so you throw and retract the multi point locking from the interior by hand. The exterior plate is prepped for an American cylinder below the handle, so if you want key operation from outside you supply that cylinder with the lock body.
5) What do I have to specify when ordering the Emtek 1113 trim?
Four things. Handing (right or left hand), lever style, finish, and your door thickness. Levers are Aurora, Bryce, Cimarron, Cody, Durango, Lariat, Mariposa, Montrose, Teton and Yuma. Finishes are Flat Black Bronze (FB), Medium Bronze (MB) and Tumbled White Bronze (TWB). Handing and lever choice are both required, so an order without them cannot be built.
6) How big are the plates on the Emtek 1113 arched trim?
Each plate measures 1-1/2 x 11 inches in the Arched style. That is a narrow plate, so it suits the slim stile of a swinging patio door. Lay the dimension against your stile and against the existing plate footprint, since a narrower replacement will leave the old screw holes or finish shadow exposed.
7) Will the Emtek 1113 handles sag over time like older multi point trim?
Emtek now builds the Spring Assist function into this multi point trim. It returns the lever to the neutral horizontal position after use, which is what prevents the drooping handle you see on older patio door sets. For a property manager swapping sagging levers across several units, that is the functional difference from the previous generation.
8) Is this Emtek multi point trim rated for commercial openings?
It is a residential product. Emtek lists the sandcast bronze multi point trim as residential swinging patio door hardware, so for a high-traffic commercial entrance you want a Grade 1 commercial mortise or exit device platform instead. It works well for single-family, custom residential, and multi-family patio and terrace doors.
9) Can I mix a different Emtek lever with the 1113 sandcast bronze plates?
Yes, within the sandcast bronze family. The 1113 plates take any Sandcast Bronze lever, and the ten offered here are Aurora, Bryce, Cimarron, Cody, Durango, Lariat, Mariposa, Montrose, Teton and Yuma. That is how you match the patio door to sandcast bronze levers already running on the interior doors of the house.
10) What is the Emtek 1113 made of, and will the finish hold up outdoors?
Plates and levers are sandcast bronze, solid bronze substrate rather than plated zinc. The three finishes, Flat Black Bronze, Medium Bronze and Tumbled White Bronze, are living finishes on bronze that darken and develop patina with handling and weather rather than flaking. If you need a stable, uniform look across a row of identical units, expect the exposed doors to age faster than the sheltered ones.
