Emtek 1513 Multi Point Lock Tr...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$424.00
$339.20

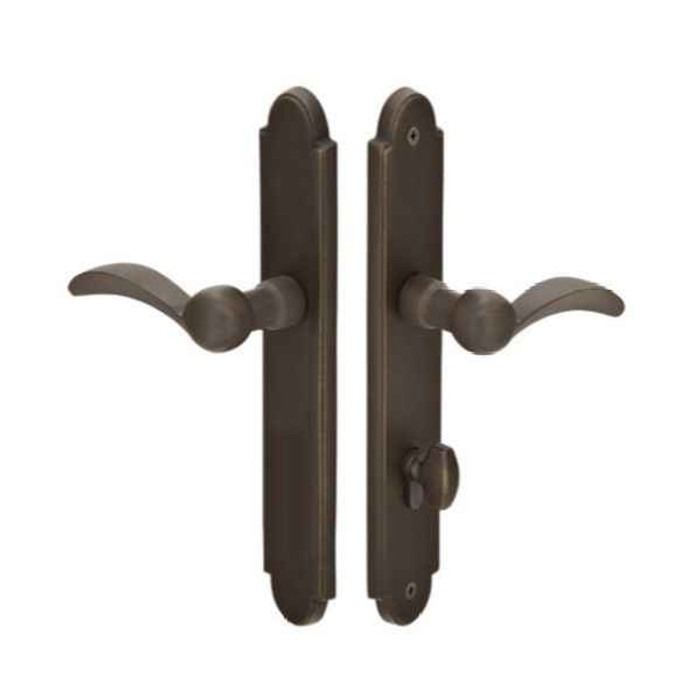

Emtek Emtek 1513 Multi Point Lock Trim (Door Config #5) - Sandcast Bronze Plates, Arched Style (1.5" x 11"), Non-Keyed American Style Thumbturn Inside EMTEK-1513

Emtek 1513 Multi Point Lock Trim (Door Config #5) - Sandcast Bronze Plates, Arched Style (1.5" x 11"), Non-Keyed American Style Thumbturn Inside

(No reviews yet) Write a Review

Model: 1513-FB
From the Sandcast Bronze Collection
$424.00
$339.20
Selected Finish is
Selected Lever Style is
Selected Handing is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$424.00
$339.20
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like



Specifications:

  • Door Configuration: Configuration #5
  • Plate Size: 1.5" x 11"
  • Material: Sandcast Bronze
  • Plate Style: Arched
  • Keyed: No
  • Function: Non-Keyed – Thumbturn Inside
  • Product Type: Multi Point Lock Trim



Emtek 1513 Multi Point Lock Trim (Door Config #5) - Sandcast Bronze Plates, Arched Style (1.5" x 11"), Non-Keyed American Style Thumbturn Inside

  • Can be ordered with any Sandcast Bronze Levers
  • Swinging Patio Door Hardware. Set includes Plates, Handles
  • Multi Point Mortise Lock Box not included. Trims Only
  • Each Multi Point Lock Trim now includes the Spring Assist function which returns the lever to the neutral position and eliminates sagging handles.
Manufacturer Resources

Product Specs

Subcategory:
Multi Point Lock Trim
Product Group:
Mechanical Locks
Commercial/Residential:
Residential
Product Type:
Multi Point Lock Trim
Product Subgroup:
Multi Point Lock Trim
Collection:
Sandcast Bronze
Cylinder Position:
Below Handle
Door Configuration:
#5
Electronic:
No
Keyed:
No
Lock Type:
Multi Point Trim
Ref. Door Manufacturer(s):
Crestline, Hoppe, Hurd, KFV, Kolbe & Kolbe, Lincoln, Loewen, Paddock Lockmaster, Peachtree, Semco, Sierra, Oknoplast, Pacific, Signature, Simpson, Therma-Tru, Vetter, Willmar, Windsor, Weathershield
Series:
Arched
Theme:
Rustic Living
MAP Policy:
Yes
Product Model:
1513
(CTC) Center-to-Center:
3-5/8"
Product Function:
Non-Keyed American Style Thumbturn Inside
Product Size:
1-1/2" x 11"
Cylinder Classification:
Euro Profile
Product Style:
Arched
Product Material:
Bronze
Product Category:
Mechanical Locks
Product Substrate:
Bronze
Department:
Door Hardware

Emtek 1513-FB – Frequently Asked Questions

1) Does the Emtek 1513 multi point trim include the multi point mortise lock body?
No. The Emtek 1513 is trim only: plates and handles. The multi point mortise lock box is a separate purchase, so you need the lock body already in the door or ordered alongside it. Order the lever style and handing with the trim, since both are required selections.
2) What is Door Configuration #5 on an Emtek multi point trim, and how do I know my door matches?
Configuration #5 on the Emtek 1513 means a Euro profile cylinder prep positioned below the handle, with a 3-5/8 inch center-to-center between the handle spindle and the cylinder. Measure that dimension on your existing door prep. If your cylinder sits above the handle, or the spacing is different, you need a different configuration.
3) Will this Emtek trim fit a Therma-Tru or Hoppe multi point patio door?
Those are among the door manufacturers Emtek references for its multi point trim, along with Crestline, Hurd, KFV, Kolbe & Kolbe, Lincoln, Loewen, Paddock Lockmaster, Peachtree, Semco, Sierra, Oknoplast, Pacific, Signature, Simpson, Vetter, Willmar, Windsor and Weathershield. Fit still comes down to the prep: the 1513 is Configuration #5, Euro cylinder below the handle at 3-5/8 inch center-to-center.
4) Is the Emtek 1513 keyed on the outside?
No. The 1513 is the non-keyed version, with an American style thumbturn on the interior. It operates the multi point lock from inside without a key cylinder supplied. If you need key access from the exterior on a patio door, choose the keyed variant of this trim instead.
5) Do I have to specify handing for the Emtek 1513 multi point trim?
Yes, handing is a required choice: right hand or left hand. Stand outside the door; if the hinges are on your right it is right hand. Getting this wrong on a multi point trim means the thumbturn and lever sit backwards on the door.
6) What lever styles can I put on the Emtek 1513 sandcast bronze trim?
Ten sandcast bronze levers pair with the 1513 plates: Aurora, Bryce, Cimarron, Cody, Durango, Lariat, Mariposa, Montrose, Teton and Yuma. The lever is a required selection with the order, so pick it when you order rather than after.
7) What size are the plates on the Emtek 1513 arched trim, and will they cover my old escutcheon?
The arched sandcast bronze plates measure 1-1/2 x 11 inches. That is a narrow plate, so it will not hide a wider previous escutcheon or oversized screw holes. Check the footprint of what you are removing before committing.
8) Does this Emtek trim fix sagging levers on a patio door?
Yes. Emtek multi point lock trim now includes a spring assist that returns the lever to neutral, which is what stops the droop you get on heavy patio door levers over time.
9) Do I need to give a door thickness when ordering the Emtek 1513?
Door thickness is an optional entry on the order. Supply it if your slab is anything other than standard, because the spindle and cylinder length on a multi point setup depend on it. A standard residential exterior slab is 1-3/4 inches.
10) What kind of cylinder does the Emtek 1513 configuration take?
The prep is Euro profile, sitting below the handle. Since the 1513 is the non-keyed thumbturn version, you are not fitting a keyed Euro cylinder to it, but the plate cutout and the 3-5/8 inch center-to-center follow the Euro profile layout of your multi point lock body.
11) What finishes does the Emtek 1513 sandcast bronze multi point trim come in?
Three: Flat Black Bronze (FB), Medium Bronze (MB) and Tumbled White Bronze (TWB). All three are sandcast bronze, a living finish, so expect some variation piece to piece and over time. If you are matching other openings in a house, order the whole set in one finish at once.
