Emtek 1313 Multi Point Lock Tr...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$424.00
$339.20

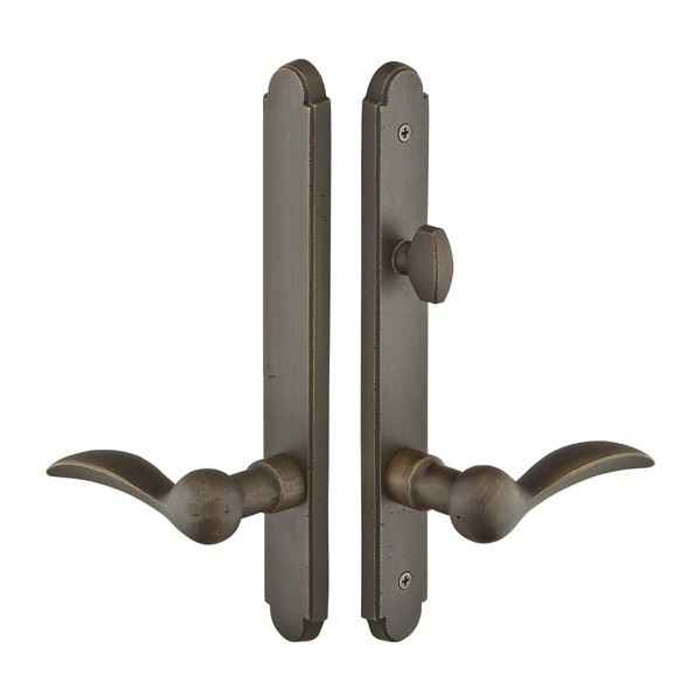

Emtek Emtek 1313 Multi Point Lock Trim (Door Config #3) - Sandcast Bronze Plates, Arched Style (1.5" x 11"), Non-Keyed American Style Thumbturn Inside EMTEK-1313

Emtek 1313 Multi Point Lock Trim (Door Config #3) - Sandcast Bronze Plates, Arched Style (1.5" x 11"), Non-Keyed American Style Thumbturn Inside

(No reviews yet) Write a Review

Model: 1313-FB
From the Sandcast Bronze Collection
$424.00
$339.20
Selected Finish is
Selected Lever Style is
Selected Handing is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$424.00
$339.20
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like



Specifications:

  • Door Configuration: Configuration #3
  • Plate Size: 1.5" x 11"
  • Material: Sandcast Bronze
  • Plate Style: Arched
  • Keyed: No
  • Function: Non-Keyed – Thumbturn Inside
  • Product Type: Multi Point Lock Trim



Emtek 1313 Multi Point Lock Trim (Door Config #3) - Sandcast Bronze Plates, Arched Style (1.5" x 11"), Non-Keyed American Style Thumbturn Inside

  • Can be ordered with any Sandcast Bronze Levers
  • Swinging Patio Door Hardware. Set includes Plates, Handles
  • Multi Point Mortise Lock Box not included. Trims Only
  • Each Multi Point Lock Trim now includes the Spring Assist function which returns the lever to the neutral position and eliminates sagging handles.
Manufacturer Resources

Product Specs

Subcategory:
Multi Point Lock Trim
Product Group:
Mechanical Locks
Commercial/Residential:
Residential
Product Type:
Multi Point Lock Trim
Product Subgroup:
Multi Point Lock Trim
Collection:
Sandcast Bronze
Cylinder Position:
Above Handle
Door Configuration:
#3
Electronic:
No
Keyed:
No
Lock Type:
Multi Point Trim
Ref. Door Manufacturer(s):
Andersen
Series:
Arched
Theme:
Rustic Living
MAP Policy:
Yes
Product Model:
1313
(CTC) Center-to-Center:
4-1/8"
Product Function:
Non-Keyed American Style Thumbturn Inside
Product Size:
1-1/2" x 11"
Cylinder Classification:
American
Product Style:
Arched
Product Material:
Bronze
Product Category:
Mechanical Locks
Product Substrate:
Bronze
Department:
Door Hardware

Emtek 1313-FB – Frequently Asked Questions

1) Does the Emtek 1313 multi point trim include the multi point lock itself?
No. The 1313 is trim only: plates and handles. The multi point mortise lock box is a separate purchase, so you need the lock already in the door or ordered alongside. Plan the order as two lines, not one.
2) What is Door Configuration #3 on Emtek multi point trim and how do I know it matches my door?
Configuration #3 on the 1313 puts the cylinder above the handle and uses an American style cylinder on the exterior, with a thumbturn on the inside instead of a key. The plate is drilled for that layout, so the existing prep on the door has to place the cylinder hole above the handle at 4-1/8 inch center to center. If your door has the cylinder below the handle or a different spacing, this configuration will not line up.
3) Will Emtek 1313 trim fit an Andersen swinging patio door?
Andersen is the referenced door manufacturer for the 1313 trim, and it is built for swinging patio door hardware. The fit still comes down to the prep matching Configuration #3: cylinder above the handle, 4-1/8 inch center to center, and a plate footprint of 1-1/2 by 11 inches. Measure the existing plate and hole spacing on the door before ordering.
4) Do I have to specify handing when ordering Emtek 1313 multi point trim?
Handing is required, right hand or left hand, and there is no reversible option. Stand outside the patio door: if the hinges are on your right it is a right hand door. Get this wrong and the thumbturn and lever land on the wrong side of the opening.
5) What else do I need to pick when ordering the Emtek 1313 trim set?
Three choices on the order. Lever style is required, with ten Sandcast Bronze levers to choose from: Aurora, Bryce, Cimarron, Cody, Durango, Lariat, Mariposa, Montrose, Teton and Yuma. Handing is required. Door thickness is a free text entry, so measure the slab and give the actual thickness. Finish is the fourth pick: Flat Black Bronze, Medium Bronze or Tumbled White Bronze.
6) Is the Emtek 1313 keyed, and how does the inside lock?
The 1313 trim is non-keyed. The interior side gets an American style thumbturn to throw the multi point lock, and the exterior plate carries the cylinder position above the handle. If you want a key cylinder outside on this configuration, the 1313 is the wrong trim to order.
7) Will Emtek Sandcast Bronze patio trim match the other bronze hardware in the house?
The 1313 belongs to Emtek's Sandcast Bronze collection, cast bronze throughout, in Flat Black Bronze, Medium Bronze or Tumbled White Bronze. Order the same finish code used on the interior levers and entry sets and the patio door reads as part of the same suite. Sandcast bronze is a living finish family, so pieces bought at different times can vary slightly in tone.
8) Is Emtek 1313 multi point trim rated for a commercial building entrance?
It is a residential product. The 1313 is swinging patio door trim for homes, not a commercial entrance application. For a multi-family or commercial opening that needs a graded lockset, spec commercial mortise or cylindrical hardware instead.
9) Do Emtek multi point lever handles sag over time?
Each 1313 trim ships with the Spring Assist function built in, which returns the lever to the neutral horizontal position and takes the sag out of the handle. That is included on the trim, not an add-on to specify.
10) Can I mix a different Emtek lever with the 1313 arched plates?
Any Sandcast Bronze lever can be ordered on the 1313 arched plate. The plate itself is the 1-1/2 by 11 inch arched profile, and the lever choice is independent of it, so you can carry the same lever design used elsewhere in the house onto the patio door.
11) Is the Emtek 1313 an electronic or smart lock trim?
Mechanical only. The 1313 is a thumbturn and lever trim with no electronics, no keypad and no wiring, so there is nothing to power at the door.
12) How much of the door does the Emtek 1313 arched plate cover?
The plate measures 1-1/2 x 11 inches in the arched profile. On a retrofit that matters: if the existing plate is wider or longer, its outline and screw holes may show around the new trim. Compare the old plate to those dimensions before pulling it off.
