Emtek 1813 Multi Point Lock Tr...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$424.00
$339.20

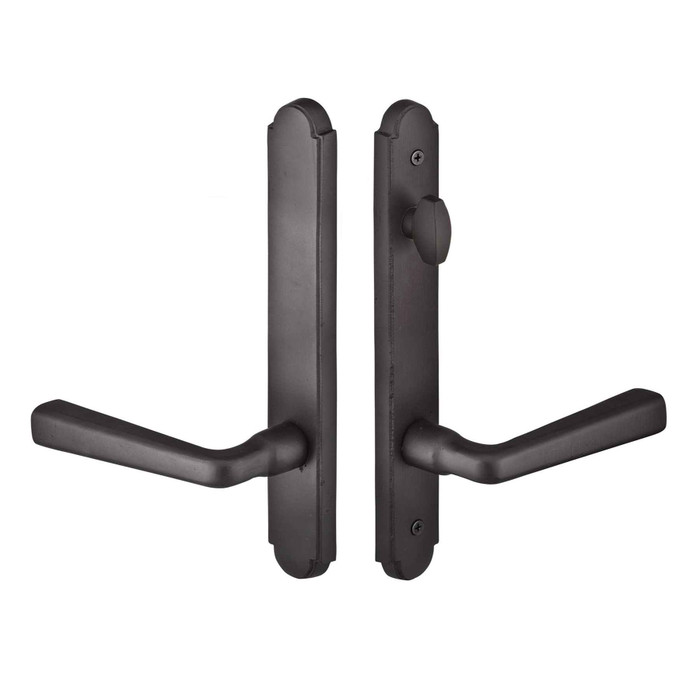

Emtek Emtek 1813 Multi Point Lock Trim (Door Config #8) - Sandcast Bronze Plates, Arched Style (1.5" x 11"), Non-Keyed American Style Thumbturn Inside EMTEK-1813

Emtek 1813 Multi Point Lock Trim (Door Config #8) - Sandcast Bronze Plates, Arched Style (1.5" x 11"), Non-Keyed American Style Thumbturn Inside

(No reviews yet) Write a Review

Model: 1813-FB
From the Sandcast Bronze Collection
$424.00
$339.20
Selected Finish is
Selected Lever Style is
Selected Handing is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$424.00
$339.20
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like



Specifications:

  • Door Configuration: Configuration #8
  • Plate Size: 1.5" x 11"
  • Material: Sandcast Bronze
  • Plate Style: Arched
  • Keyed: No
  • Function: Non-Keyed – Thumbturn Inside
  • Product Type: Multi Point Lock Trim



Emtek 1813 Multi Point Lock Trim (Door Config #8) - Sandcast Bronze Plates, Arched Style (1.5" x 11"), Non-Keyed American Style Thumbturn Inside

  • Can be ordered with any Sandcast Bronze Levers
  • Swinging Patio Door Hardware. Set includes Plates, Handles
  • Multi Point Mortise Lock Box not included. Trims Only
  • Each Multi Point Lock Trim now includes the Spring Assist function which returns the lever to the neutral position and eliminates sagging handles.
Manufacturer Resources

Product Specs

Subcategory:
Multi Point Lock Trim
Product Group:
Mechanical Locks
Commercial/Residential:
Residential
Product Type:
Multi Point Lock Trim
Product Subgroup:
Multi Point Lock Trim
Collection:
Sandcast Bronze
Cylinder Position:
Above Handle
Door Configuration:
#8
Electronic:
No
Keyed:
No
Lock Type:
Multi Point Trim
Ref. Door Manufacturer(s):
Neuma Doors
Series:
Arched
Theme:
Rustic Living
MAP Policy:
Yes
Product Model:
1813
(CTC) Center-to-Center:
5-1/4"
Product Function:
Non-Keyed American Style Thumbturn Inside
Product Size:
1-1/2" x 11"
Cylinder Classification:
American
Product Style:
Arched
Product Material:
Bronze
Product Category:
Mechanical Locks
Product Substrate:
Bronze
Department:
Door Hardware

Emtek 1813-FB – Frequently Asked Questions

1) Will the Emtek 1813 trim line up with my existing multi point lock prep?
It is cut for Door Configuration #8 with a 5-1/4 inch center-to-center between the handle and the cylinder hole, and the cylinder sits above the handle. Measure your door from the handle hub to the cylinder bore. If that distance isn't 5-1/4 inches, or your cylinder sits below the handle, you need a different Emtek configuration plate.
2) Is there a keyed cylinder on the Emtek 1813, or just a thumbturn?
Non-keyed. The inside gets an American style thumbturn to throw and retract the multi point bolts, and there is no key cylinder on the exterior plate. Use it on a swinging patio door where the opening doesn't need to be locked from outside, or where a separate deadbolt handles keyed entry. If you need key access, order a keyed version of the same configuration instead.
3) What do I have to specify when ordering Emtek 1813 trim?
Three choices, and two of them are required. Pick the lever style from ten Sandcast Bronze options (Aurora, Bryce, Cimarron, Cody, Durango, Lariat, Mariposa, Montrose, Teton, Yuma), pick handing (right or left hand), and pick a finish (Flat Black Bronze, Medium Bronze, or Tumbled White Bronze). There is also an optional door thickness field if your door is out of the ordinary.
4) Does handing matter on Emtek 1813 trim, and how do I determine it?
Handing is required on this trim, right hand or left hand. Stand outside the door: if the hinges are on your right it is a right hand door. Getting it wrong means the thumbturn and lever orientation fight the swing, so confirm from the exterior before you place the order.
5) Do the handles on Emtek multi point trim sag over time?
Each Emtek multi point trim set now ships with a spring assist in the handle, which returns the lever to horizontal after use. That is the mechanism that stops the drooping lever you see on older patio door trim, and it means you don't have to rely on the gearbox's return spring alone.
6) Can I match Emtek 1813 patio door trim to the lever sets on my other interior doors?
Yes, within the Sandcast Bronze collection. The 1813 trim can be ordered with any Sandcast Bronze lever, so the same lever style and bronze finish you specify here can be carried across passage and privacy sets elsewhere in the house for a consistent look.
7) Which door brand is Emtek Configuration #8 trim referenced to?
Neuma Doors is the referenced door manufacturer for this configuration, so if you are replacing or upgrading hardware on a Neuma swinging patio door, Config #8 is the layout to check first. Still verify the 5-1/4 inch handle-to-cylinder spacing on the actual door, since a manufacturer can run more than one gearbox layout.
8) What is the Emtek 1813 trim made of, and how do the three finishes differ?
Sandcast bronze, solid bronze substrate rather than plated zinc, which is why it carries a cast texture rather than a smooth machined face. Finishes are Flat Black Bronze (FB), Medium Bronze (MB), and Tumbled White Bronze (TWB). The bronze finishes are living, so they shift with handling and weather, which is usually the point on a rustic patio door.
