Emtek Emtek 1213 Multi Point Lock Trim (Door Config #2) - Sandcast Bronze Plates, Arched Style (1.5" x 11"), Non-Keyed American Style Thumbturn Inside EMTEK-1213

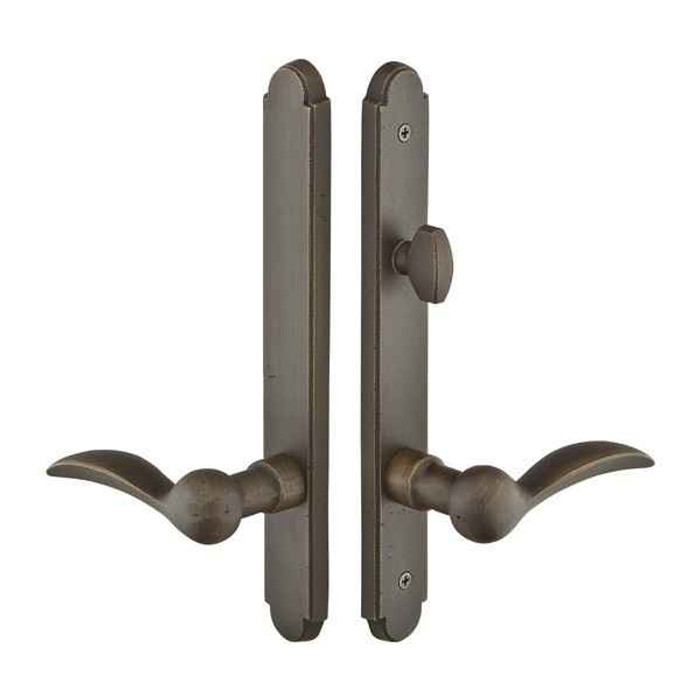

Emtek 1213 Multi Point Lock Trim (Door Config #2) - Sandcast Bronze Plates, Arched Style (1.5" x 11"), Non-Keyed American Style Thumbturn Inside

(No reviews yet) Write a Review

Model: 1213-FB
From the Sandcast Bronze Collection
$424.00
$339.20
Selected Finish is
Selected Lever Style is
Selected Handing is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$424.00
$339.20
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like



Specifications:

  • Door Configuration: Configuration #2
  • Plate Size: 1.5" x 11"
  • Material: Sandcast Bronze
  • Plate Style: Arched
  • Keyed: No
  • Function: Non-Keyed – Thumbturn Inside
  • Product Type: Multi Point Lock Trim



Emtek 1213 Multi Point Lock Trim (Door Config #2) - Sandcast Bronze Plates, Arched Style (1.5" x 11"), Non-Keyed American Style Thumbturn Inside

  • Can be ordered with any Sandcast Bronze Levers
  • Swinging Patio Door Hardware. Set includes Plates, Handles
  • Multi Point Mortise Lock Box not included. Trims Only
  • Each Multi Point Lock Trim now includes the Spring Assist function which returns the lever to the neutral position and eliminates sagging handles.
Manufacturer Resources

Product Specs

Subcategory:
Multi Point Lock Trim
Product Group:
Mechanical Locks
Commercial/Residential:
Residential
Product Type:
Multi Point Lock Trim
Product Subgroup:
Multi Point Lock Trim
Collection:
Sandcast Bronze
Cylinder Position:
Above Handle
Door Configuration:
#2
Electronic:
No
Keyed:
No
Lock Type:
Multi Point Trim
Ref. Door Manufacturer(s):
BiltBest, G-U, Hurd (Energy Saver), Andersen
Series:
Arched
Theme:
Rustic Living
MAP Policy:
Yes
Product Model:
1213
(CTC) Center-to-Center:
3-5/8"
Product Function:
Non-Keyed American Style Thumbturn Inside
Product Size:
1-1/2" x 11"
Cylinder Classification:
American
Product Style:
Arched
Product Material:
Bronze
Product Category:
Mechanical Locks
Product Substrate:
Bronze
Department:
Door Hardware

Emtek 1213-FB – Frequently Asked Questions

1) Does the Emtek 1213 multi point trim include the multi point lock itself?
No. The Emtek 1213 is trim only: plates and handles. The multi point mortise lock box is a separate purchase, so you need to already have the lock in the door or order one alongside it.
2) What does Door Configuration #2 mean on Emtek multi point trim, and how do I know it matches my door?
Configuration refers to the layout of the prep on the door: where the cylinder sits relative to the handle and how far apart the holes are. The 1213 is Config #2, with the cylinder position above the handle and a center-to-center of 3-5/8 inches between the handle and cylinder holes. Measure your existing door prep hole spacing; if it isn't 3-5/8 inches with the cylinder above the lever, this is the wrong configuration.
3) Which patio door brands is the Emtek 1213 trim referenced to fit?
Emtek lists this configuration against BiltBest, G-U, Hurd (Energy Saver), and Andersen swinging patio doors. Those are the reference manufacturers for the Config #2 prep, so if you're working on one of those doors the hole pattern is the one this plate is cut for.
4) Is there a key cylinder on the Emtek 1213, or just a thumbturn?
Non-keyed. The 1213 operates with an American style thumbturn on the interior and has no exterior key cylinder. If you need to lock and unlock that door from outside with a key, pick a keyed configuration instead.
5) What do I have to specify when ordering Emtek 1213 sandcast bronze multi point trim?
Four things. Finish, from Flat Black Bronze, Medium Bronze, or Tumbled White Bronze. Lever style, from ten sandcast options: Aurora, Bryce, Cimarron, Cody, Durango, Lariat, Mariposa, Montrose, Teton, and Yuma. Handing, left or right. And your door thickness, which is an open text entry on the order.
6) Does handing matter on this Emtek multi point trim?
Yes, it's a required selection. You order the 1213 as either right hand or left hand, so determine the swing before ordering. Stand outside the door: if the hinges are on your right, it's a right hand door.
7) How big are the plates on the Emtek 1213, and will they cover my old trim's marks?
The arched sandcast bronze plates measure 1-1/2 by 11 inches. That's a narrow plate, so it will sit on most patio door stiles, but it won't hide a wide escutcheon footprint left behind by a previous handle set. Hold the 1-1/2 inch width against your stile and any existing finish marks before you commit.
8) Will the Emtek 1213 levers sag over time like older multi point handles?
Emtek now builds Spring Assist into every multi point lock trim, including the 1213. It returns the lever to the neutral horizontal position and is there specifically to stop the drooping handle problem on multi point patio doors.
9) Is Emtek 1213 sandcast bronze trim suitable for a commercial building entrance?
It's built and catalogued as residential swinging patio door hardware, not commercial entry hardware. For an apartment unit's patio door or a house, it's the right item; for a commercial storefront or a code-rated entrance, specify commercial grade hardware instead.
10) Can I match Emtek 1213 trim to other sandcast bronze hardware in the house?
Yes. The 1213 is part of Emtek's Sandcast Bronze collection, cast in solid bronze, and it takes any sandcast bronze lever. Ordering the same lever style and finish, Flat Black Bronze, Medium Bronze, or Tumbled White Bronze, as your interior doors keeps the patio door consistent with the rest of the openings.
11) Why does the Emtek 1213 list an American cylinder classification if it isn't keyed?
The cylinder classification tells you the prep style the plate is cut for, American rather than Euro profile, with the cylinder location above the handle. On the 1213 that opening carries the thumbturn instead of a key cylinder, since this configuration is non-keyed. It matters when you're matching the trim to a door already prepped for an American style multi point lock.
