Emtek 1613 Multi Point Lock Tr...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$424.00
$339.20

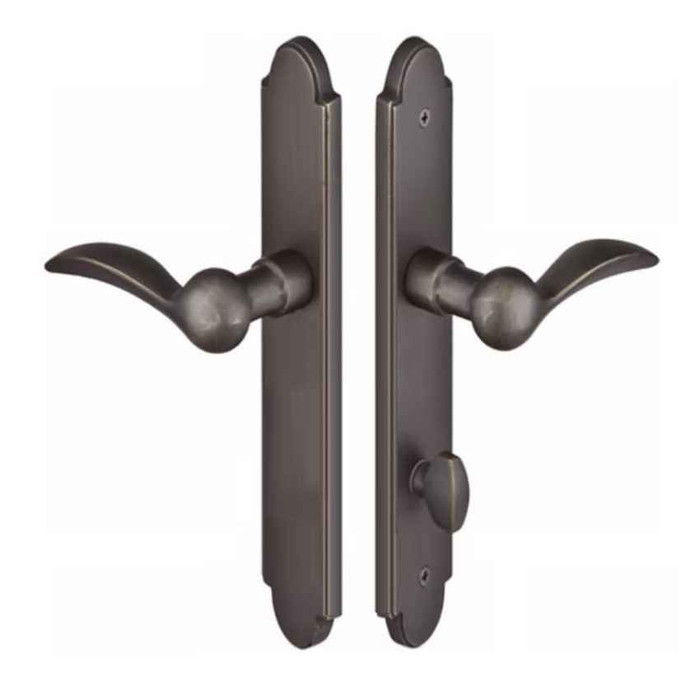

Emtek Emtek 1613 Multi Point Lock Trim (Door Config #6) - Sandcast Bronze Plates, Arched Style (1.5" x 11"), Non-Keyed American Style Thumbturn Inside EMTEK-1613

Emtek 1613 Multi Point Lock Trim (Door Config #6) - Sandcast Bronze Plates, Arched Style (1.5" x 11"), Non-Keyed American Style Thumbturn Inside

(No reviews yet) Write a Review

Model: 1613-FB
From the Sandcast Bronze Collection
$424.00
$339.20
Selected Finish is
Selected Lever Style is
Selected Handing is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$424.00
$339.20
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like



Specifications:

  • Door Configuration: Configuration #6
  • Plate Size: 1.5" x 11"
  • Material: Sandcast Bronze
  • Plate Style: Arched
  • Keyed: No
  • Function: Non-Keyed – Thumbturn Inside
  • Product Type: Multi Point Lock Trim



Emtek 1613 Multi Point Lock Trim (Door Config #6) - Sandcast Bronze Plates, Arched Style (1.5" x 11"), Non-Keyed American Style Thumbturn Inside

  • Can be ordered with any Sandcast Bronze Levers
  • Swinging Patio Door Hardware. Set includes Plates, Handles
  • Multi Point Mortise Lock Box not included. Trims Only
  • Each Multi Point Lock Trim now includes the Spring Assist function which returns the lever to the neutral position and eliminates sagging handles.
Manufacturer Resources

Product Specs

Subcategory:
Multi Point Lock Trim
Product Group:
Mechanical Locks
Commercial/Residential:
Residential
Product Type:
Multi Point Lock Trim
Product Subgroup:
Multi Point Lock Trim
Collection:
Sandcast Bronze
Cylinder Position:
Below Handle
Door Configuration:
#6
Electronic:
No
Keyed:
No
Lock Type:
Multi Point Trim
Ref. Door Manufacturer(s):
Milgard, Pella
Series:
Arched
Theme:
Rustic Living
MAP Policy:
Yes
Product Model:
1613
(CTC) Center-to-Center:
3-5/8"
Product Function:
Non-Keyed American Style Thumbturn Inside
Product Size:
1-1/2" x 11"
Cylinder Classification:
American
Product Style:
Arched
Product Material:
Bronze
Product Category:
Mechanical Locks
Product Substrate:
Bronze
Department:
Door Hardware

Emtek 1613-FB – Frequently Asked Questions

1) Does the Emtek 1613 multi point trim include the multi point lock itself?
No. The Emtek 1613 is trim only: plates and handles. The multi point mortise lock box is a separate purchase, so you need the lock body already in the door or ordered alongside it. Lever style and handing are both required choices when you order the trim.
2) How do I know if my patio door takes Emtek Door Configuration #6 trim?
Configuration #6 on the Emtek 1613 describes where the operating parts sit on the plate: an American style cylinder prep positioned below the handle, with a thumbturn on the interior and no key cylinder supplied. The handle-to-cylinder center-to-center spacing is 3-5/8 inches. Measure from the center of the lever spindle hole to the center of the cylinder hole on your existing lock body; if that comes out at 3-5/8 inches with the cylinder below the lever, this configuration lines up.
3) Will Emtek 1613 trim fit a Milgard or Pella swinging patio door?
Milgard and Pella are the reference door manufacturers Emtek lists for this trim. It is sized for swinging patio doors running a multi point mortise lock, with plates measuring 1-1/2 by 11 inches. Confirm your door's lock body uses the same 3-5/8 inch center-to-center spacing with the cylinder below the handle before ordering.
4) Is the Emtek 1613 keyed, and can I still lock the door from outside?
It is a non-keyed set. The interior side gets an American style thumbturn, and the exterior plate carries the handle with a cylinder position below it but no cylinder supplied. If you need key access from outside, you need a keyed version of the trim plus a cylinder, not this one.
5) Do I have to specify handing on Emtek multi point lock trim?
Yes, handing is a required selection, right hand or left hand. Stand outside the door: if the hinges are on your right, it is right hand. Lever style is also required, and you choose from ten sandcast bronze levers including Aurora, Bryce, Cimarron, Cody, Durango, Lariat, Mariposa, Montrose, Teton and Yuma. There is also an optional door thickness entry so Emtek can set the spindle length.
6) What finishes does the Emtek 1613 sandcast bronze trim come in?
Three sandcast bronze finishes: Flat Black Bronze (FB), Medium Bronze (MB), and Tumbled White Bronze (TWB). All three are solid sandcast bronze, so the surface has the texture and slight variation of a cast part rather than a plated one, and each piece will differ a little. If you are matching other openings, stay within the Emtek Sandcast Bronze collection so the levers and finish read the same.
7) Can I pair a different Emtek lever with the 1613 arched plate?
Any Emtek sandcast bronze lever can be ordered with this arched trim, and the lever choice is made at order time from ten options. The plate itself is the arched style at 1-1/2 by 11 inches, so the lever changes the look without changing the door prep.
8) Will this trim cover the old plate cutout on my existing patio door?
The arched plates measure 1-1/2 by 11 inches, which is a fairly narrow, short plate. If you are replacing a taller or wider trim, the 1613 may not hide the previous screw holes or paint outline. Measure the existing plate footprint against 1-1/2 by 11 before committing, and remember this swaps trim only, not the lock body in the door.
9) Is this Emtek trim rated for commercial use?
Emtek lists the 1613 as residential. It is swinging patio door hardware in sandcast bronze, intended for homes and residential multi-family openings rather than high-traffic commercial entries.
10) Will the lever sag over time on this Emtek patio door trim?
Emtek now builds a spring assist into every multi point lock trim set, including the 1613. It returns the lever to horizontal after each use, which is what keeps long patio door levers from drooping. That is a change worth noting if you are matching an older Emtek set on an adjacent door.
