Specifications:
- Door Configuration: Configuration #1
- Plate Size: 2" x 10"
- Material: Sandcast Bronze
- Plate Style: Arched
- Keyed: No
- Function: Non-Keyed – Fixed Handle Outside / Operating Handle Inside (Semi-Active)
- Product Type: Multi Point Lock Trim

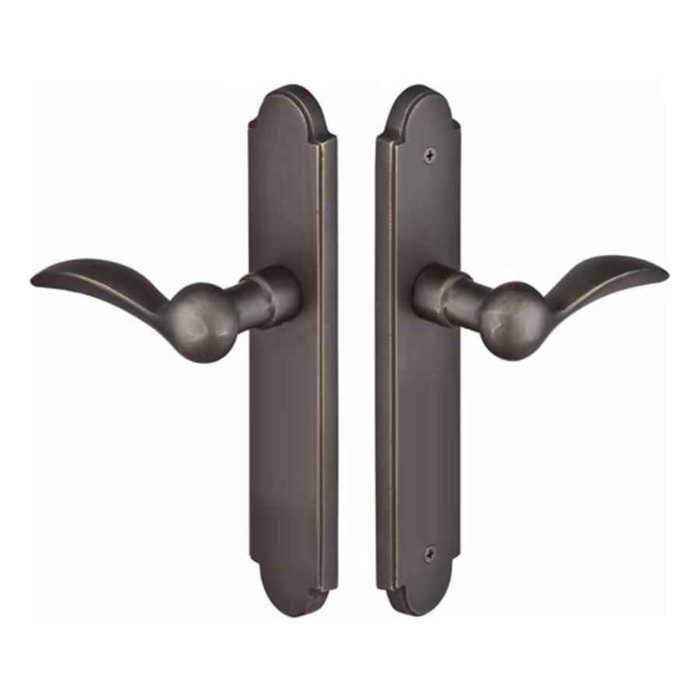

Emtek 1124 Multi Point Lock Trim (Door Config #1) - Sandcast Bronze Plates, Arched Style (2" x 10"), Non-Keyed Fixed Handle Outside, Operating Handle Inside (for Semi-Active Door)
- Can be ordered with any Sandcast Bronze Levers
- Swinging Patio Door Hardware. Set includes Plates, Handles
- Multi Point Mortise Lock Box not included. Trims Only
- Each Multi Point Lock Trim now includes the Spring Assist function which returns the lever to the neutral position and eliminates sagging handles.
Manufacturer Resources
Emtek Multi Point Pocket Booket
Product Specs
- Subcategory:
- Multi Point Lock Trim
- Product Group:
- Mechanical Locks
- Commercial/Residential:
- Residential
- Product Type:
- Multi Point Lock Trim
- Product Subgroup:
- Multi Point Lock Trim
- Collection:
- Sandcast Bronze
- Cylinder Position:
- Below Handle
- Door Configuration:
- #1
- Electronic:
- No
- Keyed:
- No
- Lock Type:
- Multi Point Trim
- Ref. Door Manufacturer(s):
- Atrium, G-U, KML by Andersen, Andersen, Marvin Integrity, Paddock Lockmaster, Superior
- Series:
- Arched
- Theme:
- Rustic Living
- MAP Policy:
- Yes
- Product Model:
- 1124
- (CTC) Center-to-Center:
- 3-5/8"
- Product Function:
- Non-Keyed Fixed Handle Outside, Operating Handle Inside
- Product Size:
- 2" x 10"
- Cylinder Classification:
- American
- Product Style:
- Arched
- Product Material:
- Bronze
- Product Category:
- Mechanical Locks
- Product Substrate:
- Bronze
- Department:
- Door Hardware
Emtek 1124-FB – Frequently Asked Questions
1) What does the 1124 non-keyed semi-active function actually do on a pair of French doors?
It gives you a fixed, non-operating handle on the exterior and a working lever on the interior. That is the setup for the semi-active (inactive) leaf of a pair, where you only need to throw or retract the multi point from inside. There is no cylinder in it since the trim is non-keyed, so the active leaf carries the key.
2) Which door brands is this Emtek multi point trim referenced to?
Emtek lists Configuration #1 trim against Atrium, G-U, KML by Andersen, Andersen, Marvin Integrity, Paddock Lockmaster and Superior door systems. Confirm your door uses Config #1 geometry, since Emtek splits the multi point trim line by configuration number and the plate hole pattern changes between them.
3) Do I have to specify handing when ordering this Emtek arched sandcast bronze trim?
Yes, handing is a required selection: right hand or left hand. You also have to pick a lever style, and there is an optional field for door thickness so Emtek can supply the correct spindle length. Get the handing wrong on the semi-active leaf and the lever will point the wrong way against the astragal.
4) If I need a key cylinder on the outside of the door, is this the right Emtek trim?
No. The 1124 is non-keyed with a fixed exterior handle, meant for the semi-active leaf. For the active leaf you need a keyed Emtek multi point trim in the same Configuration #1 arched sandcast bronze family, which accepts an American-style cylinder positioned below the handle.
5) Which levers can I put on the Emtek 1124 sandcast bronze trim?
Any Emtek Sandcast Bronze lever works with it. The lever choices are Aurora, Bryce, Cimarron, Cody, Durango, Lariat, Mariposa, Montrose, Teton and Yuma, so you can match the levers already hung on interior doors in the same house.
6) Will the interior lever on this Emtek multi point trim sag over time?
Emtek now builds a spring assist into the multi point trim, which returns the lever to neutral and is there specifically to stop handle sag. That matters on multi point hardware because the lever carries the load of lifting the gearbox rollers and hooks.
7) Is the Emtek 1124 suitable for a commercial entrance?
It is a residential product, cataloged for swinging patio door use. For a commercial storefront or a code-driven egress opening you want commercial-rated hardware instead, not sandcast bronze patio trim.
8) What finishes does the Emtek 1124 arched multi point trim come in?
Three sandcast bronze finishes: Flat Black Bronze (FB), Medium Bronze (MB) and Tumbled White Bronze (TWB). These are living bronze finishes on cast bronze plates, so expect them to patina over time on an exterior patio door rather than stay uniform.
9) Is this Emtek trim electronic or does it work with a smart lock?
Purely mechanical. There is no electronic option on the 1124 arched multi point trim, no motor, no wiring and no keypad. It is a lever-and-plate trim set that drives a mechanical multi point gearbox.
