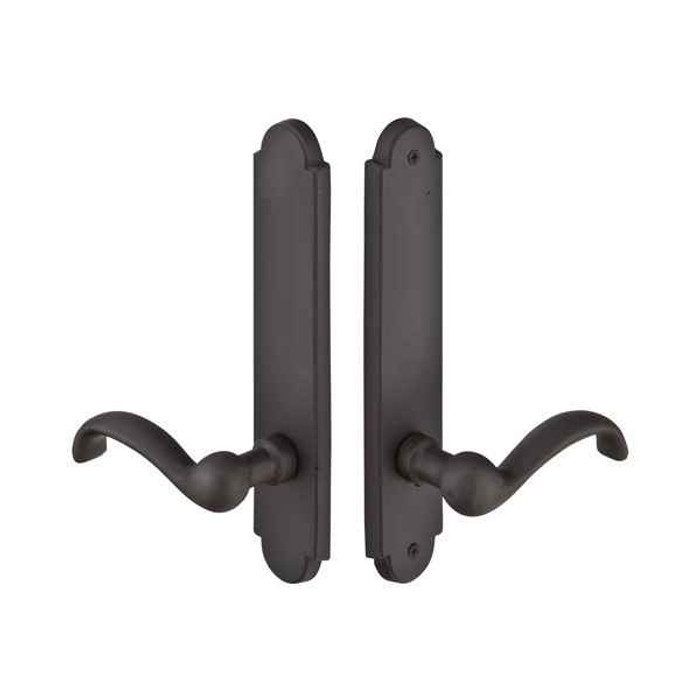

Emtek Emtek 1224 Multi Point Lock Trim (Door Config #2) - Sandcast Bronze Plates, Arched Style (2" x 10"), Non-Keyed Fixed Handle Outside, Operating Handle Inside (for Semi-Active Door) EMTEK-1224

Emtek 1224 Multi Point Lock Trim (Door Config #2) - Sandcast Bronze Plates, Arched Style (2" x 10"), Non-Keyed Fixed Handle Outside, Operating Handle Inside (for Semi-Active Door)

(No reviews yet) Write a Review

Model: 1224-FB
From the Sandcast Bronze Collection
$424.00
$339.20
Selected Finish is
Selected Lever Style is
Selected Handing is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$424.00
$339.20
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like



Specifications:

  • Door Configuration: Configuration #2
  • Plate Size: 2" x 10"
  • Material: Sandcast Bronze
  • Plate Style: Arched
  • Keyed: No
  • Function: Non-Keyed – Fixed Handle Outside / Operating Handle Inside (Semi-Active)
  • Product Type: Multi Point Lock Trim



Emtek 1224 Multi Point Lock Trim (Door Config #2) - Sandcast Bronze Plates, Arched Style (2" x 10"), Non-Keyed Fixed Handle Outside, Operating Handle Inside (for Semi-Active Door)

  • Can be ordered with any Sandcast Bronze Levers
  • Swinging Patio Door Hardware. Set includes Plates, Handles
  • Multi Point Mortise Lock Box not included. Trims Only
  • Each Multi Point Lock Trim now includes the Spring Assist function which returns the lever to the neutral position and eliminates sagging handles.
Manufacturer Resources

Product Specs

Subcategory:
Multi Point Lock Trim
Product Group:
Mechanical Locks
Commercial/Residential:
Residential
Product Type:
Multi Point Lock Trim
Product Subgroup:
Multi Point Lock Trim
Collection:
Sandcast Bronze
Cylinder Position:
Above Handle
Door Configuration:
#2
Electronic:
No
Keyed:
No
Lock Type:
Multi Point Trim
Ref. Door Manufacturer(s):
BiltBest, G-U, Hurd (Energy Saver), Andersen
Series:
Arched
Theme:
Rustic Living
MAP Policy:
Yes
Product Model:
1224
(CTC) Center-to-Center:
3-5/8"
Product Function:
Non-Keyed Fixed Handle Outside, Operating Handle Inside
Product Size:
2" x 10"
Cylinder Classification:
American
Product Style:
Arched
Product Material:
Bronze
Product Category:
Mechanical Locks
Product Substrate:
Bronze
Department:
Door Hardware

Emtek 1224-FB – Frequently Asked Questions

1) Will Emtek 1224 trim fit my existing multi point patio door lock?
It is built to the 3-5/8 inch center-to-center handle-to-cylinder-hole spacing used on multi point systems from BiltBest, G-U, Hurd (Energy Saver) and Andersen. Measure your door's existing spacing and compare to 3-5/8 inches before ordering, since other multi point makers use different centers.
2) What does Door Configuration #2 mean on Emtek multi point trim?
Configuration #2 is the semi-active (inactive) leaf of a pair of patio doors. It is non-keyed, with a fixed dummy-style handle on the exterior and a working lever inside to throw and retract the multi point lock. If you are trimming the active door that needs a key outside, Configuration #2 is the wrong one to order.
3) What do I have to specify when ordering the Emtek 1224?
Three things. Handing, right or left. Lever style, chosen from Aurora, Bryce, Cimarron, Cody, Durango, Lariat, Mariposa, Montrose, Teton or Yuma. And finish: Flat Black Bronze, Medium Bronze or Tumbled White Bronze. There is also an optional door thickness field so the trim is set up for your slab.
4) Where does the cylinder hole sit on this Emtek arched multi point plate?
Above the handle, sized for an American-style cylinder. On Configuration #2 the exterior side is non-keyed, so the plate geometry matches the rest of the arched family visually while the active door in the pair carries the key.
5) Do the levers on these patio door trims sag over time?
Emtek multi point trim now ships with a spring assist that returns the lever to neutral, which is what prevents the drooping handle you see on older patio door trim. It is built into the trim, no separate part to order.
6) How big are the plates, and will they cover my door stile?
The arched plates measure 2 x 10 inches. On a narrow-stile patio door, check that you have at least 2 inches of flat face width alongside the glass stop for the plate to sit on.
7) Can I match the active door of the pair with the same look?
Yes. The arched sandcast bronze plate style and the ten lever options carry across Emtek's multi point trim configurations, so you can pair the non-keyed Configuration #2 set on the semi-active leaf with a keyed configuration on the active leaf in the same finish and lever. Order both in the same finish code, Flat Black Bronze, Medium Bronze or Tumbled White Bronze.
8) Is sandcast bronze trim suitable for a commercial entrance?
Emtek lists the sandcast bronze collection as residential. It is a solid bronze casting intended for swinging patio doors in homes, rustic and custom-door work, not for high-traffic commercial openings where a Grade 1 mortise or exit device would be specified.
9) Is this an electronic or smart patio door handle set?
No, the 1224 is fully mechanical trim. No wiring, no motor, no battery compartment; the inside lever drives the multi point lock mechanically.
