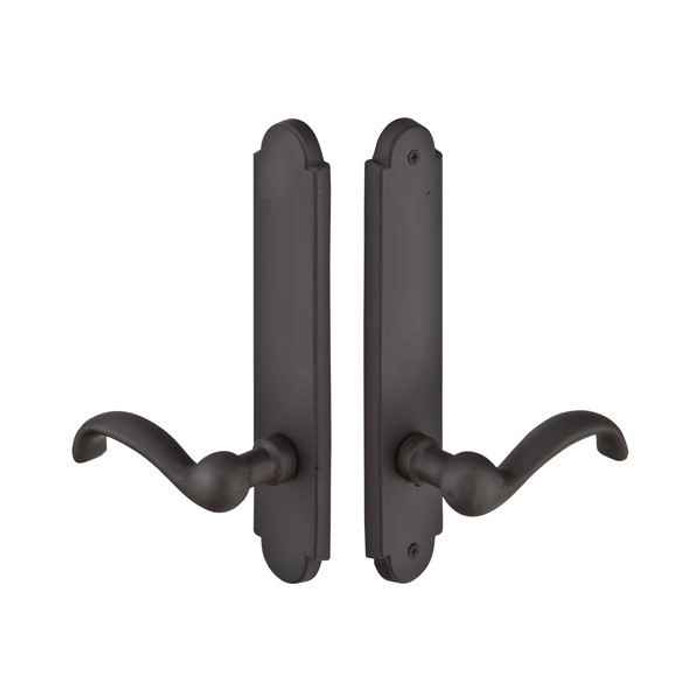

Emtek Emtek 1424 Multi Point Lock Trim (Door Config #4) - Sandcast Bronze Plates, Arched Style (2" x 10"), Non-Keyed Fixed Handle Outside, Operating Handle Inside (for Semi-Active Door) EMTEK-1424

Emtek 1424 Multi Point Lock Trim (Door Config #4) - Sandcast Bronze Plates, Arched Style (2" x 10"), Non-Keyed Fixed Handle Outside, Operating Handle Inside (for Semi-Active Door)

(No reviews yet) Write a Review

Model: 1424-FB
From the Sandcast Bronze Collection
$424.00
$339.20
Selected Finish is
Selected Lever Style is
Selected Handing is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$424.00
$339.20
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like



Specifications:

  • Door Configuration: Configuration #4
  • Plate Size: 2" x 10"
  • Material: Sandcast Bronze
  • Plate Style: Arched
  • Keyed: No
  • Function: Non-Keyed – Fixed Handle Outside / Operating Handle Inside (Semi-Active)
  • Product Type: Multi Point Lock Trim



Emtek 1424 Multi Point Lock Trim (Door Config #4) - Sandcast Bronze Plates, Arched Style (2" x 10"), Non-Keyed Fixed Handle Outside, Operating Handle Inside (for Semi-Active Door)

  • Can be ordered with any Sandcast Bronze Levers
  • Swinging Patio Door Hardware. Set includes Plates, Handles
  • Multi Point Mortise Lock Box not included. Trims Only
  • Each Multi Point Lock Trim now includes the Spring Assist function which returns the lever to the neutral position and eliminates sagging handles.
Manufacturer Resources

Product Specs

Subcategory:
Multi Point Lock Trim
Product Group:
Mechanical Locks
Commercial/Residential:
Residential
Product Type:
Multi Point Lock Trim
Product Subgroup:
Multi Point Lock Trim
Collection:
Sandcast Bronze
Cylinder Position:
Above Handle
Door Configuration:
#4
Electronic:
No
Keyed:
No
Lock Type:
Multi Point Trim
Ref. Door Manufacturer(s):
Ashland, G-U, Caradco, JELD-WEN, Jeldwen Custom Collection (formerly Pozzi), Marvin, PGT, Premium Collection (formerly Norco), Weathershield
Series:
Arched
Theme:
Rustic Living
MAP Policy:
Yes
Product Model:
1424
(CTC) Center-to-Center:
3-5/8"
Product Function:
Non-Keyed Fixed Handle Outside, Operating Handle Inside
Product Size:
2" x 10"
Cylinder Classification:
American
Product Style:
Arched
Product Material:
Bronze
Product Category:
Mechanical Locks
Product Substrate:
Bronze
Department:
Door Hardware

Emtek 1424-FB – Frequently Asked Questions

1) Does the Emtek 1424 multi point trim include the multi point lock mechanism?
No. The Emtek 1424 is trim only: plates and handles. The multi point mortise lock box is a separate purchase, so you need the gearbox already in the door or ordered alongside it.
2) What does Door Configuration #4 mean on Emtek multi point trim?
Configuration #4 is the non-keyed semi-active door setup: a fixed (dummy) handle on the outside and an operating lever on the inside. That is the inactive or semi-active leaf of a French or patio door pair, where you do not want an exterior key cylinder. If you need a keyed exterior handle for the active leaf, configuration #4 is the wrong one.
3) Will Emtek 1424 trim fit my Marvin or JELD-WEN swinging patio door?
The 1424 trim is referenced to multi point systems from Ashland, G-U, Caradco, JELD-WEN, Jeldwen Custom Collection (formerly Pozzi), Marvin, PGT, Premium Collection (formerly Norco), and Weathershield. Match the 3-5/8 inch center-to-center spacing between the handle and the cylinder hole on your existing prep, with the cylinder position above the handle.
4) What do I have to specify when ordering the Emtek 1424 trim set?
Four things: finish, lever style, handing, and door thickness. Finishes are Flat Black Bronze, Medium Bronze, and Tumbled White Bronze. Lever choices are Aurora, Bryce, Cimarron, Cody, Durango, Lariat, Mariposa, Montrose, Teton, and Yuma. Handing is right or left. Door thickness is entered as a measurement so the spindle and screw pack suit your slab.
5) How big are the plates on the Emtek 1424 arched trim?
The plates measure 2 x 10 inches in the Arched style. That is a narrow plate footprint, which matters on French and patio doors where stile width is limited.
6) Is the Emtek 1424 solid bronze or plated?
Sandcast bronze, both the substrate and the material. It is part of Emtek's Sandcast Bronze collection, and the trim can be ordered with any Sandcast Bronze lever, so the handles match the plates across a set of doors.
7) Can I add a key cylinder to the Emtek 1424 later?
The 1424 is built as a non-keyed configuration, so plan on it staying non-keyed. If the opening needs a key outside, order the keyed configuration instead. Emtek's keyed multi point trim uses an American-classification cylinder positioned above the handle.
8) Does handing matter on the Emtek 1424, and what happens if I order the wrong hand?
Handing is required at order. The 1424 pairs a fixed exterior handle with an operating interior lever, so the lever throw and plate orientation are built to the door's hand. Right hand and left hand are the two choices, and the wrong one will not operate correctly on the semi-active leaf.
9) Will the inside lever on this Emtek multi point trim sag over time?
Emtek's multi point trim now ships with a spring assist that returns the lever to neutral, which is what stops the drooping handle you see on older patio door trim.
10) Is Emtek 1424 trim suitable for a commercial entrance?
It is classed as residential hardware for swinging patio doors. For a commercial storefront or a code-driven egress opening, this is not the right family of trim.
