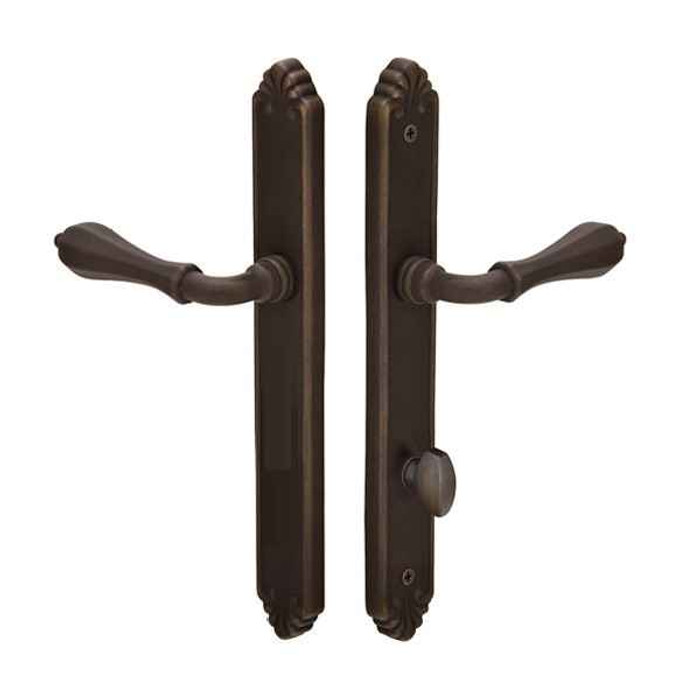

Emtek Emtek 1133 Multi Point Lock Trim (Door Config #1) - Lost Wax Cast Bronze Plates, Tuscany Style (1.5" x 11-1/8"), Non-Keyed American Style Thumbturn Inside EMTEK-1133

Emtek 1133 Multi Point Lock Trim (Door Config #1) - Lost Wax Cast Bronze Plates, Tuscany Style (1.5" x 11-1/8"), Non-Keyed American Style Thumbturn Inside

(No reviews yet) Write a Review

Model: 1133-MB
From the Tuscany Bronze Collection
$424.00
$339.20
Selected Finish is
Selected Lever Style is
Selected Handing is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$424.00
$339.20
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like



Specifications:

  • Door Configuration: Configuration #1
  • Material: Lost Wax Cast Bronze
  • Plate Style: Tuscany
  • Keyed: No
  • Function: Non-Keyed – Thumbturn Inside
  • Product Type: Multi Point Lock Trim



Emtek 1133 Multi Point Lock Trim (Door Config #1) - Lost Wax Cast Bronze Plates, Tuscany Style (1.5" x 11-1/8"), Non-Keyed American Style Thumbturn Inside

  • Can be ordered with any Lost Wax Cast Bronze Levers (any Tuscany Bronze Levers)
  • Swinging Patio Door Hardware. Set includes Plates, Handles
  • Multi Point Mortise Lock Box not included. Trims Only
  • Each Multi Point Lock Trim now includes the Spring Assist function which returns the lever to the neutral position and eliminates sagging handles.
Manufacturer Resources

Product Specs

Subcategory:
Multi Point Lock Trim
Product Group:
Mechanical Locks
Commercial/Residential:
Residential
Product Type:
Multi Point Lock Trim
Product Subgroup:
Multi Point Lock Trim
Collection:
Tuscany Bronze
Cylinder Position:
Below Handle
Door Configuration:
#1
Electronic:
No
Keyed:
No
Lock Type:
Multi Point Trim
Ref. Door Manufacturer(s):
Atrium, G-U, KML by Andersen, Andersen, Marvin Integrity, Paddock Lockmaster, Superior
Series:
Tuscany
Theme:
Tuscany
MAP Policy:
Yes
Product Model:
1133
(CTC) Center-to-Center:
3-5/8"
Product Function:
Non-Keyed American Style Thumbturn Inside
Product Size:
1-1/2" x 11-1/8"
Cylinder Classification:
American
Product Style:
Tuscany Bronze
Product Material:
Bronze
Product Category:
Mechanical Locks
Product Substrate:
Bronze
Department:
Door Hardware

Emtek 1133-MB – Frequently Asked Questions

1) Does the Emtek 1133 multi point trim include the multi point mortise lock body?
No. The Emtek 1133 is trim only, plates and handles, with the spring assist function built into the lever so it returns to neutral instead of sagging. You supply the multi point mortise lock box separately, and it has to be a lock that matches Door Configuration #1 with the cylinder below the handle.
2) What door brands does the Emtek 1133 Configuration #1 trim line up with?
Emtek lists Configuration #1 against multi point locks from Atrium, G-U, KML by Andersen, Andersen, Marvin Integrity, Paddock Lockmaster and Superior. Those are reference door manufacturers, so match the gearing on your actual lock: Config #1 means the cylinder hole sits below the handle at 3-5/8 inch center-to-center.
3) Will the Emtek 1133 trim cover my existing hole pattern on a swinging patio door?
It works where the handle and cylinder holes are 3-5/8 inches center-to-center with the cylinder below the handle. The escutcheon plates measure 1-1/2 by 11-1/8 inches, so they will only conceal prep that falls inside that footprint. If your existing trim has the cylinder above the handle or a different spacing, this is the wrong configuration.
4) Is the Emtek 1133 keyed, and how does it lock from inside?
Non-keyed. There is no cylinder in the 1133 set, and the inside is an American style thumbturn, so you operate the multi point gearing by hand from indoors. If you need key access from the exterior, choose a keyed version of the trim instead and specify an American cylinder, which is the classification this plate is cut for.
5) What do I have to specify when ordering the Emtek 1133 multi point trim?
Four things. Finish, either Flat Black Bronze (FB) or Medium Bronze (MB). Lever style, from Medici (MD), Napoli (NA), Octagon (OCL) or Padua (PD). Handing, right or left. And your door thickness, which is an optional entry but worth giving on a patio door so the spindle and screw pack suit the slab.
6) Is the Emtek 1133 rated for commercial entrance use?
Emtek classifies the 1133 Tuscany trim as residential. It is swinging patio door hardware for houses and multi-family units, not a graded commercial entry set. For a storefront or high-traffic commercial opening, look at a commercial mortise lock rather than multi point patio trim.
7) Will the Emtek 1133 bronze plates match other Tuscany bronze hardware in the house?
Yes, it sits in the Tuscany Bronze collection and the plates are lost wax cast bronze, so they carry the same cast texture and patina family as other Tuscany bronze pieces. The 1133 can be ordered with any Lost Wax Cast Bronze Tuscany lever, which is how you keep the patio door reading the same as the passage and entry sets.
8) Does handing matter on the Emtek 1133, and can I flip it in the field?
Handing is a required order choice, right hand or left hand, so pick it off the door before ordering rather than planning to reverse it on site. Stand outside the patio door: if the hinges are on your right, it is right hand.
9) Do the bronze finishes on the Emtek 1133 change over time?
Lost wax cast bronze is a living finish. Flat Black Bronze (FB) and Medium Bronze (MB) are both applied over solid cast bronze, so high-touch areas on the lever and plate will lighten with handling and the tone shifts as the metal wears in. Property managers replacing one door in a run should expect a new set to look darker than aged ones until it catches up.
10) Is the Emtek 1133 an electronic or smart lock trim?
No electronics. The 1133 is mechanical trim, non-keyed, with a thumbturn inside and no cylinder or keypad. If you want code or app access on a patio door, you need an electronic multi point solution, not this set.
