Emtek Emtek 1833 Multi Point Lock Trim (Door Config #8) - Lost Wax Cast Bronze Plates, Tuscany Style (1.5" x 11-1/8"), Non-Keyed American Style Thumbturn Inside EMTEK-1833

Emtek 1833 Multi Point Lock Trim (Door Config #8) - Lost Wax Cast Bronze Plates, Tuscany Style (1.5" x 11-1/8"), Non-Keyed American Style Thumbturn Inside

(No reviews yet) Write a Review

Model: 1833-MB
From the Tuscany Bronze Collection
$424.00
$339.20
Selected Finish is
Selected Lever Style is
Selected Handing is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$424.00
$339.20
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like



Specifications:

  • Door Configuration: Configuration #8
  • Material: Lost Wax Cast Bronze
  • Plate Style: Tuscany
  • Keyed: No
  • Function: Non-Keyed – Thumbturn Inside
  • Product Type: Multi Point Lock Trim

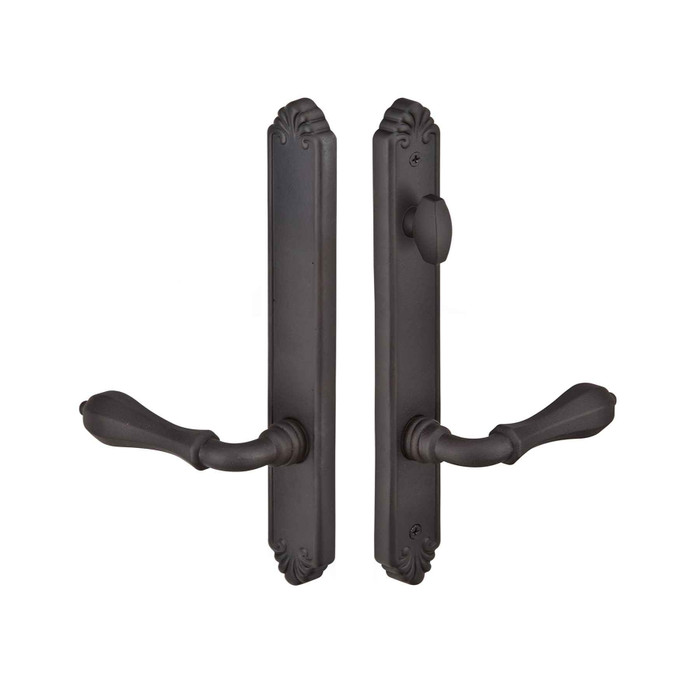

Emtek 1833 Multi Point Lock Trim (Door Config #8) - Lost Wax Cast Bronze Plates, Tuscany Style (1.5" x 11-1/8"), Non-Keyed American Style Thumbturn Inside

  • Can be ordered with any Lost Wax Cast Bronze Levers (any Tuscany Bronze Levers)
  • Swinging Patio Door Hardware. Set includes Plates, Handles
  • Multi Point Mortise Lock Box not included. Trims Only
  • Each Multi Point Lock Trim now includes the Spring Assist function which returns the lever to the neutral position and eliminates sagging handles.
Manufacturer Resources

Product Specs

Subcategory:
Multi Point Lock Trim
Product Group:
Mechanical Locks
Commercial/Residential:
Residential
Product Type:
Multi Point Lock Trim
Product Subgroup:
Multi Point Lock Trim
Collection:
Tuscany Bronze
Cylinder Position:
Above Handle
Door Configuration:
#8
Electronic:
No
Keyed:
No
Lock Type:
Multi Point Trim
Ref. Door Manufacturer(s):
Neuma Doors
Series:
Tuscany
Theme:
Tuscany
MAP Policy:
Yes
Product Model:
1833
(CTC) Center-to-Center:
5-1/4"
Product Function:
Non-Keyed American Style Thumbturn Inside
Product Size:
1-1/2" x 11-1/8"
Cylinder Classification:
American
Product Style:
Tuscany Bronze
Product Material:
Bronze
Product Category:
Mechanical Locks
Product Substrate:
Bronze
Department:
Door Hardware

Emtek 1833-MB – Frequently Asked Questions

1) Does the Emtek 1833 Tuscany multi point trim include the multi point lock itself?
No. The Emtek 1833 is trim only: plates and handles. The multi point mortise lock box has to come separately, normally from the door manufacturer who prepped the slab. If you are replacing tired handles on an existing swinging patio door and the lock body still works, trim only is exactly what you want.
2) What is Door Configuration #8 and how do I know my patio door matches it?
Configuration #8 describes the hole pattern in the door for this trim: an American style cylinder prep above the handle, with the plate holes on 5-1/4 inch center-to-center spacing. The 1833 is built to that layout only. Measure the existing prep on your door, cylinder position relative to the lever and the center-to-center dimension, and if it does not match #8 you need the Emtek trim cut for your configuration instead.
3) Is the inside of the Emtek 1833 keyed, or is it a thumbturn?
Thumbturn inside, no key. The function is non-keyed with an American style thumbturn on the interior, so you throw and retract the multi point lock from inside by hand. The exterior side carries the American cylinder prep above the handle. If your job calls for key access from both sides, this is the wrong function.
4) Do I have to choose a handing for this Emtek multi point trim, and what happens if I get it wrong?
Handing is required at order time, right hand or left hand. Multi point trim is not field reversible the way a basic passage set is, because the lever and thumbturn orientation is built to the hand of the door. Stand outside the door: if the hinges are on your right it is a right hand door. Getting it wrong means a return, not a fix on site.
5) Will this Emtek trim fit a Neuma patio door?
Neuma Doors is the reference door manufacturer for this trim, so the Configuration #8 prep corresponds to Neuma's multi point patio door layout. Confirm the cylinder sits above the lever and the plate holes measure 5-1/4 inch center-to-center on your actual slab before ordering, since a manufacturer can run more than one prep.
6) Which levers can I use with the Emtek 1833 Tuscany bronze plates?
Any Emtek Lost Wax Cast Bronze lever from the Tuscany Bronze collection pairs with these plates. The four lever choices offered with the trim are Medici, Napoli, Octagon and Padua. Keeping the lever inside the Tuscany Bronze family is what keeps the casting texture and finish consistent between the lever and the 1-1/2 by 11-1/8 inch plate.
7) What finishes does the Emtek 1833 Tuscany bronze trim come in?
Two: Flat Black Bronze (FB) and Medium Bronze (MB). Both are on Lost Wax Cast Bronze plates, which is a living finish, so on a south facing patio door it will darken and highlight over time rather than stay uniform. If you are matching other openings in the same house, order the entry trim and the interior bronze levers together so they age in step.
8) Why does the order form ask for door thickness on this multi point trim?
Because the spindle and cylinder length have to span your actual slab. Multi point patio doors are frequently thicker than a standard 1-3/4 inch interior door, so Emtek takes the thickness as a text entry rather than assuming it. Measure the door edge at the lock prep and enter that figure; it is optional on the form but worth supplying to avoid a short spindle.
9) Do Emtek multi point levers sag over time?
Every current Emtek multi point lock trim, including the 1833, ships with a spring assist that returns the lever to neutral. That is the feature that keeps a heavy cast bronze lever from drooping after a few seasons of use, which was the common complaint on older patio trim. If you are replacing sagging handles, this addresses the cause rather than just the look.
10) Is the Emtek 1833 suitable for a commercial entrance or apartment common door?
It is a residential product. The 1833 is swinging patio door hardware for houses, and Emtek classes it residential, with no ANSI commercial grade behind it. For a high traffic multi-family or commercial opening you want a Grade 1 or Grade 2 cylindrical or mortise lockset, not decorative multi point patio trim. It is a reasonable choice for single-family rentals and high-end condo patio doors.
11) Is this an electronic or smart lock trim?
No, the 1833 is entirely mechanical: cast bronze plates, lever, and a hand operated thumbturn inside. There is no motor, keypad, or wiring, so there is nothing to power and no prep for a transformer at the opening.
