Emtek 1433 Multi Point Lock Tr...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$424.00
$339.20

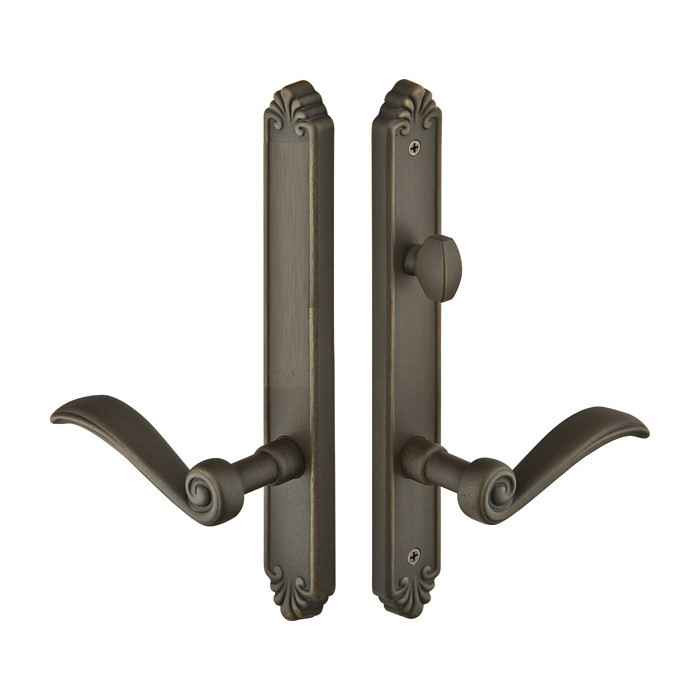

Emtek Emtek 1433 Multi Point Lock Trim (Door Config #4) - Lost Wax Cast Bronze Plates, Tuscany Style (1.5" x 11-1/8"), Non-Keyed American Style Thumbturn Inside EMTEK-1433

Emtek 1433 Multi Point Lock Trim (Door Config #4) - Lost Wax Cast Bronze Plates, Tuscany Style (1.5" x 11-1/8"), Non-Keyed American Style Thumbturn Inside

(No reviews yet) Write a Review

Model: 1433-MB
From the Tuscany Bronze Collection
$424.00
$339.20
Selected Finish is
Selected Lever Style is
Selected Handing is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$424.00
$339.20
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like



Specifications:

  • Door Configuration: Configuration #4
  • Material: Lost Wax Cast Bronze
  • Plate Style: Tuscany
  • Keyed: No
  • Function: Non-Keyed – Thumbturn Inside
  • Product Type: Multi Point Lock Trim



Emtek 1433 Multi Point Lock Trim (Door Config #4) - Lost Wax Cast Bronze Plates, Tuscany Style (1.5" x 11-1/8"), Non-Keyed American Style Thumbturn Inside

  • Can be ordered with any Lost Wax Cast Bronze Levers (any Tuscany Bronze Levers)
  • Swinging Patio Door Hardware. Set includes Plates, Handles
  • Multi Point Mortise Lock Box not included. Trims Only
  • Each Multi Point Lock Trim now includes the Spring Assist function which returns the lever to the neutral position and eliminates sagging handles.
Manufacturer Resources

Product Specs

Subcategory:
Multi Point Lock Trim
Product Group:
Mechanical Locks
Commercial/Residential:
Residential
Product Type:
Multi Point Lock Trim
Product Subgroup:
Multi Point Lock Trim
Collection:
Tuscany Bronze
Cylinder Position:
Above Handle
Door Configuration:
#4
Electronic:
No
Keyed:
No
Lock Type:
Multi Point Trim
Ref. Door Manufacturer(s):
Ashland, G-U, Caradco, JELD-WEN, Jeldwen Custom Collection (formerly Pozzi), Marvin, PGT, Premium Collection (formerly Norco), Weathershield
Series:
Tuscany
Theme:
Tuscany
MAP Policy:
Yes
Product Model:
1433
(CTC) Center-to-Center:
3-5/8"
Product Function:
Non-Keyed American Style Thumbturn Inside
Product Size:
1-1/2" x 11-1/8"
Cylinder Classification:
American
Product Style:
Tuscany Bronze
Product Material:
Bronze
Product Category:
Mechanical Locks
Product Substrate:
Bronze
Department:
Door Hardware

Emtek 1433-MB – Frequently Asked Questions

1) Does the Emtek 1433 Tuscany multi point trim include the multi point lock itself?
No. The Emtek 1433 is trim only, plates and handles. The multi point mortise lock box is not included, so you need the gearbox already in the door or ordered separately. It is meant to dress an existing swinging patio door multi point system.
2) What is Door Configuration #4 on Emtek multi point trim, and how do I know my door matches?
Configuration #4 refers to the layout of the trim: on the 1433 the cylinder sits above the handle, it takes an American style cylinder, and the plates measure 1-1/2 x 11-1/8 inches with a 3-5/8 inch center-to-center between the handle and the cylinder hole. Measure your existing door's handle-to-cylinder spacing and confirm the cylinder is above (not below) the lever before ordering.
3) Which patio door brands does this Emtek Tuscany multi point trim fit?
Emtek references this trim against Ashland, G-U, Caradco, JELD-WEN, Jeld-Wen Custom Collection (formerly Pozzi), Marvin, PGT, Premium Collection (formerly Norco) and Weathershield multi point systems. The deciding factors are still configuration #4 and the 3-5/8 inch center-to-center spacing on your door.
4) Is the Emtek 1433 keyed, and how does the inside lock?
The 1433 is the non-keyed version. There is no key cylinder supplied with it; the inside is an American style thumbturn that throws and retracts the multi point lock. If you need a keyed exterior, you want the keyed variant of this configuration instead.
5) What do I have to specify when ordering the Emtek 1433 Tuscany trim?
Four things. Finish, either Flat Black Bronze (FB) or Medium Bronze (MB). Lever style, from Medici, Napoli, Octagon or Padua. Handing, right hand or left hand. And your door thickness, which is an open field so you can give the actual measurement.
6) Do the Emtek 1433 levers sag over time like older patio handles?
Emtek now builds a spring assist into every multi point lock trim, which returns the lever to horizontal and stops the drooping handle problem common on older patio sets.
7) Can I mix a different Emtek lever with the 1433 Tuscany plates?
Any Emtek Lost Wax Cast Bronze lever from the Tuscany Bronze collection can be paired with these plates. The four offered on the trim are Medici, Napoli, Octagon and Padua, so you can match the levers already hung on the interior doors in the same house.
8) Is this Emtek bronze patio trim suitable for a commercial entrance?
It is classed residential. The 1433 is swinging patio door hardware in lost wax cast bronze for homes; for a commercial opening under traffic and code requirements you want a Grade 1 commercial lockset rather than multi point patio trim.
9) Does handing matter on the Emtek 1433, or can one part serve either door?
Handing must be chosen at order, right hand or left hand. On a pair of French patio doors the active leaf determines it, so establish which leaf carries the multi point gearbox and order to that leaf.
10) Will the two bronze finishes on the Emtek 1433 match across a whole house of Tuscany hardware?
The trim comes in Flat Black Bronze (FB) and Medium Bronze (MB), both part of the Tuscany Bronze collection, so they key to the same finish palette used across Emtek's cast bronze levers and knobs. Cast bronze finishes do vary batch to batch by nature of the material, so order the patio trim and matching levers together if the doors are in the same sightline.
11) Is the Emtek 1433 an electronic or smart lock trim?
No, it is purely mechanical. No wiring, no motor, no keypad: the thumbturn inside drives the multi point lock by hand.
