Emtek 1333 Multi Point Lock Tr...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$424.00
$339.20

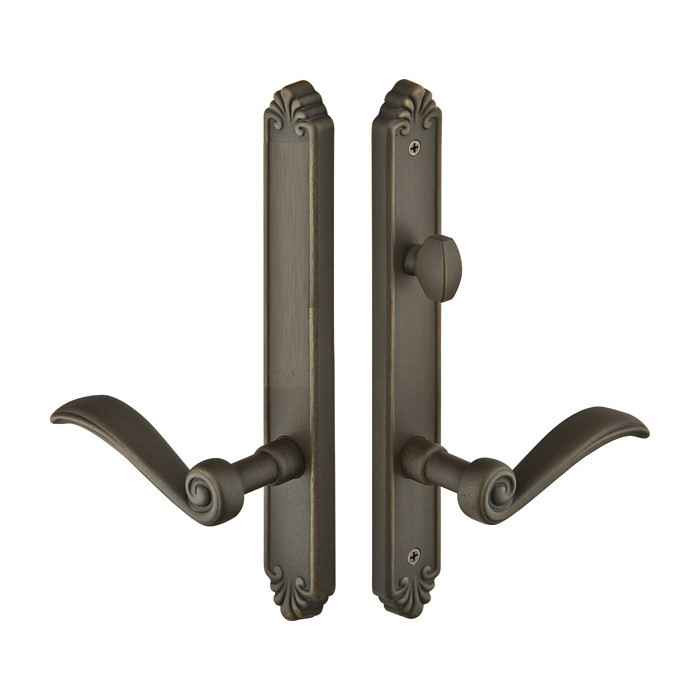

Emtek Emtek 1333 Multi Point Lock Trim (Door Config #3) - Lost Wax Cast Bronze Plates, Tuscany Style (1.5" x 11-1/8"), Non-Keyed American Style Thumbturn Inside EMTEK-1333

Emtek 1333 Multi Point Lock Trim (Door Config #3) - Lost Wax Cast Bronze Plates, Tuscany Style (1.5" x 11-1/8"), Non-Keyed American Style Thumbturn Inside

(No reviews yet) Write a Review

Model: 1333-MB
From the Tuscany Bronze Collection
$424.00
$339.20
Selected Finish is
Selected Lever Style is
Selected Handing is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$424.00
$339.20
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like



Specifications:

  • Door Configuration: Configuration #3
  • Material: Lost Wax Cast Bronze
  • Plate Style: Tuscany
  • Keyed: No
  • Function: Non-Keyed – Thumbturn Inside
  • Product Type: Multi Point Lock Trim



Emtek 1333 Multi Point Lock Trim (Door Config #3) - Lost Wax Cast Bronze Plates, Tuscany Style (1.5" x 11-1/8"), Non-Keyed American Style Thumbturn Inside

  • Can be ordered with any Lost Wax Cast Bronze Levers (any Tuscany Bronze Levers)
  • Swinging Patio Door Hardware. Set includes Plates, Handles
  • Multi Point Mortise Lock Box not included. Trims Only
  • Each Multi Point Lock Trim now includes the Spring Assist function which returns the lever to the neutral position and eliminates sagging handles.
Manufacturer Resources

Product Specs

Subcategory:
Multi Point Lock Trim
Product Group:
Mechanical Locks
Commercial/Residential:
Residential
Product Type:
Multi Point Lock Trim
Product Subgroup:
Multi Point Lock Trim
Collection:
Tuscany Bronze
Cylinder Position:
Above Handle
Door Configuration:
#3
Electronic:
No
Keyed:
No
Lock Type:
Multi Point Trim
Ref. Door Manufacturer(s):
Andersen
Series:
Tuscany
Theme:
Tuscany
MAP Policy:
Yes
Product Model:
1333
(CTC) Center-to-Center:
4-1/8"
Product Function:
Non-Keyed American Style Thumbturn Inside
Product Size:
1-1/2" x 11-1/8"
Cylinder Classification:
American
Product Style:
Tuscany Bronze
Product Material:
Bronze
Product Category:
Mechanical Locks
Product Substrate:
Bronze
Department:
Door Hardware

Emtek 1333-MB – Frequently Asked Questions

1) Does the Emtek 1333 multi point trim include the multi point mortise lock body?
No. The Emtek 1333 is trim only: plates and handles. The multi point mortise lock box is not included, so you need a working multi point lock already in the door or you must source one separately. Buyers replacing worn or dated handles on an existing swinging patio door are the usual case here.
2) What is Door Configuration #3 on Emtek multi point trim, and how do I know it matches my door?
Configuration #3 describes where the cylinder and thumbturn sit relative to the handle. On the 1333 the cylinder position is above the handle, and the interior side uses an American style thumbturn rather than a key. Center-to-center spacing is 4-1/8 inches, so measure from the center of your existing handle to the center of the cylinder hole. If that measurement is not 4-1/8 inches, you need a different Emtek configuration.
3) Is the Emtek 1333 keyed, and can I key it to match my other doors?
It is a non-keyed set. The interior gets an American style thumbturn and there is no cylinder supplied with the trim, so there is nothing to key alike. If you want key access from the outside on a patio door, choose a keyed Emtek multi point trim instead of the 1333.
4) Will the Emtek 1333 trim work on an Andersen patio door?
Andersen is the referenced door manufacturer for this trim, so it is built around that style of swinging patio door multi point lock. Confirm your opening matches Configuration #3 with the cylinder above the handle and 4-1/8 inch center-to-center spacing before ordering.
5) What do I have to specify when ordering the Emtek 1333 Tuscany trim?
Four things. Finish: Flat Black Bronze (FB) or Medium Bronze (MB). Lever style: Medici (MD), Napoli (NA), Octagon (OCL) or Padua (PD). Handing: right hand or left hand, which is required because patio door trim is not reversible. And your door thickness, which is an open text entry so the trim is built to your slab.
6) How big are the Tuscany plates on the Emtek 1333?
The plates measure 1-1/2 by 11-1/8 inches, a narrow escutcheon profile that suits the slim stiles typical of a swinging patio door. If your existing plate footprint is wider, the old screw holes and any finish shadow may show around the edges.
7) What is the Emtek 1333 made of, and is the bronze finish going to hold up outside?
The plates are lost wax cast bronze in the Tuscany Bronze collection, offered in Flat Black Bronze or Medium Bronze. Cast bronze is a living finish, so exterior exposure and handling will change the tone over time rather than chip like a plated coating. Worth noting for property managers: this is specified as residential hardware, not commercial duty.
8) My patio door lever droops. Does this Emtek trim fix that?
Yes, if the sag is in the trim rather than the lock body. Every Emtek multi point trim now ships with the Spring Assist function, which returns the lever to neutral and stops the handle from drooping. If the multi point lock box itself is worn, the trim alone will not correct it.
9) Can I mix a different lever design with the Emtek 1333 plates?
Any lost wax cast bronze Emtek lever can be ordered with it, meaning any Tuscany Bronze lever. The four offered on the 1333 are Medici, Napoli, Octagon and Padua. Keep to the cast bronze family so the casting texture and finish match the plates.
10) Is the Emtek 1333 an electronic or smart lock trim?
No, it is fully mechanical. There is no electronic option, no wiring and no battery pack, so it is mechanical thumbturn operation on the inside and handle operation of the multi point lock.
