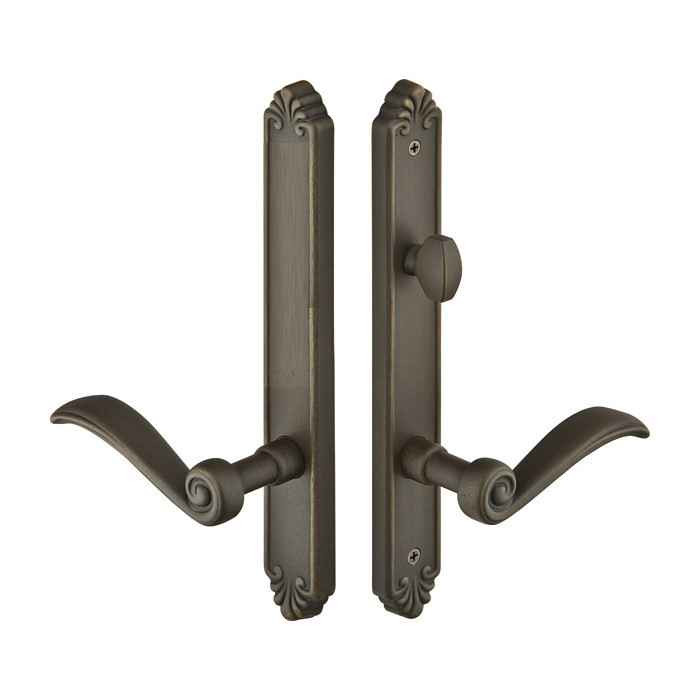

Emtek Emtek 1233 Multi Point Lock Trim (Door Config #2) - Lost Wax Cast Bronze Plates, Tuscany Style (1.5" x 11-1/8"), Non-Keyed American Style Thumbturn Inside EMTEK-1233

Emtek 1233 Multi Point Lock Trim (Door Config #2) - Lost Wax Cast Bronze Plates, Tuscany Style (1.5" x 11-1/8"), Non-Keyed American Style Thumbturn Inside

(No reviews yet) Write a Review

Model: 1233-MB
From the Tuscany Bronze Collection
$424.00
$339.20
Selected Finish is
Selected Lever Style is
Selected Handing is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$424.00
$339.20
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like



Specifications:

  • Door Configuration: Configuration #2
  • Material: Lost Wax Cast Bronze
  • Plate Style: Tuscany
  • Keyed: No
  • Function: Non-Keyed – Thumbturn Inside
  • Product Type: Multi Point Lock Trim



Emtek 1233 Multi Point Lock Trim (Door Config #2) - Lost Wax Cast Bronze Plates, Tuscany Style (1.5" x 11-1/8"), Non-Keyed American Style Thumbturn Inside

  • Can be ordered with any Lost Wax Cast Bronze Levers (any Tuscany Bronze Levers)
  • Swinging Patio Door Hardware. Set includes Plates, Handles
  • Multi Point Mortise Lock Box not included. Trims Only
  • Each Multi Point Lock Trim now includes the Spring Assist function which returns the lever to the neutral position and eliminates sagging handles.
Manufacturer Resources

Product Specs

Subcategory:
Multi Point Lock Trim
Product Group:
Mechanical Locks
Commercial/Residential:
Residential
Product Type:
Multi Point Lock Trim
Product Subgroup:
Multi Point Lock Trim
Collection:
Tuscany Bronze
Cylinder Position:
Above Handle
Door Configuration:
#2
Electronic:
No
Keyed:
No
Lock Type:
Multi Point Trim
Ref. Door Manufacturer(s):
BiltBest, G-U, Hurd (Energy Saver), Andersen
Series:
Tuscany
Theme:
Tuscany
MAP Policy:
Yes
Product Model:
1233
(CTC) Center-to-Center:
3-5/8"
Product Function:
Non-Keyed American Style Thumbturn Inside
Product Size:
1-1/2" x 11-1/8"
Cylinder Classification:
American
Product Style:
Tuscany Bronze
Product Material:
Bronze
Product Category:
Mechanical Locks
Product Substrate:
Bronze
Department:
Door Hardware

Emtek 1233-MB – Frequently Asked Questions

1) Does the Emtek 1233 Tuscany multi point trim include the multi point mortise lock body?
No. The 1233 is trim only: plates and handles. The multi point mortise lock box has to come separately, normally from the door manufacturer or as the existing lock already in the door. Buy this when the multi point mechanism in the patio door is sound and you are changing the look or replacing damaged trim.
2) Which door brands does the Emtek Config #2 multi point trim fit?
Configuration #2 trim is referenced to BiltBest, G-U, Hurd (Energy Saver) and Andersen multi point doors. The deciding dimensions are a 3-5/8 inch center-to-center between handle and cylinder hole with the cylinder above the handle. Measure your existing trim before ordering: if your spacing is anything other than 3-5/8 inch, you need a different Emtek configuration number.
3) Is there a key cylinder on this Emtek 1233 trim, or just a thumbturn?
Non-keyed. The inside gets an American style thumbturn to throw and retract the multi point locking points, and there is no cylinder supplied with the set. If the patio door needs to be keyed from outside, choose the keyed version of the Config #2 Tuscany trim instead, which takes an American cylinder above the handle.
4) What do I have to specify when ordering the Emtek 1233 Tuscany trim?
Four choices. Finish, in Flat Black Bronze (FB) or Medium Bronze (MB). Lever style, from Medici (MD), Napoli (NA), Octagon (OCL) or Padua (PD). Handing, right or left. And door thickness, which is an optional entry but worth giving so the spindle and fasteners suit the slab.
5) Does handing matter when ordering Emtek multi point lock trim?
It does, and handing is a required selection: right hand (RH) or left hand (LH). Stand outside the patio door and note which side the hinges are on. Getting it wrong on a multi point trim means the thumbturn rotation and lever orientation fight the lock, so confirm the hand before the order goes in.
6) Will the levers sag over time on this Emtek multi point patio door trim?
Each Emtek multi point lock trim now ships with a spring assist that returns the lever to neutral, which is what stops the drooping handle you see on older patio door trim. For a property manager replacing sagged trim on a swinging patio door, that is the practical reason to change the set rather than rebuild the old one.
7) What are the plate dimensions on the Emtek Tuscany multi point trim?
The Tuscany plates measure 1-1/2 x 11-1/8 inches. On a narrow patio door stile, hold that 1-1/2 inch plate width against the flat face of the stile before you commit, since glazing bead or a panel edge inside that width will keep the plate from sitting flush.
8) Can I match this trim to other Emtek bronze levers and hardware in the house?
Yes. The 1233 can be ordered with any Emtek lost wax cast bronze lever, so the patio door can carry the same Medici, Napoli, Octagon or Padua lever used on the interior Tuscany Bronze doors. Keep the finish consistent, FB or MB, across the openings.
9) Is this Emtek trim solid bronze or plated?
Lost wax cast bronze, solid material rather than a plated finish, offered in Flat Black Bronze and Medium Bronze. Cast bronze in these living finishes will patina with handling and weather on an exterior patio door, which is the intended look for the Tuscany Bronze collection.
10) Is the Emtek 1233 multi point trim suitable for a commercial entrance?
It is a residential product, built for swinging patio doors in homes. For a commercial storefront or a high-traffic institutional entry, spec a Grade 1 commercial mortise or exit device trim instead; this cast bronze patio trim is not the part for that duty.
11) Is this an electronic or keypad multi point trim?
No, the 1233 is fully mechanical. Operation is a lever with an inside thumbturn, no electronics, no wiring, no battery pack.
