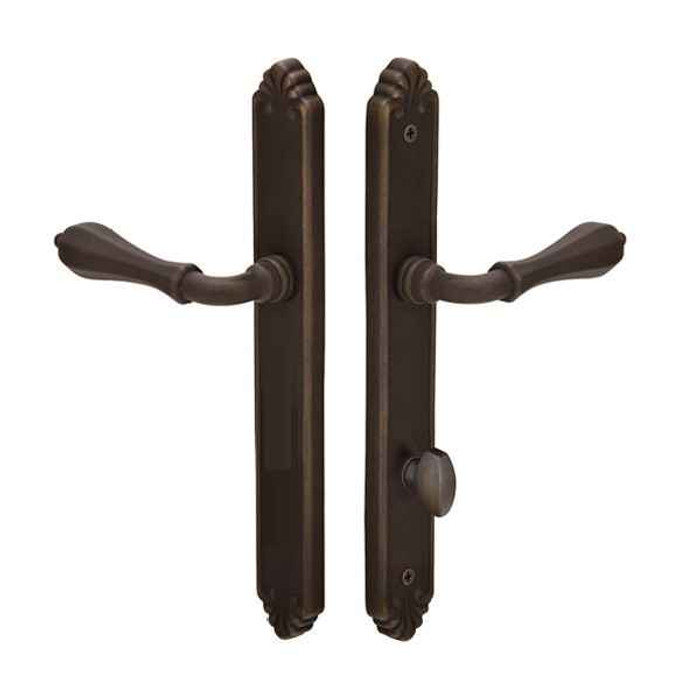

Emtek Emtek 1633 Multi Point Lock Trim (Door Config #6) - Lost Wax Cast Bronze Plates, Tuscany Style (1.5" x 11-1/8"), Non-Keyed American Style Thumbturn Inside EMTEK-1633

Emtek 1633 Multi Point Lock Trim (Door Config #6) - Lost Wax Cast Bronze Plates, Tuscany Style (1.5" x 11-1/8"), Non-Keyed American Style Thumbturn Inside

(No reviews yet) Write a Review

Model: 1633-MB
From the Tuscany Bronze Collection
$424.00
$339.20
Selected Finish is
Selected Lever Style is
Selected Handing is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$424.00
$339.20
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like



Specifications:

  • Door Configuration: Configuration #6
  • Material: Lost Wax Cast Bronze
  • Plate Style: Tuscany
  • Keyed: No
  • Function: Non-Keyed – Thumbturn Inside
  • Product Type: Multi Point Lock Trim



Emtek 1633 Multi Point Lock Trim (Door Config #6) - Lost Wax Cast Bronze Plates, Tuscany Style (1.5" x 11-1/8"), Non-Keyed American Style Thumbturn Inside

  • Can be ordered with any Lost Wax Cast Bronze Levers (any Tuscany Bronze Levers)
  • Swinging Patio Door Hardware. Set includes Plates, Handles
  • Multi Point Mortise Lock Box not included. Trims Only
  • Each Multi Point Lock Trim now includes the Spring Assist function which returns the lever to the neutral position and eliminates sagging handles.
Manufacturer Resources

Product Specs

Subcategory:
Multi Point Lock Trim
Product Group:
Mechanical Locks
Commercial/Residential:
Residential
Product Type:
Multi Point Lock Trim
Product Subgroup:
Multi Point Lock Trim
Collection:
Tuscany Bronze
Cylinder Position:
Below Handle
Door Configuration:
#6
Electronic:
No
Keyed:
No
Lock Type:
Multi Point Trim
Ref. Door Manufacturer(s):
Milgard, Pella
Series:
Tuscany
Theme:
Tuscany
MAP Policy:
Yes
Product Model:
1633
(CTC) Center-to-Center:
3-5/8"
Product Function:
Non-Keyed American Style Thumbturn Inside
Product Size:
1-1/2" x 11-1/8"
Cylinder Classification:
American
Product Style:
Tuscany Bronze
Product Material:
Bronze
Product Category:
Mechanical Locks
Product Substrate:
Bronze
Department:
Door Hardware

Emtek 1633-MB – Frequently Asked Questions

1) Does the Emtek 1633 multi point trim include the multi point lock itself?
No. The Emtek 1633 is trim only, the plates and handles for a swinging patio door. The multi point mortise lock box is a separate purchase. If your door does not already have a multi point lock installed in it, you need the lock body as well before this trim does anything.
2) What does Door Configuration #6 mean on Emtek multi point trim, and will it match my door?
Configuration #6 describes the layout of the plate: where the cylinder hole sits relative to the handle, and what goes on the inside. On the 1633 that means a non-keyed set with an American style thumbturn on the interior and the cylinder position below the handle. Measure your existing plate holes against the 3-5/8 inch center-to-center spacing before ordering, since the configuration number only matters if that spacing lines up with the lock body already in the door.
3) Can I key the Emtek 1633 patio door trim to match my other exterior doors?
Not this one. The 1633 is the non-keyed version, with a thumbturn on the interior and no key cylinder. If the patio door needs to be locked and unlocked with a key from outside, you want a keyed configuration instead. The cylinder classification on the family is American style, so a keyed Emtek multi point trim in this same series takes an American style mortise cylinder rather than a Euro profile.
4) What do I have to specify when ordering the Emtek 1633 Tuscany trim?
Four things. Finish, either Flat Black Bronze (FB) or Medium Bronze (MB). Lever style, from Medici (MD), Napoli (NA), Octagon (OCL) or Padua (PD). Handing, right or left. And your door thickness, which is an optional text entry. Get the handing right off the door as it swings toward you; a multi point trim is not something you flip in the field.
5) Will Emtek 1633 trim work on a Milgard or Pella patio door?
Milgard and Pella are the reference door manufacturers Emtek cites for this multi point trim. That is a starting point, not a blanket yes, because both makers use more than one multi point lock body. Confirm the configuration on the door matches #6 and that the hole spacing is 3-5/8 inches center-to-center before ordering.
6) How big are the Emtek 1633 escutcheon plates?
The Tuscany style plates measure 1-1/2 by 11-1/8 inches. That is a narrow plate, which matters on patio and French doors where the stile is slim. Hold the dimension against the flat of your door stile before you commit, and against the footprint of whatever plate is coming off, since anything wider than 1-1/2 inches leaves an unfinished outline behind.
7) Is the Emtek 1633 rated for commercial use?
It is residential hardware, built for swinging patio doors in homes. For a multi-family entry corridor or a commercial opening with real traffic, this is not the product line to standardize on.
8) My old patio door lever droops. Does the Emtek 1633 fix sagging handles?
Yes. Every current Emtek multi point trim, including the 1633, ships with a spring assist that returns the lever to neutral. Sagging levers on multi point doors usually come from the weight of the handle working against a lock body with no return spring, and the spring assist in the trim is what stops it.
9) What is the Emtek 1633 made of, and does the finish hold up outside?
Lost wax cast bronze, solid bronze substrate rather than plated zinc. It comes in Flat Black Bronze and Medium Bronze, both living finishes in the Tuscany Bronze collection, so the exterior side will patina and darken with weather and hand traffic over time. That change is normal for cast bronze and is not a coating failure.
10) Can I mix a different lever style with the Emtek 1633 Tuscany bronze plates?
Any Lost Wax Cast Bronze lever in the Tuscany bronze range pairs with these plates. On the order form the choices are Medici, Napoli, Octagon and Padua. What you cannot do is combine these cast bronze plates with a lever from a different Emtek material family and expect the finishes to match.
