Specifications:
- Door Configuration: Configuration #1
- Material: Lost Wax Cast Bronze
- Plate Style: Tuscany
- Keyed: No
- Function: Non-Keyed – Fixed Handle Outside / Operating Handle Inside (Semi-Active)
- Product Type: Multi Point Lock Trim

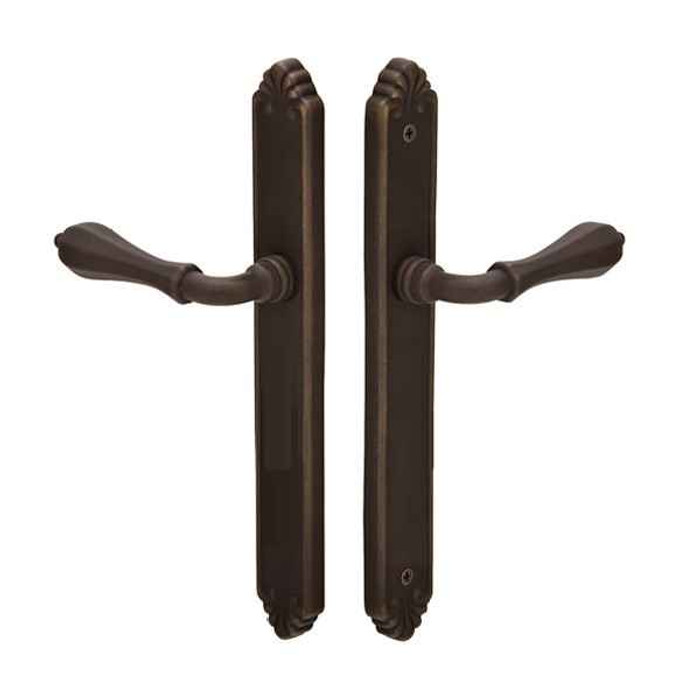

Emtek 1134 Multi Point Lock Trim (Door Config #1) - Lost Wax Cast Bronze Plates, Tuscany Style (1.5" x 11-1/8"), Non-Keyed Fixed Handle Outside, Operating Handle Inside (for Semi-Active Door)
- Can be ordered with any Lost Wax Cast Bronze Levers (any Tuscany Bronze Levers)
- Swinging Patio Door Hardware. Set includes Plates, Handles
- Multi Point Mortise Lock Box not included. Trims Only
- Each Multi Point Lock Trim now includes the Spring Assist function which returns the lever to the neutral position and eliminates sagging handles.
Manufacturer Resources
Emtek Multi Point Pocket Booket
Product Specs
- Subcategory:
- Multi Point Lock Trim
- Product Group:
- Mechanical Locks
- Commercial/Residential:
- Residential
- Product Type:
- Multi Point Lock Trim
- Product Subgroup:
- Multi Point Lock Trim
- Collection:
- Tuscany Bronze
- Cylinder Position:
- Below Handle
- Door Configuration:
- #1
- Electronic:
- No
- Keyed:
- No
- Lock Type:
- Multi Point Trim
- Ref. Door Manufacturer(s):
- Atrium, G-U, KML by Andersen, Andersen, Marvin Integrity, Paddock Lockmaster, Superior
- Series:
- Tuscany
- Theme:
- Tuscany
- MAP Policy:
- Yes
- Product Model:
- 1134
- (CTC) Center-to-Center:
- 3-5/8"
- Product Function:
- Non-Keyed Fixed Handle Outside, Operating Handle Inside
- Product Size:
- 1-1/2" x 11-1/8"
- Cylinder Classification:
- American
- Product Style:
- Tuscany Bronze
- Product Material:
- Bronze
- Product Category:
- Mechanical Locks
- Product Substrate:
- Bronze
- Department:
- Door Hardware
Emtek 1134-MB – Frequently Asked Questions
1) Does the Emtek 1134 multi point trim include the multi point lock mechanism, or is it just the handles and plates?
Trim only. The Emtek 1134 set includes the plates and handles; the multi point mortise lock box is not included. You need to supply or reuse the multi point gearbox in the door, then dress it with this trim.
2) What is the center-to-center spacing on the Emtek 1134 trim, and will it line up with my existing multi point door prep?
The 1134 trim is drilled at 3-5/8 inch center-to-center between the handle and the lower hole position, with a plate measuring 1-1/2 x 11-1/8 inches. Measure your existing gearbox spindle-to-cylinder spacing; if it is 3-5/8 inch this trim matches. It is set up as Door Configuration #1 with the cylinder position below the handle and an American cylinder format.
3) Which patio door brands does the Emtek Tuscany multi point trim reference for fit?
Emtek lists this trim against multi point systems from Atrium, G-U, KML by Andersen, Andersen, Marvin Integrity, Paddock Lockmaster, and Superior. Confirm your gearbox is Configuration #1 with 3-5/8 inch center-to-center spacing before ordering, since the same door brand can ship more than one gear.
4) What do I have to specify when ordering the Emtek 1134 trim?
Four choices. Finish: Flat Black Bronze (FB) or Medium Bronze (MB). Lever style: Medici, Napoli, Octagon, or Padua. Handing: right hand or left hand. And your door thickness, which is entered as a text field so the spindle and screw pack suit the slab.
5) Do I need to know the handing before ordering this Emtek multi point trim?
Yes, handing is required. Because the outside handle is fixed and only the inside lever operates, the set is built left hand or right hand and cannot be flipped in the field. Stand outside the door: if the hinges are on your right it is a right hand door.
6) Will the Emtek 1134 match my other Tuscany bronze door hardware?
It is part of the Tuscany Bronze collection, cast in solid bronze by the lost wax method, and it can be ordered with any Emtek lost wax cast bronze lever in that family. Finish choices are Flat Black Bronze and Medium Bronze, so a whole house of Tuscany levers, entry sets and this patio door trim can be run in one finish.
7) Is the Emtek 1134 multi point trim suitable for a commercial building entrance?
It is classed as residential hardware, made for swinging patio doors, and it is mechanical with no electronic option. For a commercial opening that needs a graded, cycle-rated lockset, this is not the right part.
8) Do Emtek multi point levers sag over time?
Current production of this trim ships with a spring assist built in, which returns the lever to horizontal and is there specifically to stop the drooping handle problem on tall patio door trim. Nothing extra to order for it.
