Specifications:
- Door Configuration: Configuration #4
- Material: Lost Wax Cast Bronze
- Plate Style: Tuscany
- Keyed: No
- Function: Non-Keyed – Fixed Handle Outside / Operating Handle Inside (Semi-Active)
- Product Type: Multi Point Lock Trim

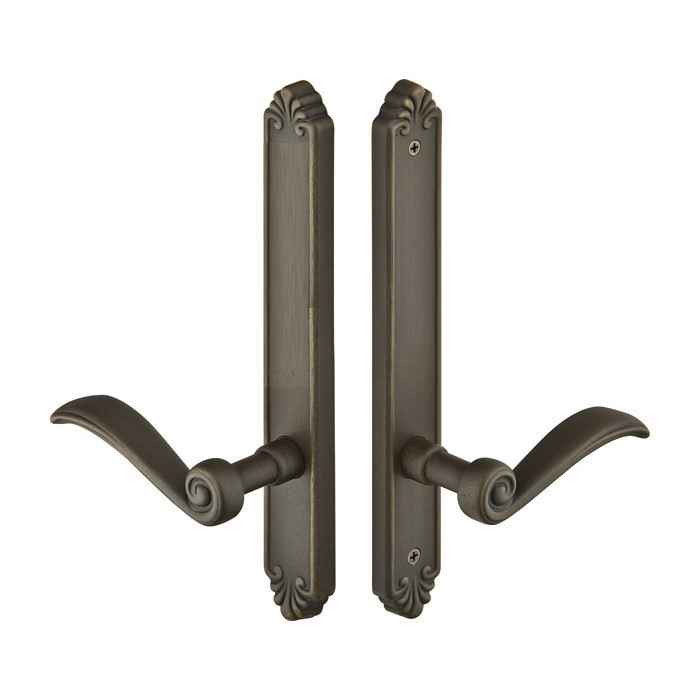

Emtek 1434 Multi Point Lock Trim (Door Config #4) - Lost Wax Cast Bronze Plates, Tuscany Style (1.5" x 11-1/8"), Non-Keyed Fixed Handle Outside, Operating Handle Inside (for Semi-Active Door)
- Can be ordered with any Lost Wax Cast Bronze Levers (any Tuscany Bronze Levers)
- Swinging Patio Door Hardware. Set includes Plates, Handles
- Multi Point Mortise Lock Box not included. Trims Only
- Each Multi Point Lock Trim now includes the Spring Assist function which returns the lever to the neutral position and eliminates sagging handles.
Manufacturer Resources
Emtek Multi Point Pocket Booket
Product Specs
- Subcategory:
- Multi Point Lock Trim
- Product Group:
- Mechanical Locks
- Commercial/Residential:
- Residential
- Product Type:
- Multi Point Lock Trim
- Product Subgroup:
- Multi Point Lock Trim
- Collection:
- Tuscany Bronze
- Cylinder Position:
- Above Handle
- Door Configuration:
- #4
- Electronic:
- No
- Keyed:
- No
- Lock Type:
- Multi Point Trim
- Ref. Door Manufacturer(s):
- Ashland, G-U, Caradco, JELD-WEN, Jeldwen Custom Collection (formerly Pozzi), Marvin, PGT, Premium Collection (formerly Norco), Weathershield
- Series:
- Tuscany
- Theme:
- Tuscany
- MAP Policy:
- Yes
- Product Model:
- 1434
- (CTC) Center-to-Center:
- 3-5/8"
- Product Function:
- Non-Keyed Fixed Handle Outside, Operating Handle Inside
- Product Size:
- 1-1/2" x 11-1/8"
- Cylinder Classification:
- American
- Product Style:
- Tuscany Bronze
- Product Material:
- Bronze
- Product Category:
- Mechanical Locks
- Product Substrate:
- Bronze
- Department:
- Door Hardware
Emtek 1434-MB – Frequently Asked Questions
1) Does the Emtek 1434 multi point trim include the lock body, or is it handles and plates only?
Trim only. The Emtek 1434 set is plates and handles for a swinging patio door; the multi point mortise lock box is not included. You order the gearbox separately to match your door manufacturer's prep.
2) What does Door Configuration #4 mean on Emtek multi point trim?
Configuration #4 is the non-keyed semi-active door setup: a fixed (dummy) handle on the exterior and an operating lever on the interior. On a pair of patio doors, that is the leaf you do not use daily, while the active leaf takes a keyed configuration.
3) Will the Emtek 1434 trim fit my existing multi point patio door hardware prep?
It is built to the common multi point prep with 3-5/8 inch center-to-center between the handle and the cylinder hole, cylinder position above the handle, American cylinder format. Referenced door manufacturers include Ashland, G-U, Caradco, JELD-WEN, JELD-WEN Custom Collection (formerly Pozzi), Marvin, PGT, Premium Collection (formerly Norco) and Weathershield. Measure your existing hole spacing against 3-5/8 inches before ordering.
4) Do I need to specify handing for the Emtek 1434 Tuscany trim?
Yes, handing is required. You pick right hand or left hand at order time, along with lever style and your door thickness. Get the handing wrong on a patio pair and the lever pitches the wrong way.
5) Can the Emtek 1434 be keyed or used on the active patio door leaf?
No. The 1434 is non-keyed with a fixed exterior handle, so it belongs on the semi-active leaf. The active leaf needs a keyed configuration trim; this one takes no cylinder even though the prep locates a cylinder above the handle.
6) How big are the Emtek 1434 Tuscany escutcheon plates?
The Tuscany plates measure 1-1/2 by 11-1/8 inches, a narrow profile that suits the slim stiles typical of swinging patio doors. They are lost wax cast bronze.
7) What finishes and levers can I get on the Emtek Tuscany 1434 trim?
Two bronze finishes: Flat Black Bronze (FB) and Medium Bronze (MB). Lever choice is Medici, Napoli, Octagon or Padua, and because the plates are lost wax cast bronze they can be ordered with any Tuscany bronze lever.
8) Will the lever on this Emtek trim sag over time?
Emtek's multi point trim now ships with a spring assist that returns the lever to neutral, which is what stops the drooping handle you see on older patio door trim.
9) Is the Emtek 1434 trim rated for commercial openings?
It is a residential product, intended for swinging patio doors in homes. For a commercial entrance you want commercial-grade multi point or mortise hardware instead.
10) Is this Emtek multi point trim electronic or smart-lock compatible?
No, the 1434 is purely mechanical trim. No electronics, no motor, no keypad.
