Emtek 1634 Multi Point Lock Tr...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$424.00
$339.20

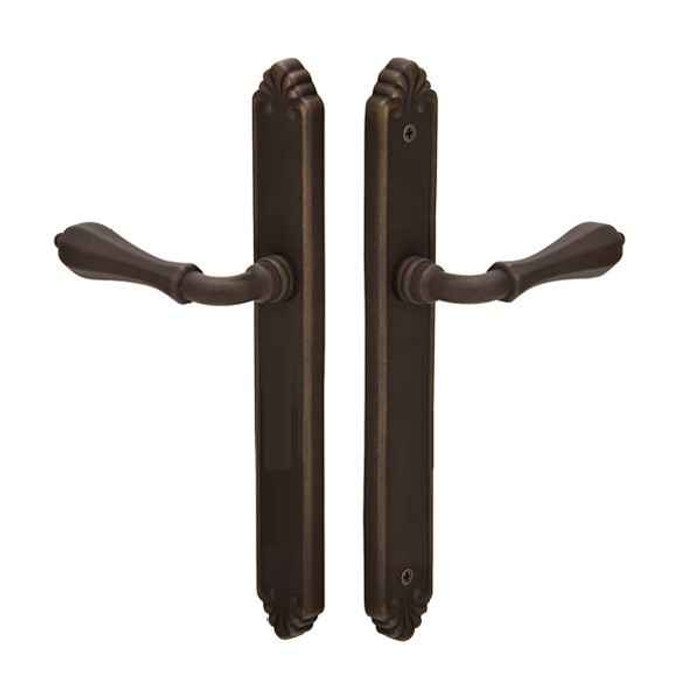

Emtek Emtek 1634 Multi Point Lock Trim (Door Config #6) - Lost Wax Cast Bronze Plates, Tuscany Style (1.5" x 11-1/8"), Non-Keyed Fixed Handle Outside, Operating Handle Inside (for Semi-Active Door) EMTEK-1634

Emtek 1634 Multi Point Lock Trim (Door Config #6) - Lost Wax Cast Bronze Plates, Tuscany Style (1.5" x 11-1/8"), Non-Keyed Fixed Handle Outside, Operating Handle Inside (for Semi-Active Door)

(No reviews yet) Write a Review

Model: 1634-MB
From the Tuscany Bronze Collection
$424.00
$339.20
Selected Finish is
Selected Lever Style is
Selected Handing is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$424.00
$339.20
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like



Specifications:

  • Door Configuration: Configuration #6
  • Material: Lost Wax Cast Bronze
  • Plate Style: Tuscany
  • Keyed: No
  • Function: Non-Keyed – Fixed Handle Outside / Operating Handle Inside (Semi-Active)
  • Product Type: Multi Point Lock Trim



Emtek 1634 Multi Point Lock Trim (Door Config #6) - Lost Wax Cast Bronze Plates, Tuscany Style (1.5" x 11-1/8"), Non-Keyed Fixed Handle Outside, Operating Handle Inside (for Semi-Active Door)

  • Can be ordered with any Lost Wax Cast Bronze Levers (any Tuscany Bronze Levers)
  • Swinging Patio Door Hardware. Set includes Plates, Handles
  • Multi Point Mortise Lock Box not included. Trims Only
  • Each Multi Point Lock Trim now includes the Spring Assist function which returns the lever to the neutral position and eliminates sagging handles.
Manufacturer Resources

Product Specs

Subcategory:
Multi Point Lock Trim
Product Group:
Mechanical Locks
Commercial/Residential:
Residential
Product Type:
Multi Point Lock Trim
Product Subgroup:
Multi Point Lock Trim
Collection:
Tuscany Bronze
Cylinder Position:
Below Handle
Door Configuration:
#6
Electronic:
No
Keyed:
No
Lock Type:
Multi Point Trim
Ref. Door Manufacturer(s):
Milgard, Pella
Series:
Tuscany
Theme:
Tuscany
MAP Policy:
Yes
Product Model:
1634
(CTC) Center-to-Center:
3-5/8"
Product Function:
Non-Keyed Fixed Handle Outside, Operating Handle Inside
Product Size:
1-1/2" x 11-1/8"
Cylinder Classification:
American
Product Style:
Tuscany Bronze
Product Material:
Bronze
Product Category:
Mechanical Locks
Product Substrate:
Bronze
Department:
Door Hardware

Emtek 1634-MB – Frequently Asked Questions

1) Does the Emtek 1634 multi point trim include the multi point mortise lock body?
No. The Emtek 1634 is trim only: plates and handles. The multi point mortise lock box has to be sourced separately, so you need the door manufacturer's lock body already in the door or ordered alongside. Plan on that before you set an install date.
2) What is Door Configuration #6 on an Emtek multi point trim, and which door does it go on?
Configuration #6 is the non-keyed setup: a fixed (dummy) handle on the exterior with an operating lever on the interior. That is the semi-active leaf of a pair of swinging patio doors, the one you normally keep shut and only open when you need the full width. The active leaf takes a keyed configuration instead.
3) Will the Emtek 1634 trim line up with my existing multi point lock holes?
The critical number is the 3-5/8 inch center-to-center between the handle spindle and the cylinder position, with the cylinder location below the handle. Measure that spacing on your existing door prep. The plates themselves are 1-1/2 x 11-1/8 inches, so they will cover a prep within that footprint. Emtek references this configuration against Milgard and Pella doors.
4) Do I have to specify handing when ordering the Emtek 1634?
Yes, handing is a required choice, right hand or left hand. On a pair of patio doors the semi-active leaf is whichever one carries the flush bolts, so determine handing from the door as it stands and order to match. There is no field-reversible option here.
5) What lever styles and finishes can I get on the Emtek 1634 Tuscany bronze trim?
Lever choice is required at order and covers four Tuscany bronze levers: Medici, Napoli, Octagon, and Padua. Plate finish comes in Flat Black Bronze (FB) and Medium Bronze (MB). Because the plates are lost wax cast bronze in the Tuscany Bronze collection, any Tuscany bronze lever will mate with them.
6) Do I need to key the Emtek 1634, and what cylinder does it take?
No cylinder is involved on this one. Configuration #6 is non-keyed, so there is nothing to key or match to an existing key. If you need a keyed exterior on the active leaf of the same pair, look to a keyed Emtek multi point configuration, which uses an American style cylinder positioned below the handle.
7) Will the interior lever on this Emtek patio door trim sag over time?
Emtek multi point trim now ships with a spring assist that returns the lever to neutral, which is what stops the droopy-handle problem on heavy patio levers. That applies to the operating lever on the interior side; the exterior handle on this configuration is fixed and does not rotate at all.
8) Is the Emtek 1634 trim suitable for a commercial opening?
It is classed as residential hardware, made for swinging patio doors. For an apartment or condo patio door it is a fit; for a commercial entry with traffic and code-rated hardware requirements, specify a commercial lockset instead.
9) Do I need to give my door thickness when ordering Emtek multi point trim?
Door thickness is an optional entry on the order, but on a patio door it is worth supplying: the spindle and through-bolt lengths have to suit the slab. Measure the actual leaf, not the frame, and pass the figure along with your lever and handing selections.
10) Is the Emtek 1634 solid bronze or plated?
Solid lost wax cast bronze, both substrate and material, in the Tuscany style plate. That is a cast part rather than a plated zinc or brass shell, which is why the Medium Bronze and Flat Black Bronze finishes wear the way cast bronze does on an exterior patio door.
