Emtek 11A2 Multi Point Lock Tr...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$381.00
$304.80
Emtek Emtek 11A2 Multi Point Lock Trim (Door Config #1) - Brass Plates, Modern Style (1.5" x 11"), Non-Keyed Passage EMTEK-11A2

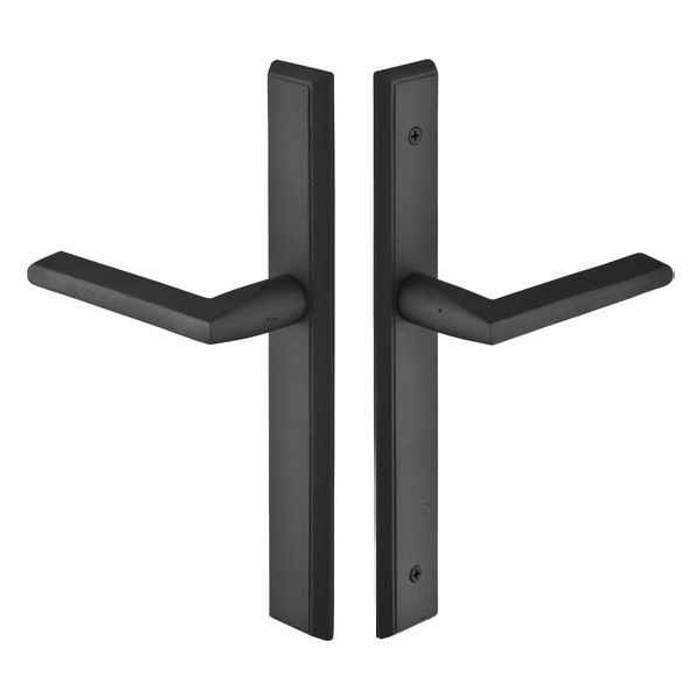

Emtek 11A2 Multi Point Lock Trim (Door Config #1) - Brass Plates, Modern Style (1.5" x 11"), Non-Keyed Passage

(No reviews yet) Write a Review

Model: 11A2-US19
From the Brass Collection
$381.00
$304.80
Selected Finish is
Selected Lever Style is
Selected Handing is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$381.00
$304.80
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like



Specifications:

  • Backset: Adjustable 2-3/8" or 2-3/4"
  • Cross Bore: 2-1/8"
  • Door Thickness: 1-3/8" to 1-3/4"
  • Latch Faceplate: Round or Square Corner
  • Material: Brass



Emtek 11A2 Multi Point Lock Trim (Door Config #1) - Brass Plates, Modern Style (1.5" x 11"), Non-Keyed Passage


  • Can be ordered with any Brass Levers
  • Swinging Patio Door Hardware. Set includes Plates, Handles
  • Multi Point Mortise Lock Box not included. Trims Only
  • Each Multi Point Lock Trim now includes the Spring Assist function which returns the lever to the neutral position and eliminates sagging handles.
Manufacturer Resources

Product Specs

Subcategory:
Multi Point Lock Trim
Product Group:
Mechanical Locks
Commercial/Residential:
Residential
Product Type:
Multi Point Lock Trim
Product Subgroup:
Multi Point Lock Trim
Collection:
Brass
Cylinder Position:
Below Handle
Door Configuration:
#1
Electronic:
No
Keyed:
No
Lock Type:
Multi Point Trim
Ref. Door Manufacturer(s):
Atrium, G-U, KML by Andersen, Andersen, Marvin Integrity, Paddock Lockmaster, Superior
Series:
Modern
Theme:
Contemporary
Keyed Function:
Non-Keyed
Lock Function:
Passage
MAP Policy:
Yes
Product Model:
11A2
(CTC) Center-to-Center:
3-5/8"
Product Function:
Non-Keyed Passage
Product Size:
1-1/2" x 11"
Cylinder Classification:
American
Product Style:
Modern
Product Material:
Brass
Product Category:
Mechanical Locks
Product Substrate:
Brass
Department:
Door Hardware

Emtek 11A2-US19 – Frequently Asked Questions

1) Does the Emtek 11A2 multi point trim include the multi point lock itself?
No. The 11A2 is trim only: plates and handles. The multi point mortise lock box is not included, so you need the gearbox already in the door or ordered separately. It's swinging patio door hardware, meant to dress a multi point lock that is already installed.
2) Will Emtek 11A2 trim fit my Andersen or Marvin patio door multi point lock?
Emtek lists the 11A2 trim against multi point locks from Atrium, G-U, KML by Andersen, Andersen, Marvin Integrity, Paddock Lockmaster and Superior. The matching detail that decides it is Door Configuration #1 and the 3-5/8 inch center-to-center between the handle and the cylinder position below the handle. Measure that CTC on your existing gearbox before ordering.
3) Is the 11A2 passage trim lockable, and what should I use on an exterior patio door instead?
Passage only, non-keyed. There is no cylinder and no key in the 11A2, so it operates the handles and nothing more. On a door that needs to lock from the outside, choose a keyed version of the Emtek multi point trim in the same Door Configuration #1 with an American cylinder below the handle. The non-keyed passage version suits an interior swinging patio door or one where a separate lock handles security.
4) What door thickness does the Emtek 11A2 trim work on?
It covers 1-3/8 inch through 1-3/4 inch doors, which spans the usual residential patio door range. There's a door thickness field on the order, so state your actual measured thickness when you place it. Backset is adjustable 2-3/8 or 2-3/4 inch and the cross bore is 2-1/8 inch.
5) What do I have to pick when ordering the Emtek 11A2 besides finish?
Three choices beyond finish: lever style (over 50 options, from L-Square, T-Bar and R-Bar in Faceted, Hammered, Knurled, Tribeca, Straight Knurled and White Marble, through named levers like Athena, Poseidon, Geneva, Milano, Rope and Arts and Crafts), handing, and your door thickness. Any brass lever can be paired with the brass plates. The latch faceplate comes round or square corner to match the existing door prep.
6) Do the Emtek Modern multi point handles sag over time?
Each multi point lock trim now ships with Emtek's Spring Assist function, which returns the lever to neutral and stops the handle from drooping. That matters on patio door trim, where a long lever on a tall plate is the classic sagging complaint.
7) What size are the plates on the Emtek 11A2 Modern trim?
The plates measure 1-1/2 by 11 inches, a narrow rectangular Modern-style escutcheon. That width is what lets it sit on a typical patio door stile, and it's worth checking against the existing plate footprint if you're covering old screw holes or a previous trim outline.
8) Is the Emtek 11A2 multi point trim suitable for a commercial building entrance?
It's residential hardware. Emtek classifies the 11A2 as residential, and it's solid brass trim for swinging patio doors, not a graded commercial lockset. For a commercial opening with traffic and code requirements, look at a Grade 1 mortise or cylindrical lock line instead.
9) What finishes does the Emtek 11A2 brass multi point trim come in, and will it match my other door hardware?
Seven finishes: Oil Rubbed Bronze (US10B), Polished Nickel Lifetime (US14), Satin Nickel (US15), Flat Black (US19), Polished Chrome (US26), Unlacquered Brass (US3NL) and Satin Brass (US4). These are standard Emtek brass-collection finishes, so matching entry sets, levers and knobs from the same Emtek brass line is straightforward. Note that Unlacquered Brass is a living finish and will patina rather than stay bright.
10) Is the Emtek 11A2 an electronic or smart lock trim?
No, it's fully mechanical. No electronics, no keypad, no wiring, and no power required. The handles operate the multi point gearbox by hand.
