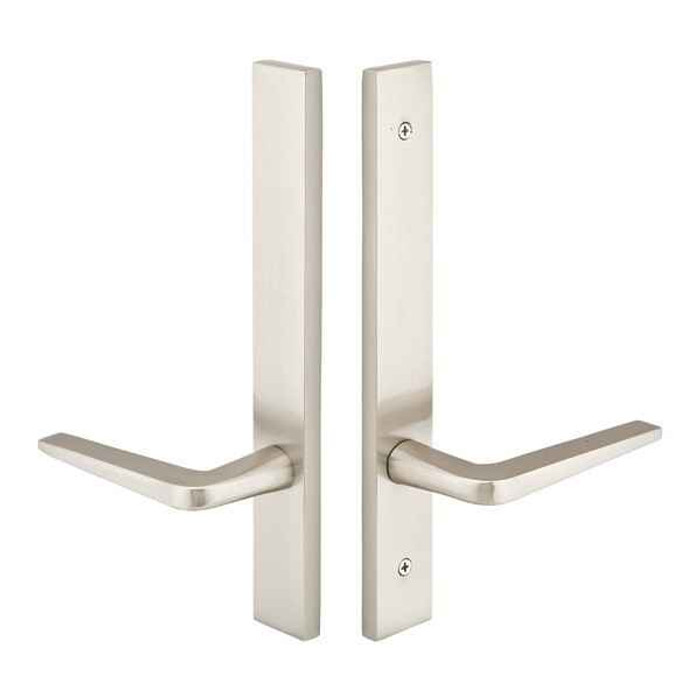

Emtek Emtek 13A2 Multi Point Lock Trim (Door Config #3) - Brass Plates, Modern Style (1.5" x 11"), Non-Keyed Passage EMTEK-13A2

Emtek 13A2 Multi Point Lock Trim (Door Config #3) - Brass Plates, Modern Style (1.5" x 11"), Non-Keyed Passage

(No reviews yet) Write a Review

Model: 13A2-US19
From the Brass Collection
$374.00
$299.20
Selected Finish is
Selected Lever Style is
Selected Handing is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$374.00
$299.20
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like



Specifications:

  • Backset: Adjustable 2-3/8" or 2-3/4"
  • Cross Bore: 2-1/8"
  • Door Thickness: 1-3/8" to 1-3/4"
  • Latch Faceplate: Round or Square Corner
  • Material: Brass



Emtek 13A2 Multi Point Lock Trim (Door Config #3) - Brass Plates, Modern Style (1.5" x 11"), Non-Keyed Passage

  • Can be ordered with any Brass Levers
  • Swinging Patio Door Hardware. Set includes Plates, Handles
  • Multi Point Mortise Lock Box not included. Trims Only
  • Each Multi Point Lock Trim now includes the Spring Assist function which returns the lever to the neutral position and eliminates sagging handles.
Manufacturer Resources

Product Specs

Subcategory:
Multi Point Lock Trim
Product Group:
Mechanical Locks
Commercial/Residential:
Residential
Product Type:
Multi Point Lock Trim
Product Subgroup:
Multi Point Lock Trim
Collection:
Brass
Cylinder Position:
Above Handle
Door Configuration:
#3
Electronic:
No
Keyed:
No
Lock Type:
Multi Point Trim
Ref. Door Manufacturer(s):
Andersen
Series:
Modern
Theme:
Contemporary
Keyed Function:
Non-Keyed
Lock Function:
Passage
MAP Policy:
Yes
Product Model:
13A2
(CTC) Center-to-Center:
4-1/8"
Product Function:
Non-Keyed Passage
Product Size:
1-1/2" x 11"
Cylinder Classification:
American
Product Style:
Modern
Product Material:
Brass
Product Category:
Mechanical Locks
Product Substrate:
Brass
Department:
Door Hardware

Emtek 13A2-US19 – Frequently Asked Questions

1) What is Door Configuration #3 on an Emtek multi point trim, and how do I know it matches my door?
Configuration #3 on the 13A2 is the layout of the plate: a non-keyed passage trim with the cylinder position above the handle and 4-1/8 inch center-to-center spacing between the handle and the upper prep. Measure the existing plate's hole spacing on your door. If your prep is not 4-1/8 inch center-to-center with the upper hole above the lever, this is not the configuration you want.
2) Will this Emtek passage trim lock the door?
No, and that is the point of ordering it. The 13A2 is a non-keyed passage trim, so there is no cylinder and no key. The locking on a multi point opening is done by the lock body and its throw, not by this trim. If you need a keyed exterior door, order a keyed version of the trim instead.
3) What door thickness and backset does the Emtek 13A2 multi point trim work with?
Doors from 1-3/8 to 1-3/4 inches, which covers standard residential swinging patio doors. The backset adjusts between 2-3/8 and 2-3/4 inches and the cross bore is 2-1/8 inches, so it drops into either of the two common bore layouts without redrilling. There is a door thickness field on the order form, so give your measured thickness when you place it.
4) Do I need to specify handing when ordering Emtek multi point lock trim?
Yes, handing is required: right hand or left hand. Stand outside the door, on the side the door swings away from you. If the hinges are on your right it is right hand. Get this wrong on a multi point trim and the lever throws the wrong way, so confirm it before the order goes in.
5) How big are the plates on the Emtek 13A2 modern multi point trim?
The plates measure 1-1/2 x 11 inches in the Modern style, which is a narrow rectangular plate rather than a wide escutcheon. On a patio door with a slim stile that matters, and if you are covering an old plate's screw holes, 1-1/2 inches of width is all you get.
6) What else do I have to choose besides finish on the Emtek 13A2?
Three things get specified: lever style, handing, and door thickness. Lever style is a required choice across 51 designs, from the modern L-Square, T-Bar and R-Bar families in faceted, hammered, knurled, Tribeca, straight knurled and white marble, through to traditional patterns like Rope, Ribbon and Reed, Rustic and Arts and Crafts. Finish is the variant: Oil Rubbed Bronze (US10B), Polished Nickel Lifetime (US14), Satin Nickel (US15), Flat Black (US19), Polished Chrome (US26), Unlacquered Brass (US3NL), and Satin Brass (US4).
7) Is Emtek multi point trim rated for commercial door traffic?
It is residential hardware, built for swinging patio doors in homes. For a multi-family or hospitality property, it suits the unit patio doors rather than a high-traffic entry or a common corridor opening. If you are standardizing across a building, that is the line to draw.
8) Can I match Emtek 13A2 patio door trim to the interior door levers in the rest of the house?
Yes. The lever choice on this trim comes from Emtek's full brass lever range, the same designs used on interior sets, so a Luzern or a Milano lever on the patio door reads as the same family as the interior doors. Match the finish too: seven are offered, including Satin Nickel (US15), Flat Black (US19), and Oil Rubbed Bronze (US10B).
9) Are the Emtek 13A2 plates solid brass or plated zinc?
Solid brass, both the plates and the substrate, and it takes any of Emtek's brass levers. That matters on a patio door that sees weather and hand traffic, and it is why the Unlacquered Brass (US3NL) finish is offered: it will patina over time rather than hold a coating.
