Emtek 12A2 Multi Point Lock Tr...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$381.00
$304.80

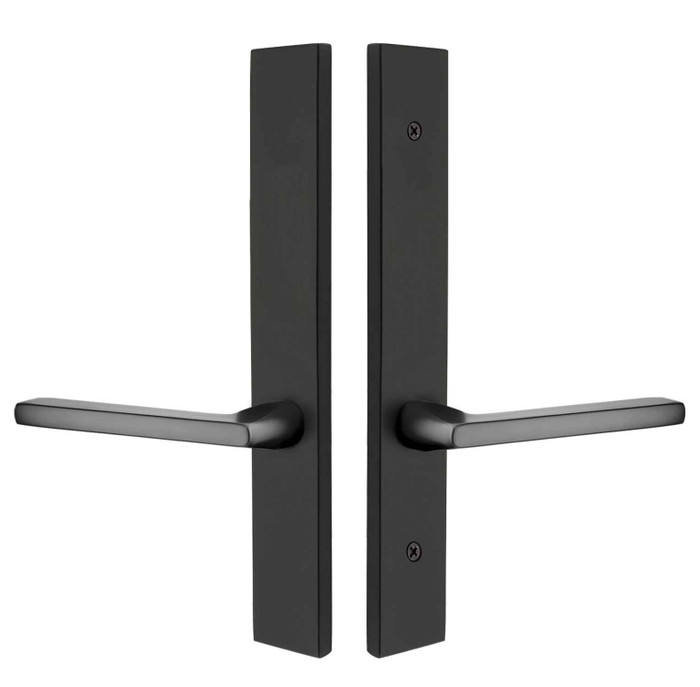

Emtek Emtek 12A2 Multi Point Lock Trim (Door Config #2) - Brass Plates, Modern Style (1.5" x 11"), Non-Keyed Passage EMTEK-12A2

Emtek 12A2 Multi Point Lock Trim (Door Config #2) - Brass Plates, Modern Style (1.5" x 11"), Non-Keyed Passage

(No reviews yet) Write a Review

Model: 12A2-US19
From the Brass Collection
$381.00
$304.80
Selected Finish is
Selected Lever Style is
Selected Handing is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$381.00
$304.80
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like



Specifications:

  • Backset: Adjustable 2-3/8" or 2-3/4"
  • Cross Bore: 2-1/8"
  • Door Thickness: 1-3/8" to 1-3/4"
  • Latch Faceplate: Round or Square Corner
  • Material: Brass



Emtek 12A2 Multi Point Lock Trim (Door Config #2) - Brass Plates, Modern Style (1.5" x 11"), Non-Keyed Passage

  • Can be ordered with any Brass Levers
  • Swinging Patio Door Hardware. Set includes Plates, Handles
  • Multi Point Mortise Lock Box not included. Trims Only
  • Each Multi Point Lock Trim now includes the Spring Assist function which returns the lever to the neutral position and eliminates sagging handles.
Manufacturer Resources

Product Specs

Subcategory:
Multi Point Lock Trim
Product Group:
Mechanical Locks
Commercial/Residential:
Residential
Product Type:
Multi Point Lock Trim
Product Subgroup:
Multi Point Lock Trim
Collection:
Brass
Cylinder Position:
Above Handle
Door Configuration:
#2
Electronic:
No
Keyed:
No
Lock Type:
Multi Point Trim
Ref. Door Manufacturer(s):
BiltBest, G-U, Hurd (Energy Saver), Andersen
Series:
Modern
Theme:
Contemporary
Keyed Function:
Non-Keyed
Lock Function:
Passage
MAP Policy:
Yes
Product Model:
12A2
(CTC) Center-to-Center:
3-5/8"
Product Function:
Non-Keyed Passage
Product Size:
1-1/2" x 11"
Cylinder Classification:
American
Product Style:
Modern
Product Material:
Brass
Product Category:
Mechanical Locks
Product Substrate:
Brass
Department:
Door Hardware

Emtek 12A2-US19 – Frequently Asked Questions

1) Does the Emtek 12A2 multi point trim include the multi point lock itself?
No. The 12A2 is trim only. You get the interior and exterior plates and the handles; the multi point mortise lock box is a separate purchase. If you are replacing a broken gearbox in a patio door, this set will not fix it. Buy this when the lock body is sound and you want to change or upgrade the visible hardware.
2) What door prep does the Emtek 12A2 multi point trim need, and will it fit my existing patio door bore?
The 12A2 works to a 2-1/8 inch cross bore with a backset adjustable between 2-3/8 and 2-3/4 inches, and the handle-to-cylinder spacing is 3-5/8 inches center-to-center. Door thickness range is 1-3/8 to 1-3/4 inches. Measure your existing spindle hole to the cylinder hole first; if that centerline is not 3-5/8 inches, the plates will not line up no matter what the backset does.
3) Which patio door brands does the Emtek 12A2 Door Config #2 trim reference?
Door Configuration #2 is referenced to BiltBest, G-U, Hurd (Energy Saver) and Andersen swinging patio doors. Emtek splits multi point trim into numbered door configurations because the cylinder and spindle spacing differs by door maker, so the configuration number is the thing you have to get right, not the finish.
4) Is the Emtek 12A2 passage trim lockable, or do I need a keyed version?
Passage function, non-keyed. The 12A2 has no cylinder and no key. It operates the multi point lock's latching from the lever, but it will not lock the door with a key from outside. If you need a locking patio door, you want the keyed version of the same door configuration instead, which takes an American style cylinder mounted above the handle.
5) Do I have to specify handing when ordering Emtek 12A2 multi point trim?
Yes, handing is required. Right hand or left hand, and it is not field reversible on the order form. Stand outside the door: if the hinges are on your right, it is right hand. Get this wrong on a swinging patio door and the lever and plate orientation will be backwards.
6) What do I have to pick besides finish when I order the Emtek 12A2 trim?
Three choices, two of them mandatory. Lever style is required and there are over fifty brass levers to choose from, including the L-Square, T-Bar and R-Bar bars in Faceted, Hammered, Knurled, Tribeca, Straight Knurled and White Marble, plus named levers like Athena, Helios, Poseidon, Stuttgart, Milano and Coventry. Handing is required. Door thickness is an optional note if yours is not standard.
7) Will the Emtek 12A2 plates match the other Emtek hardware in my house?
The plates are solid brass in the Modern style, 1-1/2 by 11 inches, and come in seven finishes: Oil Rubbed Bronze (US10B), Polished Nickel Lifetime (US14), Satin Nickel (US15), Flat Black (US19), Polished Chrome (US26), Unlacquered Brass (US3NL) and Satin Brass (US4). Since the lever is chosen separately from the full brass lever range, you can carry the same lever design from your interior doors onto the patio door.
8) Do Emtek multi point patio levers sag over time?
Emtek multi point trim now ships with a spring assist built into the trim, which returns the lever to horizontal and keeps it from drooping. That matters on a patio door because the trim carries the weight of a long lever without help from the gearbox. If you are replacing older sagging Emtek trim, this is the fix.
9) Is Emtek 12A2 multi point trim suitable for a commercial building entrance?
No. The 12A2 is residential-rated swinging patio door hardware in a contemporary style. For a commercial entrance under traffic you want a Grade 1 or Grade 2 commercial lockset or exit device instead, not residential multi point patio trim.
10) Does the Emtek 12A2 need power or wiring?
Non-electronic and fully mechanical. The 12A2 has no wiring, no batteries and no keypad, so nothing to run to the door and nothing that stops working in a power outage.
11) What latch faceplate shape does Emtek 12A2 multi point trim work with?
Round or square corner faceplates both work. On a patio door retrofit that matters because the existing mortise pocket in the stile is already routed to one shape, and matching it saves you chiselling the jamb edge.
