Emtek 11A4 Multi Point Lock Tr...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$381.00
$304.80

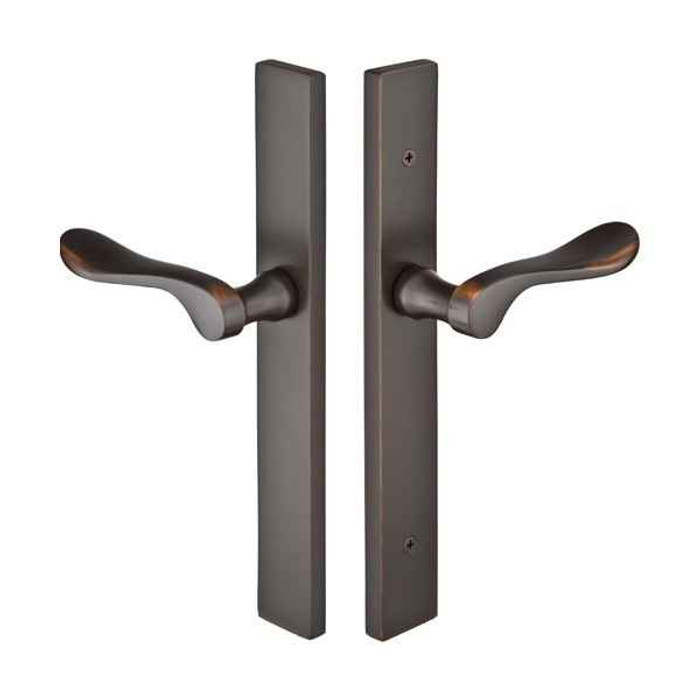

Emtek Emtek 11A4 Multi Point Lock Trim (Door Config #1) - Brass Plates, Modern Style (1.5" x 11"), Non-Keyed Fixed Handle Outside, Operating Handle Inside (for Semi-Active Door) EMTEK-11A4

Emtek 11A4 Multi Point Lock Trim (Door Config #1) - Brass Plates, Modern Style (1.5" x 11"), Non-Keyed Fixed Handle Outside, Operating Handle Inside (for Semi-Active Door)

(No reviews yet) Write a Review

Model: 11A4-US19
From the Brass Collection
$381.00
$304.80
Selected Finish is
Selected Lever Style is
Selected Handing is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$381.00
$304.80
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like



Specifications:

  • Door Configuration: Configuration #1
  • Plate Size: 1.5" x 11"
  • Material: Brass
  • Plate Style: Modern
  • Keyed: No
  • Function: Non-Keyed – Fixed Handle Outside / Operating Handle Inside (Semi-Active)
  • Product Type: Multi Point Lock Trim



Emtek 11A4 Multi Point Lock Trim (Door Config #1) - Brass Plates, Modern Style (1.5" x 11"), Non-Keyed Fixed Handle Outside, Operating Handle Inside (for Semi-Active Door)


  • Can be ordered with any Brass Levers
  • Swinging Patio Door Hardware. Set includes Plates, Handles
  • Multi Point Mortise Lock Box not included. Trims Only
  • Each Multi Point Lock Trim now includes the Spring Assist function which returns the lever to the neutral position and eliminates sagging handles.
Manufacturer Resources

Product Specs

Subcategory:
Multi Point Lock Trim
Product Group:
Mechanical Locks
Commercial/Residential:
Residential
Product Type:
Multi Point Lock Trim
Product Subgroup:
Multi Point Lock Trim
Collection:
Brass
Cylinder Position:
Below Handle
Door Configuration:
#1
Electronic:
No
Keyed:
No
Lock Type:
Multi Point Trim
Ref. Door Manufacturer(s):
Atrium, G-U, KML by Andersen, Andersen, Marvin Integrity, Paddock Lockmaster, Superior
Series:
Modern
Theme:
Contemporary
MAP Policy:
Yes
Product Model:
11A4
(CTC) Center-to-Center:
3-5/8"
Product Function:
Non-Keyed Fixed Handle Outside, Operating Handle Inside
Product Size:
1-1/2" x 11"
Cylinder Classification:
American
Product Style:
Modern
Product Material:
Brass
Product Category:
Mechanical Locks
Product Substrate:
Brass
Department:
Door Hardware

Emtek 11A4-US19 – Frequently Asked Questions

1) Does the Emtek 11A4 multi point trim include the mortise lock body?
No. The 11A4 is trim only, and the set covers plates and handles. The multi point mortise lock box has to be ordered separately, so if you are replacing a full assembly you need the gearbox and rods from your door manufacturer as well.
2) What does the non-keyed fixed handle outside function mean on a patio door?
Outside you get a fixed, non-operating handle, and inside you get a working lever that retracts the latch and drives the multi point rods. That makes the 11A4 the semi-active (inactive) leaf of a double patio door, or a door you never enter through from outside. If you need to key in from outside, this is the wrong trim.
3) Do I have to specify handing on Emtek multi point trim?
Yes, handing is a required selection: right hand (RH) or left hand (LH). Lever style is required too, and there is a field for door thickness so the spindle and screw pack suit your panel. Get the hand wrong on the semi-active leaf and the lever throws the wrong way.
4) Will any Emtek lever work with the 11A4 trim?
Any Emtek brass lever can be ordered on it, and the lever choice is required at order time. Options run from the L-Square, T-Bar and R-Bar families in Faceted, Hammered, Knurled, Tribeca, Straight Knurled and White Marble, through Athena, Helios, Hermes, Luzern, Poseidon and Stuttgart, to traditional shapes like Cortina, Milano, Turino, Rope, Rustic and Santa Fe.
5) Can I still use a cylinder with the Emtek 11A4?
The plate is prepped for an American-standard cylinder positioned below the handle, but the 11A4 itself is a non-keyed function, so there is no key control from the outside. Pick a keyed configuration if the opening needs an exterior key override.
6) What size are the plates on the Emtek 11A4, and will they cover my old trim?
Plates measure 1-1/2 x 11 inches in the Modern (contemporary) profile. That is a narrow escutcheon sized for patio door stiles, so it will cover a slim prep but not a wide old plate footprint. Compare it against the screw holes and cutout on the door before you pull the existing set.
7) What finishes does the Emtek 11A4 brass trim come in?
Seven: Oil Rubbed Bronze (US10B), Polished Nickel Lifetime (US14), Satin Nickel (US15), Flat Black (US19), Polished Chrome (US26), Unlacquered Brass (US3NL) and Satin Brass (US4). The plates and levers are brass substrate, so the finishes match Emtek's brass collection on the other doors in the house.
8) Do Emtek multi point levers sag over time?
Each Emtek multi point trim now ships with a spring assist that returns the lever to neutral, which is what prevents the drooping handle you see on older patio sets. Worth knowing if you are replacing trim on a rental or a fleet of units for exactly that reason.
9) Is the Emtek 11A4 suitable for a commercial entrance?
It is classified residential and built for swinging patio doors, not for commercial traffic or code-driven openings. For a storefront or an institutional entry you want a commercial mortise or exit device instead.
10) Is the Emtek 11A4 an electronic or smart lock?
No, it is purely mechanical trim: no electronics, no wiring, no power. The interior lever drives the multi point lock by hand.
