Specifications:
- Door Configuration: Configuration #3
- Plate Size: 1.5" x 11"
- Material: Brass
- Plate Style: Modern
- Keyed: No
- Function: Non-Keyed – Fixed Handle Outside / Operating Handle Inside (Semi-Active)
- Product Type: Multi Point Lock Trim

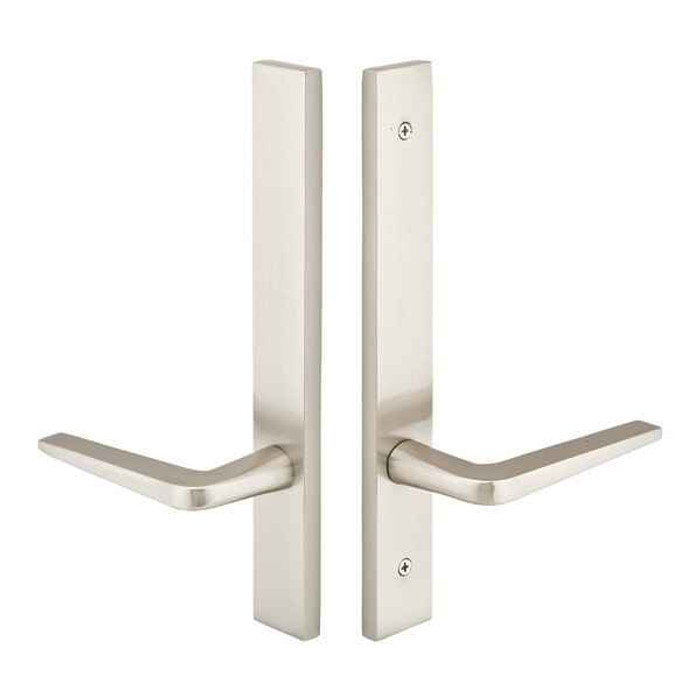

Emtek 13A4 Multi Point Lock Trim (Door Config #3) - Brass Plates, Modern Style (1.5" x 11"), Non-Keyed Fixed Handle Outside, Operating Handle Inside (for Semi-Active Door)
- Can be ordered with any Brass Levers
- Swinging Patio Door Hardware. Set includes Plates, Handles
- Multi Point Mortise Lock Box not included. Trims Only
- Each Multi Point Lock Trim now includes the Spring Assist function which returns the lever to the neutral position and eliminates sagging handles.
Manufacturer Resources
Emtek Multi Point Pocket Booket
Product Specs
- Subcategory:
- Multi Point Lock Trim
- Product Group:
- Mechanical Locks
- Commercial/Residential:
- Residential
- Product Type:
- Multi Point Lock Trim
- Product Subgroup:
- Multi Point Lock Trim
- Collection:
- Brass
- Cylinder Position:
- Above Handle
- Door Configuration:
- #3
- Electronic:
- No
- Keyed:
- No
- Lock Type:
- Multi Point Trim
- Ref. Door Manufacturer(s):
- Andersen
- Series:
- Modern
- Theme:
- Contemporary
- MAP Policy:
- Yes
- Product Model:
- 13A4
- (CTC) Center-to-Center:
- 4-1/8"
- Product Function:
- Non-Keyed Fixed Handle Outside, Operating Handle Inside
- Product Size:
- 1-1/2" x 11"
- Cylinder Classification:
- American
- Product Style:
- Modern
- Product Material:
- Brass
- Product Category:
- Mechanical Locks
- Product Substrate:
- Brass
- Department:
- Door Hardware
Emtek 13A4-US19 – Frequently Asked Questions
1) Does the Emtek 13A4 multi point trim include the multi point lock body?
No. The 13A4 is trim only: plates and handles. The multi point mortise lock box is a separate purchase, so you need to already have the lock in the door or order one alongside it.
2) What does the 13A4 non-keyed function actually do on a semi-active patio door?
Outside you get a fixed handle (a pull that does not turn) and no key cylinder; inside you get an operating lever that retracts the latch and works the multi point lock. That is the standard setup for the semi-active leaf of a swinging patio pair, where the active door carries the keyed hardware.
3) Will the Emtek 13A4 plate line up with my existing multi point lock prep?
Match two things. The plate is drilled for Door Configuration #3 with the cylinder position above the handle, and the handle-to-cylinder center-to-center is 4-1/8 inches. If your lock body's spacing or cylinder location differs, a different Emtek configuration number is the one you want.
4) Do I have to specify handing when ordering this Emtek trim?
Yes, handing is required: right hand or left hand. You also pick a lever style and can enter your door thickness. Get handing wrong on a patio pair and the inside lever throws the wrong way.
5) Is Emtek 13A4 trim used on Andersen patio doors?
Andersen is the referenced door manufacturer for this trim. Confirm your door is running a Configuration #3 multi point lock with the cylinder above the handle and 4-1/8 inch center-to-center spacing before ordering.
6) What finishes does the Emtek 13A4 modern trim come in?
Seven: Oil Rubbed Bronze (US10B), Polished Nickel Lifetime (US14), Satin Nickel (US15), Flat Black (US19), Polished Chrome (US26), Unlacquered Brass (US3NL) and Satin Brass (US4). Pick the one that matches the interior door hardware already in the house, since the plates are solid brass and take the same finishes as Emtek's brass levers.
7) Can I use any Emtek lever with the 13A4 trim?
Any Emtek brass lever can be ordered with it, and lever style is a required selection. The range runs from the modern L-Square, T-Bar and R-Bar families in Faceted, Hammered, Knurled, Tribeca, Straight Knurled and White Marble, through Athena, Helios, Luzern and Geneva, to traditional Rope, Ribbon and Reed, Rustic and Arts and Crafts.
8) Will the lever on this Emtek patio trim sag over time?
Emtek builds a spring assist into these multi point trims. It returns the lever to horizontal after each use, which is what stops the droop you see on older patio door levers.
9) Is the Emtek 13A4 trim suitable for a commercial entrance?
It is a residential-rated product, sized at 1-1/2 by 11 inches with a modern, contemporary plate profile. For a commercial opening with cycle and code requirements, a mortise or exit device is the right direction, not swinging patio door trim.
10) What cylinder type does this Emtek multi point configuration take?
The plate is cut for an American-standard cylinder positioned above the handle. On the 13A4 itself there is no key cylinder, since it is the non-keyed semi-active trim, but the plate geometry follows the same American cylinder layout used across the configuration.
