Emtek 12A4 Multi Point Lock Tr...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$381.00
$304.80

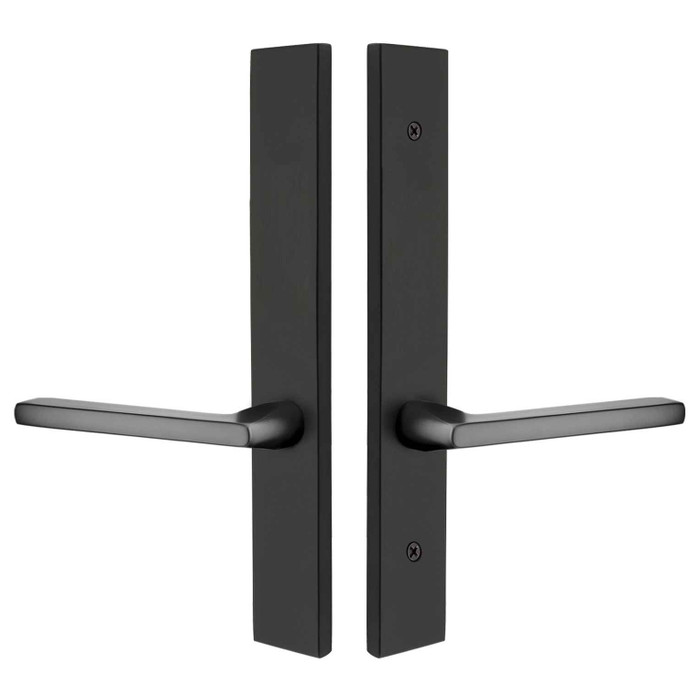

Emtek Emtek 12A4 Multi Point Lock Trim (Door Config #2) - Brass Plates, Modern Style (1.5" x 11"), Non-Keyed Fixed Handle Outside, Operating Handle Inside (for Semi-Active Door) EMTEK-12A4

Emtek 12A4 Multi Point Lock Trim (Door Config #2) - Brass Plates, Modern Style (1.5" x 11"), Non-Keyed Fixed Handle Outside, Operating Handle Inside (for Semi-Active Door)

(No reviews yet) Write a Review

Model: 12A4-US19
From the Brass Collection
$381.00
$304.80
Selected Finish is
Selected Lever Style is
Selected Handing is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$381.00
$304.80
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like



Specifications:

  • Door Configuration: Configuration #2
  • Plate Size: 1.5" x 11"
  • Material: Brass
  • Plate Style: Modern
  • Keyed: No
  • Function: Non-Keyed – Fixed Handle Outside / Operating Handle Inside (Semi-Active)
  • Product Type: Multi Point Lock Trim



Emtek 12A4 Multi Point Lock Trim (Door Config #2) - Brass Plates, Modern Style (1.5" x 11"), Non-Keyed Fixed Handle Outside, Operating Handle Inside (for Semi-Active Door)

  • Can be ordered with any Brass Levers
  • Swinging Patio Door Hardware. Set includes Plates, Handles
  • Multi Point Mortise Lock Box not included. Trims Only
  • Each Multi Point Lock Trim now includes the Spring Assist function which returns the lever to the neutral position and eliminates sagging handles.
Manufacturer Resources

Product Specs

Subcategory:
Multi Point Lock Trim
Product Group:
Mechanical Locks
Commercial/Residential:
Residential
Product Type:
Multi Point Lock Trim
Product Subgroup:
Multi Point Lock Trim
Collection:
Brass
Cylinder Position:
Above Handle
Door Configuration:
#2
Electronic:
No
Keyed:
No
Lock Type:
Multi Point Trim
Ref. Door Manufacturer(s):
BiltBest, G-U, Hurd (Energy Saver), Andersen
Series:
Modern
Theme:
Contemporary
MAP Policy:
Yes
Product Model:
12A4
(CTC) Center-to-Center:
3-5/8"
Product Function:
Non-Keyed Fixed Handle Outside, Operating Handle Inside
Product Size:
1-1/2" x 11"
Cylinder Classification:
American
Product Style:
Modern
Product Material:
Brass
Product Category:
Mechanical Locks
Product Substrate:
Brass
Department:
Door Hardware

Emtek 12A4-US19 – Frequently Asked Questions

1) Which patio door brands does the Emtek 12A4 multi point trim fit?
Emtek references this trim against BiltBest, G-U, Hurd (Energy Saver), and Andersen multi point systems. Those are the door and gear makers whose prep this configuration is built around. Confirm your door's handle-to-cylinder spacing is 3-5/8 inches, since that is the dimension the plate is drilled to.
2) What does Door Configuration #2 mean on an Emtek multi point trim, and which leaf does it go on?
Configuration #2 is the semi-active (inactive) leaf of a swinging patio pair. The 12A4 gives you a fixed, non-operating handle on the exterior and a working lever on the interior, so the second door stays put until someone opens it from inside. It is not keyed. If you are ordering for the door people use every day, that is the active leaf and it takes a different configuration.
3) What center-to-center spacing does the Emtek 12A4 trim have, and will it line up with my existing multi point lock?
3-5/8 inch center to center, measured between the handle and the cylinder position, with the cylinder location above the handle. Your multi point lock body has to be prepped at that same spacing or the plate will not sit over both holes. Measure your existing door prep before ordering: multi point gear from different door makers uses different spacing, and this trim only covers 3-5/8.
4) Do I have to specify handing when ordering Emtek 12A4 patio door trim?
Yes, handing is a required choice, right hand or left hand. Because the outside handle is fixed and the inside lever operates, the set is built for one swing and cannot be flipped in the field the way a symmetric knob set can. Determine handing from the outside of the door, standing where the hinges are visible on the far side.
5) Can I pick my own lever style on the Emtek 12A4 multi point trim?
The lever is chosen separately and it is a required selection. Any Emtek brass lever works with this trim, and the range runs from Modern shapes like the L-Square, T-Bar and R-Bar (in Faceted, Hammered, Knurled, Tribeca, Straight Knurled and White Marble treatments) through Athena, Helios, Hermes, Luzern, Poseidon, Stuttgart, Argos, Aston, Basel, Breslin, Dumont, Freestone, Geneva, Hercules, Mercury, Myles, Sion, Spencer, Triton, Cortina, Manning, Milano, Merrimack, Turino, Coventry, Elan, Ribbon and Reed, Rope, Rustic, Santa Fe, Wembley, Arts and Crafts, and Hammered. That lets you match the patio door to the levers already on the rest of the house.
6) Is the Emtek 12A4 keyed, and does it take a cylinder?
Non-keyed. The 12A4 has no cylinder in it, which is what you want on the semi-active leaf, since the pair is secured through the active door. The plate is laid out with the cylinder position above the handle and an American-standard cylinder classification, so it sits in the same family as Emtek's keyed configurations if you later change which leaf carries the lock.
7) What size are the plates on the Emtek 12A4 modern trim, and will they cover my old escutcheon marks?
The plates measure 1-1/2 x 11 inches in a squared Modern profile. That is a narrow band, so it will not hide the footprint of a wider or taller plate that was there before. If your existing trim was broader, plan on filling and refinishing the stile, or pick a plate style with more coverage.
8) Is Emtek 12A4 multi point trim suitable for a commercial building entrance?
It is residential hardware, made for swinging patio doors on homes. For an apartment unit's private patio door it is appropriate; for a building entrance carrying public traffic you want commercial-rated hardware instead. There is no electronic or access control option in this configuration either, it is mechanical trim only.
9) Will the Emtek 12A4 trim keep the lever from sagging over time?
It ships with Emtek's Spring Assist, which returns the lever to horizontal and stops the drooping handle you get on older patio trim once the lock body spring wears. On a semi-active leaf that matters less for daily use and more for how the pair looks lined up, but it is built in either way.
10) What finishes does the Emtek 12A4 brass multi point trim come in?
Seven: Oil Rubbed Bronze (US10B), Polished Nickel Lifetime (US14), Satin Nickel (US15), Flat Black (US19), Polished Chrome (US26), Unlacquered Brass (US3NL), and Satin Brass (US4). All are on solid brass, so if you are matching the rest of the openings in a house, the US number is the thing to match on. Unlacquered brass will patina with handling; the others hold their look.
11) Do I need to give my door thickness when ordering Emtek multi point patio trim?
There is a door thickness field on the order and it is worth filling in. Multi point trim spindles and mounting screws have to cross the full thickness of the door slab, so telling Emtek what you have avoids a spindle that comes up short. Measure the actual slab, not the frame.
