Specifications:
- Door Configuration: Configuration #6
- Plate Size: 1.5" x 11"
- Material: Brass
- Plate Style: Modern
- Keyed: No
- Function: Non-Keyed – Fixed Handle Outside / Operating Handle Inside (Semi-Active)
- Product Type: Multi Point Lock Trim

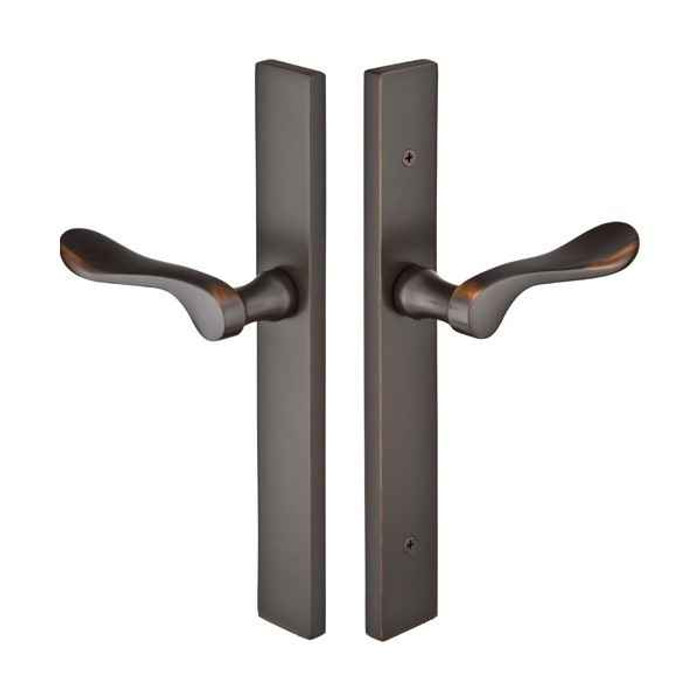

Emtek 16A4 Multi Point Lock Trim (Door Config #6) - Brass Plates, Modern Style (1.5" x 11"), Non-Keyed Fixed Handle Outside, Operating Handle Inside (for Semi-Active Door)
- Can be ordered with any Brass Levers
- Swinging Patio Door Hardware. Set includes Plates, Handles
- Multi Point Mortise Lock Box not included. Trims Only
- Each Multi Point Lock Trim now includes the Spring Assist function which returns the lever to the neutral position and eliminates sagging handles.
Manufacturer Resources
Emtek Multi Point Pocket Booket
Product Specs
- Subcategory:
- Multi Point Lock Trim
- Product Group:
- Mechanical Locks
- Commercial/Residential:
- Residential
- Product Type:
- Multi Point Lock Trim
- Product Subgroup:
- Multi Point Lock Trim
- Collection:
- Brass
- Cylinder Position:
- Below Handle
- Door Configuration:
- #6
- Electronic:
- No
- Keyed:
- No
- Lock Type:
- Multi Point Trim
- Ref. Door Manufacturer(s):
- Milgard, Pella
- Series:
- Modern
- Theme:
- Contemporary
- MAP Policy:
- Yes
- Product Model:
- 16A4
- (CTC) Center-to-Center:
- 3-5/8"
- Product Function:
- Non-Keyed Fixed Handle Outside, Operating Handle Inside
- Product Size:
- 1-1/2" x 11"
- Cylinder Classification:
- American
- Product Style:
- Modern
- Product Material:
- Brass
- Product Category:
- Mechanical Locks
- Product Substrate:
- Brass
- Department:
- Door Hardware
Emtek 16A4-US19 – Frequently Asked Questions
1) Does the Emtek 16A4 multi point trim include the multi point mortise lock body?
No. The 16A4 is trim only: plates and handles. The multi point mortise lock box has to be sourced separately, usually from the door manufacturer. If you are replacing worn handles on a working patio door, that is exactly what this set is for. If the internal locking mechanism itself has failed, trim will not fix it.
2) What does Door Configuration #6 mean on an Emtek multi point trim?
Configuration #6 on the 16A4 is the non-keyed semi-active setup: a fixed (dummy) handle on the exterior and an operating lever on the interior. It goes on the semi-active leaf of a pair of swinging patio doors, the one you throw the multi point rods on and leave shut most of the time. The active leaf needs a keyed configuration instead.
3) Will Emtek 16A4 trim fit my Milgard or Pella swinging patio door?
Milgard and Pella are the referenced door manufacturers for this trim. The deciding number is the handle-to-cylinder center-to-center spacing, which is 3-5/8 inches with the cylinder location below the handle. Measure your existing plate's hole spacing against that before ordering. The plate itself is 1-1/2 x 11 inches.
4) Do I have to specify handing when ordering Emtek 16A4 trim?
Yes, handing is required: right hand or left hand. You also pick the lever style and can enter your door thickness when ordering. Handing on a patio pair is determined from the outside looking in at the leaf the trim is going on.
5) Is the 16A4 keyed, and does it take a cylinder?
It is non-keyed. The exterior handle is fixed and there is no key function on this configuration. The cylinder prep referenced for the family is American classification with the cylinder sitting below the handle, so if you need a keyed exterior on the active leaf you want a keyed configuration rather than the 16A4.
6) What finishes does the Emtek 16A4 brass multi point trim come in?
Seven: Oil Rubbed Bronze (US10B), Polished Nickel Lifetime (US14), Satin Nickel (US15), Flat Black (US19), Polished Chrome (US26), Unlacquered Brass (US3NL), and Satin Brass (US4). Plates and handles are solid brass, so the finishes match the rest of the Emtek brass collection on interior doors in the same house.
7) Which levers can I put on the Emtek 16A4 plate?
Any Emtek brass lever. The selectable list runs from the modern L-Square, T-Bar and R-Bar bars in Faceted, Hammered, Knurled, Tribeca, Straight Knurled and White Marble, through Athena, Helios, Hermes, Luzern, Poseidon and Stuttgart, to traditional shapes like Cortina, Milano, Turino, Rope, Ribbon and Reed, Rustic and Arts and Crafts. Lever choice is required at order.
8) How big are the plates on the Emtek Modern multi point trim, and will they cover my old escutcheon?
The Modern plates measure 1-1/2 by 11 inches, a narrow rectangular profile. Against a wider or longer previous plate they will not hide old screw holes or a bigger cutout, so check the footprint of what is coming off the door first.
9) Will the interior lever on this Emtek patio trim sag over time?
Emtek multi point trim now ships with a spring assist that returns the lever to neutral, which is what stops the droopy-handle problem common on older patio trim. Worth knowing if you are replacing a sagging set rather than doing new construction.
10) Is the Emtek 16A4 trim suitable for a commercial entrance?
It is classified residential. The 16A4 is swinging patio door hardware in the Modern, contemporary style and is not carrying a commercial grade rating, so for a multi-family common entry or a commercial opening you should be specifying commercial-grade hardware instead.
