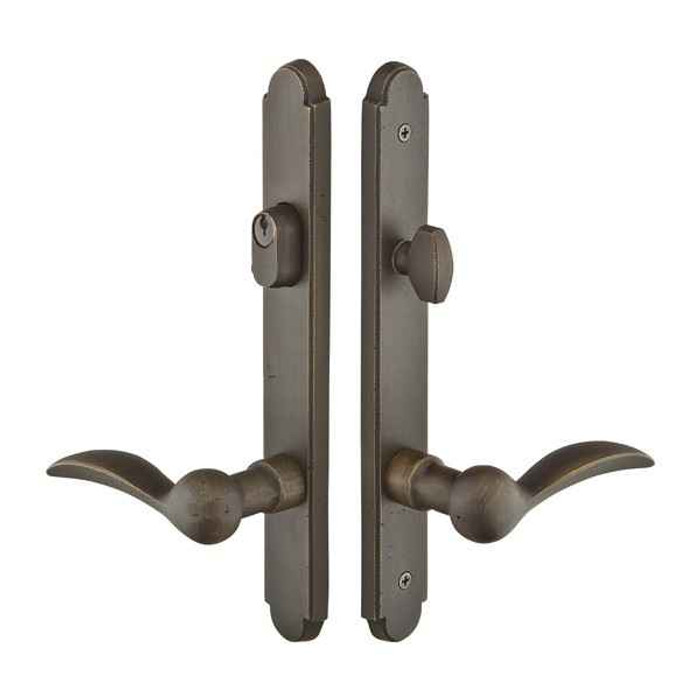

Emtek Emtek 1211 Multi Point Lock Trim (Door Config #2) - Sandcast Bronze Plates, Arched Style (1.5" x 11"), Keyed with American Cylinder Hub ABOVE Handle EMTEK-1211

Emtek 1211 Multi Point Lock Trim (Door Config #2) - Sandcast Bronze Plates, Arched Style (1.5" x 11"), Keyed with American Cylinder Hub ABOVE Handle

(No reviews yet) Write a Review

Model: 1211-FB
From the Sandcast Bronze Collection
$424.00
$339.20
Selected Finish is
Selected Lever Style is
Selected Handing is
Selected FREE KEYING Options is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$424.00
$339.20
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like



Specifications:

  • Door Configuration: Configuration #2
  • Plate Size: 1.5" x 11"
  • Material: Sandcast Bronze
  • Plate Style: Arched
  • Keyed: Yes
  • Function: Keyed Entry
  • Cylinder Type: American Cylinder
  • Cylinder Position: Above Handle
  • Product Type: Multi Point Lock Trim



Emtek 1211 Multi Point Lock Trim (Door Config #2) - Sandcast Bronze Plates, Arched Style (1.5" x 11"), Keyed with American Cylinder Hub ABOVE Handle

  • Can be ordered with any Sandcast Bronze Levers
  • Swinging Patio Door Hardware. Set includes Plates, Handles, and Cylinder
  • Multi Point Mortise Lock Box not included. Trims Only
  • Each Multi Point Lock Trim now includes the Spring Assist function which returns the lever to the neutral position and eliminates sagging handles.
Manufacturer Resources

Product Specs

Subcategory:
Multi Point Lock Trim
Product Group:
Mechanical Locks
Commercial/Residential:
Residential
Product Type:
Multi Point Lock Trim
Product Subgroup:
Multi Point Lock Trim
Collection:
Sandcast Bronze
Cylinder Position:
Above Handle
Door Configuration:
#2
Electronic:
No
Keyed:
Yes
Keyed Function:
Single Cylinder
Lock Function:
Single Cylinder
Lock Type:
Multi Point Trim
Ref. Door Manufacturer(s):
BiltBest, G-U, Hurd (Energy Saver), Andersen
Series:
Arched
Theme:
Rustic Living
MAP Policy:
Yes
Product Model:
1211
(CTC) Center-to-Center:
3-5/8"
Product Function:
Keyed with American Cylinder
Product Size:
1-1/2" x 11"
Cylinder Classification:
American
Product Style:
Arched
Product Material:
Bronze
Product Category:
Mechanical Locks
Product Substrate:
Bronze
Department:
Door Hardware

Emtek 1211-FB – Frequently Asked Questions

1) Does the Emtek 1211 multi point trim include the multi point lock body, or just the handles and plates?
Trim only. The 1211 set includes the plates, the handles, and the cylinder. The multi point mortise lock box is not part of it, so if the door does not already have a working multi point lock in the stile, that has to be sourced separately. It is swinging patio door hardware, so the usual case is a door that already has the lock body and needs new escutcheon trim over it.
2) What does Door Configuration #2 mean on Emtek multi point trim, and how do I know my door takes it?
Configuration refers to where the cylinder sits relative to the handle on the multi point lock body. The 1211 is Configuration #2, which puts the American cylinder hub ABOVE the handle with 3-5/8 inch center-to-center between the cylinder and the spindle hub. Measure your existing door from the center of the key cylinder to the center of the handle spindle and check which side the cylinder falls on. If your cylinder sits below the handle, or the spacing is not 3-5/8 inches, this is the wrong configuration and the plates will not line up with the lock body prep.
3) Will Emtek 1211 trim fit a BiltBest or Andersen multi point patio door?
Those are among the door lines this trim is referenced against: BiltBest, G-U, Hurd (Energy Saver), and Andersen. That reference is a starting point, not a blanket fit. The deciding facts are the 3-5/8 inch cylinder-to-handle center-to-center and the cylinder sitting above the handle. Confirm both on the door in front of you before ordering, because those manufacturers built more than one multi point configuration.
4) Do I have to specify handing when I order Emtek 1211 multi point trim?
Yes, handing is required, right hand or left hand. Stand outside the door: if the hinges are on your right, it is a right hand door. Getting this wrong on a keyed multi point trim means the lever and the cylinder land backwards on the plate, so it is not something you can flip in the field.
5) Can I key an Emtek 1211 patio door to match my existing Schlage or Kwikset house keys?
The cylinder is an American type in single cylinder keyed entry function, and it can be ordered in either the Schlage keyway (standard) or the Weiser WR5 keyway. WR5 is the keyway Kwikset-family residential keys run on, so pick the one matching the rest of the house. Keyed alike or keyed different is a required selection, and there is a field to key to a specific code if you are matching an existing bitting on other doors.
6) How much of the door stile does the Emtek 1211 arched plate cover?
The plate measures 1-1/2 x 11 inches in the arched sandcast bronze style. On a narrow patio door stile that 1-1/2 inch width is the number that matters, since the plate has to sit flat on the stile face without running onto the glass stop or the weatherstrip. Measure the flat face of your stile before you commit.
7) What lever styles can I get on the Emtek 1211 sandcast bronze trim?
Ten sandcast bronze levers pair with the 1211 plate: Aurora, Bryce, Cimarron, Cody, Durango, Lariat, Mariposa, Montrose, Teton, and Yuma. The lever is a required choice at order time, not an accessory you add later. Any of the sandcast bronze levers can be ordered on this trim, which is what lets you match the patio door to the entry and interior sets already in the house.
8) Is the Emtek 1211 single cylinder or double cylinder, and can I get in with a key from outside?
Single cylinder. Key operation from the exterior, thumb or lever operation on the interior with no key required to get out. That is the standard arrangement for a patio door where you do not want an occupant hunting for a key on the inside.
9) My old patio door handle sags and droops. Does the Emtek 1211 fix that?
The 1211 trim includes a spring assist that returns the lever to neutral, which is the part that stops the drooping handle you get once the lock body springs on an older multi point tire out. Worth noting the fix is in the trim, so a sagging lever is one of the few multi point complaints you can solve by replacing trim alone rather than pulling the lock body.
10) Do I need to give my door thickness when ordering Emtek multi point lock trim?
There is an optional door thickness field on the order. Fill it in. Multi point patio doors run thicker and less standard than a typical 1-3/4 inch entry door, and the spindle and cylinder tailpiece have to span whatever your door actually measures. Measure the door edge and enter the figure rather than leaving it blank.
11) What finishes does the Emtek sandcast bronze arched multi point trim come in?
Three sandcast bronze finishes: Flat Black Bronze (FB), Medium Bronze (MB), and Tumbled White Bronze (TWB). All three are available with either keyway. These are living bronze finishes cast from solid bronze rather than plated, so expect them to change tone with handling and weather over time.
12) Does the Emtek 1211 work with a smart lock or keypad?
No. The 1211 is mechanical trim, key and lever only, with no electronic option. If you want keyless entry on a multi point patio door, this is not the trim to start from.
