Emtek 1321 Multi Point Lock Tr...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$424.00
$339.20

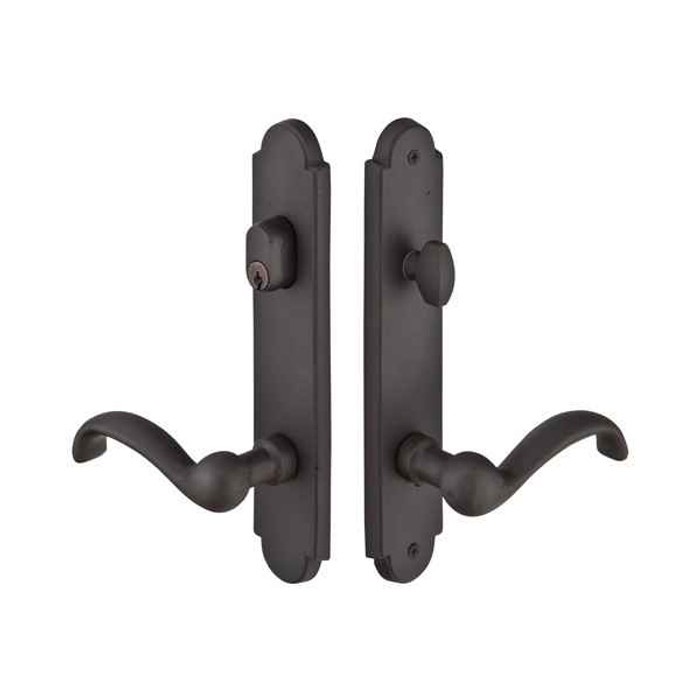

Emtek Emtek 1321 Multi Point Lock Trim (Door Config #3) - Sandcast Bronze Plates, Arched Style (2" x 10"), Keyed with American Cylinder Hub ABOVE Handle EMTEK-1321

Emtek 1321 Multi Point Lock Trim (Door Config #3) - Sandcast Bronze Plates, Arched Style (2" x 10"), Keyed with American Cylinder Hub ABOVE Handle

(No reviews yet) Write a Review

Model: 1321-FB
From the Sandcast Bronze Collection
$424.00
$339.20
Selected Finish is
Selected Lever Style is
Selected Handing is
Selected FREE KEYING Options is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$424.00
$339.20
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like



Specifications:

  • Door Configuration: Configuration #3
  • Plate Size: 2" x 10"
  • Material: Sandcast Bronze
  • Plate Style: Arched
  • Keyed: Yes
  • Function: Keyed Entry
  • Cylinder Type: American Cylinder
  • Cylinder Position: Above Handle
  • Product Type: Multi Point Lock Trim



Emtek 1321 Multi Point Lock Trim (Door Config #3) - Sandcast Bronze Plates, Arched Style (2" x 10"), Keyed with American Cylinder Hub ABOVE Handle

  • Can be ordered with any Sandcast Bronze Levers
  • Swinging Patio Door Hardware. Set includes Plates, Handles, and Cylinder
  • Multi Point Mortise Lock Box not included. Trims Only
  • Each Multi Point Lock Trim now includes the Spring Assist function which returns the lever to the neutral position and eliminates sagging handles.
Manufacturer Resources

Product Specs

Subcategory:
Multi Point Lock Trim
Product Group:
Mechanical Locks
Commercial/Residential:
Residential
Product Type:
Multi Point Lock Trim
Product Subgroup:
Multi Point Lock Trim
Collection:
Sandcast Bronze
Cylinder Position:
Above Handle
Door Configuration:
#3
Electronic:
No
Keyed:
Yes
Keyed Function:
Single Cylinder
Lock Function:
Single Cylinder
Lock Type:
Multi Point Trim
Ref. Door Manufacturer(s):
Andersen
Series:
Arched
Theme:
Rustic Living
MAP Policy:
Yes
Product Model:
1321
(CTC) Center-to-Center:
4-1/8"
Product Function:
Keyed with American Cylinder
Product Size:
2" x 10"
Cylinder Classification:
American
Product Style:
Arched
Product Material:
Bronze
Product Category:
Mechanical Locks
Product Substrate:
Bronze
Department:
Door Hardware

Emtek 1321-FB – Frequently Asked Questions

1) Does the Emtek 1321 multi point trim include the multi point mortise lock body?
No. The Emtek 1321 is trim only: plates, handles, and the cylinder. The multi point mortise lock box has to be sourced separately, usually from the door manufacturer. If the door already has a working multi point lock in the stile, this set dresses it; if you are starting from a bare door, you still need the lock body.
2) What does Door Configuration #3 mean on Emtek multi point trim?
Emtek splits multi point trim by the layout of the door's existing lock body, and the 1321 is built for Configuration #3, with the cylinder hub ABOVE the handle and a 4-1/8 inch center-to-center between the cylinder and the handle hub. Measure your existing door: if the key cylinder sits below the lever, or the spacing is not 4-1/8 inches, this is the wrong configuration and you need the matching Emtek config for your door.
3) Will Emtek 1321 trim fit an Andersen swinging patio door?
Andersen is the referenced door manufacturer for this trim, and the 1321 is built for swinging patio door hardware. Fit still comes down to configuration: the cylinder hub sits above the lever at 4-1/8 inch centers, so confirm your Andersen door's lock body matches Configuration #3 before ordering.
4) Can I key this Emtek patio door trim to match my existing Schlage or Weiser house keys?
Yes. The 1321 uses an American cylinder and is offered with either the Schlage keyway (standard) or the Weiser WR5 keyway, so you can stay on the keyway already used in the house. Keying is handled at order time: choose keyed alike or keyed different, and there is a field to enter a key code if you want it cut to an existing code. It is a single cylinder function, so key outside, thumbturn or interior operation inside.
5) Do I have to specify handing when ordering Emtek 1321 multi point trim?
Yes, handing is a required choice: right hand or left hand. You also have to pick a lever style and the keying option before the order is complete. Get the handing wrong and the lever points the wrong way on the door, so determine it from the hinge side before you order.
6) Which levers can I use with Emtek sandcast bronze multi point trim?
Any Emtek sandcast bronze lever works with this trim. The lever choices offered with the 1321 are Aurora, Bryce, Cimarron, Cody, Durango, Lariat, Mariposa, Montrose, Teton and Yuma, so you can match levers already used on interior doors in the same collection.
7) What finishes does the Emtek 1321 sandcast bronze trim come in?
Three sandcast bronze finishes: Flat Black Bronze (FB), Medium Bronze (MB), and Tumbled White Bronze (TWB). All three are available with either the Schlage or the Weiser WR5 keyway. These are live cast bronze finishes, so plan on matching them to other Emtek sandcast bronze hardware rather than to plated brass.
8) How big are the plates on the Emtek 1321 arched trim, and will they cover my old hardware?
The plates measure 2 x 10 inches in the arched style. That is a narrow plate meant for a patio door stile, so it will cover a typical multi point prep but not a wide scar from a different brand's escutcheon. Compare against the footprint you are removing before you commit.
9) Do Emtek multi point levers sag over time?
The 1321 trim ships with Emtek's spring assist built in, which returns the lever to neutral and stops the droop that shows up on heavy patio door levers. That is included on the trim, not an extra option to add.
10) Is Emtek 1321 trim suitable for a commercial opening?
No. The 1321 is residential hardware for swinging patio doors, cast in bronze for appearance as much as function. For a commercial entrance you want a Grade 1 or Grade 2 commercial lockset rather than residential multi point patio trim.
11) Is there an electronic or keypad version of this Emtek multi point trim?
No, the 1321 is strictly mechanical, keyed with an American cylinder. If you want keyless on a multi point patio door, you need to look at an electronic multi point trim instead of this one.
