Emtek 1221 Multi Point Lock Tr...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$424.00
$339.20

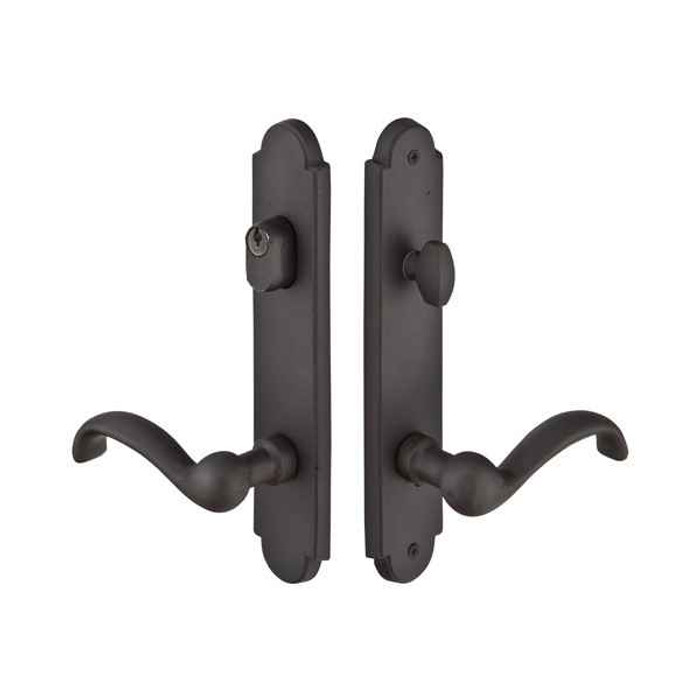

Emtek Emtek 1221 Multi Point Lock Trim (Door Config #2) - Sandcast Bronze Plates, Arched Style (2" x 10"), Keyed with American Cylinder Hub ABOVE Handle EMTEK-1221

Emtek 1221 Multi Point Lock Trim (Door Config #2) - Sandcast Bronze Plates, Arched Style (2" x 10"), Keyed with American Cylinder Hub ABOVE Handle

(No reviews yet) Write a Review

Model: 1221-FB
From the Sandcast Bronze Collection
$424.00
$339.20
Selected Finish is
Selected Lever Style is
Selected Handing is
Selected FREE KEYING Options is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$424.00
$339.20
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like



Specifications:

  • Door Configuration: Configuration #2
  • Plate Size: 2" x 10"
  • Material: Sandcast Bronze
  • Plate Style: Arched
  • Keyed: Yes
  • Function: Keyed Entry
  • Cylinder Type: American Cylinder
  • Cylinder Position: Above Handle
  • Product Type: Multi Point Lock Trim



Emtek 1221 Multi Point Lock Trim (Door Config #2) - Sandcast Bronze Plates, Arched Style (2" x 10"), Keyed with American Cylinder Hub ABOVE Handle

  • Can be ordered with any Sandcast Bronze Levers
  • Swinging Patio Door Hardware. Set includes Plates, Handles, and Cylinder
  • Multi Point Mortise Lock Box not included. Trims Only
  • Each Multi Point Lock Trim now includes the Spring Assist function which returns the lever to the neutral position and eliminates sagging handles.
Manufacturer Resources

Product Specs

Subcategory:
Multi Point Lock Trim
Product Group:
Mechanical Locks
Commercial/Residential:
Residential
Product Type:
Multi Point Lock Trim
Product Subgroup:
Multi Point Lock Trim
Collection:
Sandcast Bronze
Cylinder Position:
Above Handle
Door Configuration:
#2
Electronic:
No
Keyed:
Yes
Keyed Function:
Single Cylinder
Lock Function:
Single Cylinder
Lock Type:
Multi Point Trim
Ref. Door Manufacturer(s):
BiltBest, G-U, Hurd (Energy Saver), Andersen
Series:
Arched
Theme:
Rustic Living
MAP Policy:
Yes
Product Model:
1221
(CTC) Center-to-Center:
3-5/8"
Product Function:
Keyed with American Cylinder
Product Size:
2" x 10"
Cylinder Classification:
American
Product Style:
Arched
Product Material:
Bronze
Product Category:
Mechanical Locks
Product Substrate:
Bronze
Department:
Door Hardware

Emtek 1221-FB – Frequently Asked Questions

1) Does the Emtek 1221 multi point trim include the multi point lock itself?
No. The 1221 is trim only, and the set covers the plates, handles, and cylinder. The multi point mortise lock box is a separate purchase, so you need the gearbox and rods already in the door or ordered alongside. Handles return to neutral on their own thanks to the built in spring assist, which keeps levers from sagging on a heavy patio door.
2) What is Door Configuration #2 on Emtek multi point trim and how do I know it is the one I need?
Configuration #2 refers to how the lock hardware is laid out on the door, and on the 1221 it means the American cylinder hub sits above the handle with a 3-5/8 inch center to center between the cylinder and the lever hub. Measure from the middle of your existing keyhole to the middle of the handle spindle. If that comes out at 3-5/8 inches with the key above the lever, the 1221 matches your prep.
3) Which patio door brands does this Emtek 1221 trim set reference for fit?
Emtek references this configuration against BiltBest, G-U, Hurd (Energy Saver), and Andersen multi point doors. Those are the door systems whose prep this trim layout is drawn to. Confirm your own door against the 3-5/8 inch cylinder to handle spacing and the cylinder sitting above the lever before ordering.
4) Can I key this Emtek patio door trim to match my existing Schlage house keys?
Yes, if your house is on Schlage. The cylinder ships in either a Schlage keyway (the standard option) or a Weiser WR5 keyway, and keying is offered keyed different or keyed alike at no charge. There is also a keying to code field, so if your locksmith or builder gave you a bitting code, enter it and the cylinder comes cut to match the rest of the doors.
5) Do I have to specify handing when ordering Emtek multi point lock trim?
Yes, handing is a required selection: right hand or left hand. Stand outside the door, on the side the key goes in. If the hinges are on your right, it is right hand. Get this wrong and the lever and cylinder orientation will not match the door.
6) Is the Emtek 1221 keyed on both sides or just the outside?
Single cylinder. One American cylinder on the exterior side, thumbturn or interior lever operation inside, so there is no key needed to get out. That is the usual choice on a swinging patio door where egress matters more than glass-reach security.
7) Which lever styles can I put on the Emtek 1221 sandcast bronze trim?
The 1221 takes any Emtek sandcast bronze lever, and the lever choice is a required selection when you order. The options are Aurora, Bryce, Cimarron, Cody, Durango, Lariat, Mariposa, Montrose, Teton, and Yuma. Because the plates and levers are all sandcast bronze from the same collection, the finish carries across the whole set.
8) Is this Emtek trim suitable for a commercial entry or apartment building door?
Emtek classifies the 1221 as residential hardware. It is swinging patio door trim, sandcast bronze, aimed at homes and high end residential projects rather than commercial openings. For a commercial entrance with traffic and code requirements, a Grade 1 mortise or cylindrical lockset is the correct direction instead.
9) How big are the plates on the Emtek 1221, and will they cover my old hardware marks?
The arched plates measure 2 x 10 inches. That is a narrow, tall escutcheon sized for patio door stiles, so it will hide a vertical run of old screw holes but not much side to side. If your previous trim was wider than 2 inches, expect to see the outline.
10) Is the Emtek 1221 an electronic or keypad lock?
No, it is fully mechanical. Key on the outside, lever operation, no batteries, no wiring, no keypad. If you want a code entry patio door, this is not the product.
