Emtek Emtek 1411 Multi Point Lock Trim (Door Config #4) - Sandcast Bronze Plates, Arched Style (1.5" x 11"), Keyed with American Cylinder Hub ABOVE Handle EMTEK-1411

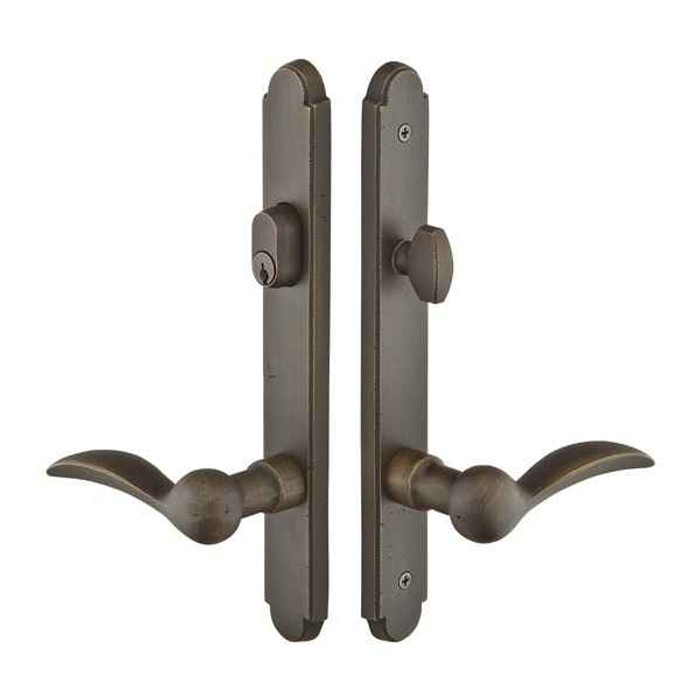

Emtek 1411 Multi Point Lock Trim (Door Config #4) - Sandcast Bronze Plates, Arched Style (1.5" x 11"), Keyed with American Cylinder Hub ABOVE Handle

(No reviews yet) Write a Review

Model: 1411-FB
From the Sandcast Bronze Collection
$424.00
$339.20
Selected Finish is
Selected Lever Style is
Selected Handing is
Selected FREE KEYING Options is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$424.00
$339.20
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like



Specifications:

  • Door Configuration: Configuration #4
  • Plate Size: 1.5" x 11"
  • Material: Sandcast Bronze
  • Plate Style: Arched
  • Keyed: Yes
  • Function: Keyed Entry
  • Cylinder Type: American Cylinder
  • Cylinder Position: Above Handle
  • Product Type: Multi Point Lock Trim



Emtek 1411 Multi Point Lock Trim (Door Config #4) - Sandcast Bronze Plates, Arched Style (1.5" x 11"), Keyed with American Cylinder Hub ABOVE Handle

  • Can be ordered with any Sandcast Bronze Levers
  • Swinging Patio Door Hardware. Set includes Plates, Handles, and Cylinder
  • Multi Point Mortise Lock Box not included. Trims Only
  • Each Multi Point Lock Trim now includes the Spring Assist function which returns the lever to the neutral position and eliminates sagging handles.
Manufacturer Resources

Product Specs

Subcategory:
Multi Point Lock Trim
Product Group:
Mechanical Locks
Commercial/Residential:
Residential
Product Type:
Multi Point Lock Trim
Product Subgroup:
Multi Point Lock Trim
Collection:
Sandcast Bronze
Cylinder Position:
Above Handle
Door Configuration:
#4
Electronic:
No
Keyed:
Yes
Keyed Function:
Single Cylinder
Lock Function:
Single Cylinder
Lock Type:
Multi Point Trim
Ref. Door Manufacturer(s):
Ashland, G-U, Caradco, JELD-WEN, Jeldwen Custom Collection (formerly Pozzi), Marvin, PGT, Premium Collection (formerly Norco), Weathershield
Series:
Arched
Theme:
Rustic Living
MAP Policy:
Yes
Product Model:
1411
(CTC) Center-to-Center:
3-5/8"
Product Function:
Keyed with American Cylinder
Product Size:
1-1/2" x 11"
Cylinder Classification:
American
Product Style:
Arched
Product Material:
Bronze
Product Category:
Mechanical Locks
Product Substrate:
Bronze
Department:
Door Hardware

Emtek 1411-FB – Frequently Asked Questions

1) Does the Emtek 1411 multi point trim include the multi point lock itself?
No. The 1411 is trim only: plates, handles, and the cylinder. The multi point mortise lock box is a separate purchase, so you need the gearbox already in the door or ordered alongside. If your patio door already has a working multi point lock and you just want new hardware on the faces, this is the right kind of part.
2) Will Emtek 1411 trim fit my Marvin or JELD-WEN swinging patio door?
The 1411 is built to Emtek Door Configuration #4 and the configuration is referenced against Ashland, G-U, Caradco, JELD-WEN, Jeld-Wen Custom Collection (formerly Pozzi), Marvin, PGT, Premium Collection (formerly Norco), and Weathershield doors. What decides it is the hole pattern in your door, not the brand name: config #4 with a 3-5/8 inch center-to-center between the handle hub and the cylinder, cylinder above the handle. Measure your existing door prep before ordering, because Emtek publishes several configurations and only the matching one lines up.
3) What is the center-to-center dimension on the Emtek 1411 arched trim?
3-5/8 inches between the cylinder and the handle hub, with the cylinder sitting above the handle. If your door is bored the other way round (cylinder below the handle) or at a different spacing, the plate will not line up and you need a different Emtek configuration.
4) Can I key the Emtek 1411 to match my existing Schlage or Kwikset house keys?
The 1411 takes an American cylinder and is offered in two keyways: Schlage (the standard) and Weiser WR5. Weiser WR5 is the keyway Kwikset-style residential keys run in, so pick the keyway your existing keys use. Keying is single cylinder, so it is keyed outside and thumbturn or lever inside. Keyed alike and keyed different are both selectable when ordering, and there is a keying-to-code field if you want it cut to an existing code.
5) Do I have to specify handing when ordering Emtek 1411 multi point trim?
Yes, handing is a required selection: right hand or left hand. Multi point trim is handed because the lever and the cylinder position have to sit correctly relative to the hinge side. Stand outside the door looking in; if the hinges are on your right, it is right hand. Getting this wrong means the lever points the wrong way on the plate.
6) What lever styles can I get with Emtek sandcast bronze multi point trim?
Lever choice is required and there are ten in the sandcast bronze range: Aurora, Bryce, Cimarron, Cody, Durango, Lariat, Mariposa, Montrose, Teton, and Yuma. Any sandcast bronze lever can be ordered on this trim, so you can match levers already used on interior doors in the same house.
7) My patio door lever sags. Does the Emtek multi point trim fix that?
Emtek multi point lock trim now ships with a spring assist that returns the lever to neutral and stops the handle drooping. If your current sagging lever is the complaint and the gearbox in the door still throws its points properly, replacing the trim alone addresses it.
8) Does Emtek 1411 trim work on any door thickness?
Door thickness is a field you fill in when ordering, because the cylinder tailpiece and through-fixings have to suit the leaf. Measure the actual door at the lock edge and give that figure rather than assuming a standard, since patio door leaves vary by manufacturer.
9) What finishes does the Emtek 1411 sandcast bronze trim come in?
Three: Flat Black Bronze (FB), Medium Bronze (MB), and Tumbled White Bronze (TWB). All three are available in either the Schlage or the Weiser WR5 keyway. These are sandcast bronze, a living finish, so they will shift with handling and weather rather than staying uniform like a plated finish.
10) Is Emtek 1411 multi point trim suitable for a commercial building entrance?
It is residential hardware for swinging patio doors, in sandcast bronze with a mechanical single cylinder function and no electronic option. For a commercial opening that has to meet a grade or a fire rating on the drawing, this is not the part to spec.
