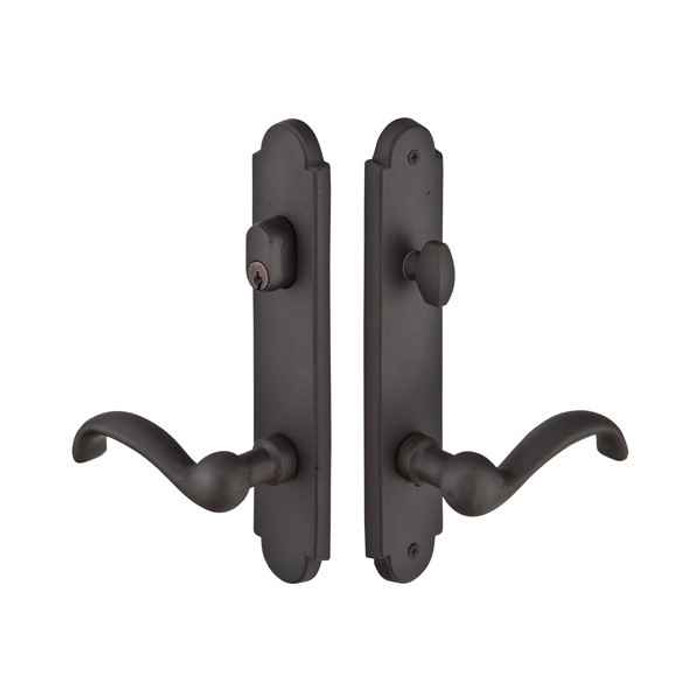

Emtek Emtek 1421 Multi Point Lock Trim (Door Config #4) - Sandcast Bronze Plates, Arched Style (2" x 10"), Keyed with American Cylinder Hub ABOVE Handle EMTEK-1421

Emtek 1421 Multi Point Lock Trim (Door Config #4) - Sandcast Bronze Plates, Arched Style (2" x 10"), Keyed with American Cylinder Hub ABOVE Handle

(No reviews yet) Write a Review

Model: 1421-FB
From the Sandcast Bronze Collection
$424.00
$339.20
Selected Finish is
Selected Lever Style is
Selected Handing is
Selected FREE KEYING Options is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$424.00
$339.20
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like



Specifications:

  • Door Configuration: Configuration #4
  • Plate Size: 2" x 10"
  • Material: Sandcast Bronze
  • Plate Style: Arched
  • Keyed: Yes
  • Function: Keyed Entry
  • Cylinder Type: American Cylinder
  • Cylinder Position: Above Handle
  • Product Type: Multi Point Lock Trim



Emtek 1421 Multi Point Lock Trim (Door Config #4) - Sandcast Bronze Plates, Arched Style (2" x 10"), Keyed with American Cylinder Hub ABOVE Handle

  • Can be ordered with any Sandcast Bronze Levers
  • Swinging Patio Door Hardware. Set includes Plates, Handles, and Cylinder
  • Multi Point Mortise Lock Box not included. Trims Only
  • Each Multi Point Lock Trim now includes the Spring Assist function which returns the lever to the neutral position and eliminates sagging handles.
Manufacturer Resources

Product Specs

Subcategory:
Multi Point Lock Trim
Product Group:
Mechanical Locks
Commercial/Residential:
Residential
Product Type:
Multi Point Lock Trim
Product Subgroup:
Multi Point Lock Trim
Collection:
Sandcast Bronze
Cylinder Position:
Above Handle
Door Configuration:
#4
Electronic:
No
Keyed:
Yes
Keyed Function:
Single Cylinder
Lock Function:
Single Cylinder
Lock Type:
Multi Point Trim
Ref. Door Manufacturer(s):
Ashland, G-U, Caradco, JELD-WEN, Jeldwen Custom Collection (formerly Pozzi), Marvin, PGT, Premium Collection (formerly Norco), Weathershield
Series:
Arched
Theme:
Rustic Living
MAP Policy:
Yes
Product Model:
1421
(CTC) Center-to-Center:
3-5/8"
Product Function:
Keyed with American Cylinder
Product Size:
2" x 10"
Cylinder Classification:
American
Product Style:
Arched
Product Material:
Bronze
Product Category:
Mechanical Locks
Product Substrate:
Bronze
Department:
Door Hardware

Emtek 1421-FB – Frequently Asked Questions

1) Will the Emtek 1421 multipoint trim fit my patio door, or do I need to know the door configuration first?
Configuration matters before anything else. The 1421 is built for Door Configuration #4, and the trim plates are drilled on a 3-5/8 inch center-to-center spacing between the handle hub and the cylinder, with the cylinder sitting above the handle. If your multipoint lock body has a different hub-to-cylinder spacing or puts the cylinder below the handle, this trim won't line up with the prep in the door.
2) Does the Emtek 1421 include the multipoint lock body, or is it trim only?
Trim only. The 1421 set is plates, handles, and the cylinder. The multipoint mortise lock box is not part of it, so the existing lock body in the door has to stay, or you order one separately. This is the usual way people re-dress a swinging patio door: keep the working multipoint mechanism, replace the hardware you see and touch.
3) Which patio door brands does the Emtek 1421 multipoint trim work with?
Emtek references this multipoint trim against Ashland, G-U, Caradco, JELD-WEN, JELD-WEN Custom Collection (formerly Pozzi), Marvin, PGT, Premium Collection (formerly Norco), and Weathershield doors. That reference list plus the Configuration #4 prep and the 3-5/8 inch center-to-center is what determines whether it drops onto your door.
4) Can I key the Emtek 1421 patio door trim to my existing Schlage or Kwikset house keys?
The cylinder is an American mortise-style cylinder and comes in two keyways: Schlage, which is the standard here, and Weiser WR5. Weiser WR5 is the keyway Kwikset-style keys run on, so pick that side to match a Kwikset-keyed house. It is single cylinder, key outside and a thumbturn-style interior operation. You can also order keyed alike across doors or keyed to an existing code at no charge.
5) Do I have to specify handing when ordering Emtek multipoint lock trim?
Yes, and it isn't optional. Handing is a required selection, right hand or left hand, because the lever and the plate are built for one swing. Stand outside the door: if the hinges are on your right, it's right hand. Get it wrong and the lever points the wrong way against the door.
6) What do I have to pick besides finish on the Emtek 1421 trim set?
Four choices go on the order beyond finish. Lever style, from ten Sandcast Bronze levers: Aurora, Bryce, Cimarron, Cody, Durango, Lariat, Mariposa, Montrose, Teton, and Yuma. Handing, right or left. Keying, either keyed different or keyed alike, with an option to key to an existing code. And door thickness, which you supply so the cylinder tailpiece and spindle come sized to the door.
7) What finishes does the Emtek 1421 Sandcast Bronze trim come in?
Three: Flat Black Bronze (FB), Medium Bronze (MB), and Tumbled White Bronze (TWB). All three are live sandcast bronze, so the plates carry the cast texture and colour variation of the metal rather than a plated look, and they pair with the Sandcast Bronze lever range for matching interior door hardware down the hall.
8) How big are the Emtek 1421 arched plates, and will they cover the old hardware's marks?
The arched plates measure 2 x 10 inches. That is a narrow, tall escutcheon, so it covers the vertical run of a typical multipoint prep but only 2 inches of width. If the door you are stripping had a wider plate, the paint or stain shadow outside that 2 inch width will show.
9) Is Emtek multipoint trim rated for a commercial entrance or is it residential only?
Residential. Emtek classifies the 1421 as residential hardware for swinging patio doors, so it belongs on a home, a condo unit, or a light-duty amenity door, not on a high-traffic commercial entrance where a graded commercial lockset is the right call.
10) My multipoint lever sags. Does replacing the trim fix that?
It does. Emtek multipoint trim now ships with a spring assist built into the trim, which returns the lever to the neutral horizontal position and stops the droop you get once the old lever's return spring gives out. Since the sag lives in the trim and not in the lock body, swapping the trim alone solves it.
11) Is the Emtek 1421 an electronic or keypad patio door lock?
No. The 1421 is mechanical trim, key operated with an American cylinder above the handle. There is no keypad, no motor, and nothing to wire or power at the door.
12) Can I match Emtek 1421 patio trim to the levers on the rest of my interior doors?
Yes, within the Sandcast Bronze collection. The 1421 trim can be ordered with any Sandcast Bronze lever, so the patio door lever matches the passage and privacy sets elsewhere in the house, in the same finish family. For a whole-house replacement that is the practical way to keep every opening reading the same.
