Emtek 1721 Multi Point Lock Tr...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$424.00
$339.20

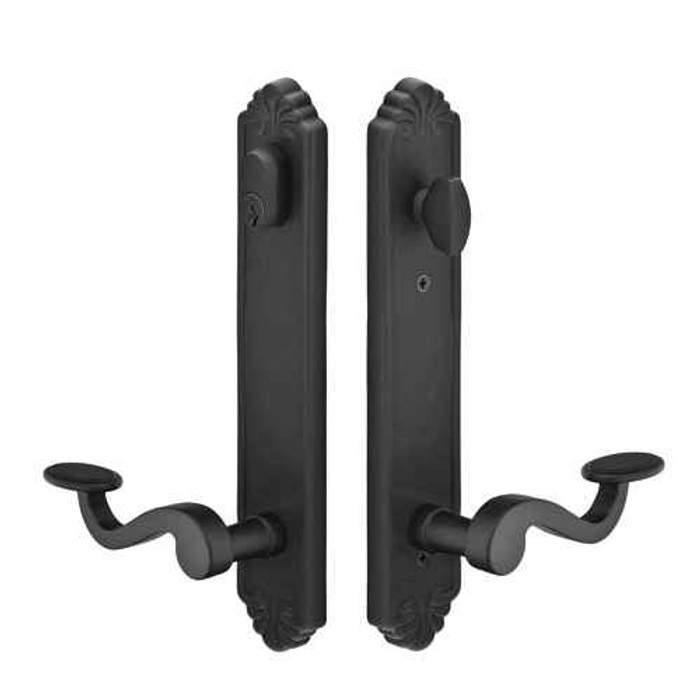

Emtek Emtek 1721 Multi Point Lock Trim (Door Config #7) - Sandcast Bronze Plates, Arched Style (2" x 10"), Keyed with American Cylinder Hub ABOVE Handle EMTEK-1721

Emtek 1721 Multi Point Lock Trim (Door Config #7) - Sandcast Bronze Plates, Arched Style (2" x 10"), Keyed with American Cylinder Hub ABOVE Handle

(No reviews yet) Write a Review

Model: 1721-FB
From the Sandcast Bronze Collection
$424.00
$339.20
Selected Finish is
Selected Lever Style is
Selected Handing is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$424.00
$339.20
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like



Specifications:

  • Door Configuration: Configuration #7
  • Plate Size: 2" x 10"
  • Material: Sandcast Bronze
  • Plate Style: Arched
  • Keyed: Yes
  • Function: Keyed Entry
  • Cylinder Type: American Cylinder
  • Cylinder Position: Above Handle
  • Product Type: Multi Point Lock Trim



Emtek 1721 Multi Point Lock Trim (Door Config #7) - Sandcast Bronze Plates, Arched Style (2" x 10"), Keyed with American Cylinder Hub ABOVE Handle

  • Can be ordered with any Sandcast Bronze Levers
  • Swinging Patio Door Hardware. Set includes Plates, Handles, and Cylinder
  • Multi Point Mortise Lock Box not included. Trims Only
  • Each Multi Point Lock Trim now includes the Spring Assist function which returns the lever to the neutral position and eliminates sagging handles.
Manufacturer Resources

Product Specs

Subcategory:
Multi Point Lock Trim
Product Group:
Mechanical Locks
Commercial/Residential:
Residential
Product Type:
Multi Point Lock Trim
Product Subgroup:
Multi Point Lock Trim
Collection:
Sandcast Bronze
Cylinder Position:
Above Handle
Door Configuration:
#7
Electronic:
No
Keyed:
Yes
Keyed Function:
Single Cylinder
Lock Function:
Single Cylinder
Lock Type:
Multi Point Trim
Ref. Door Manufacturer(s):
Trillenium (formerly W&F Manufacturing)
Series:
Arched
Theme:
Rustic Living
MAP Policy:
Yes
Product Model:
1721
(CTC) Center-to-Center:
6"
Product Function:
Keyed with American Cylinder
Product Size:
2" x 10"
Cylinder Classification:
American
Product Style:
Arched
Product Material:
Bronze
Product Category:
Mechanical Locks
Product Substrate:
Bronze
Department:
Door Hardware

Emtek 1721-FB – Frequently Asked Questions

1) Does the Emtek 1721 multi point trim include the multi point lock itself?
No. The 1721 is trim only: plates, handles, and the cylinder. The multi point mortise lock box is a separate purchase, so if you are replacing the whole mechanism you need the lock body as well. Order the levers with it too, since the lever style is a required selection and any Sandcast Bronze lever can be paired with the set.
2) What is the hole spacing on the Emtek 1721 arched trim plate?
The plates are drilled 6 inches center-to-center between the cylinder and the handle hub, with the cylinder sitting above the handle. Plate size is 2 by 10 inches. That 6 inch CTC and the cylinder-above orientation are what tie the trim to Emtek door configuration #7, so measure your existing door prep before ordering: a door bored for a below-handle cylinder or a different spacing will not line up.
3) What door does Emtek configuration #7 multi point trim go on?
Configuration #7 trim is referenced to Trillenium doors (formerly W and F Manufacturing). It is swinging patio door hardware, so it goes on an inswing or outswing patio door already fitted with a multi point mortise lock, not on a standard bored-cylindrical opening.
4) Do I have to specify handing when ordering Emtek 1721 multi point trim?
Handing is required. You pick right hand or left hand at order time, and the trim is built that way, so it is not field-reversible by flipping the plate. Determine handing from the outside of the door: the side the hinges are on when the door swings away from you sets the hand. Lever style is also a required choice, from ten Sandcast Bronze levers: Aurora, Bryce, Cimarron, Cody, Durango, Lariat, Mariposa, Montrose, Teton and Yuma.
5) Can I key Emtek 1721 patio door trim to match the Schlage keys on the rest of my house?
Yes. The cylinder is an American-format cylinder and you choose the keyway at order: Schlage (the standard option) or Weiser WR5. Pick the one that matches the locks already on the property and a locksmith can key it into the existing system. It is a single cylinder function, so key outside, thumbturn or lever release inside.
6) What finishes does the Emtek sandcast bronze arched multi point trim come in?
Three sandcast bronze finishes: Flat Black Bronze (FB), Medium Bronze (MB) and Tumbled White Bronze (TWB). All three are available in either the Schlage or Weiser WR5 keyway. These are cast bronze living finishes from the Sandcast Bronze collection, so they will match other Emtek sandcast bronze hardware on the same elevation rather than a plated brass finish.
7) Will Emtek 1721 trim work on a commercial entrance?
It is residential hardware. The 1721 is sandcast bronze trim for swinging patio doors and is classified residential, so for a commercial entry under a spec calling for a graded lockset it is the wrong part. For a house, a lake cabin, or a multi-family unit entry with a multi point patio door, it fits.
8) Do I need to give my door thickness when ordering Emtek multi point lock trim?
Door thickness is an optional entry on the order, and it is worth filling in. Patio door stiles vary and the spindle and cylinder tailpiece have to reach through the multi point lock body, so giving the actual thickness of your door removes the guesswork on a 2 by 10 inch trim set that is otherwise built to your handing and lever choice.
9) Do the levers on Emtek multi point trim sag over time?
The 1721 trim includes a spring assist in the handle hub that returns the lever to neutral, which is what stops the droopy-lever problem common on long patio door levers. Nothing extra to order for it; it is built into the trim.
