Emtek 1255 Multi Point Lock Tr...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$424.00
$339.20

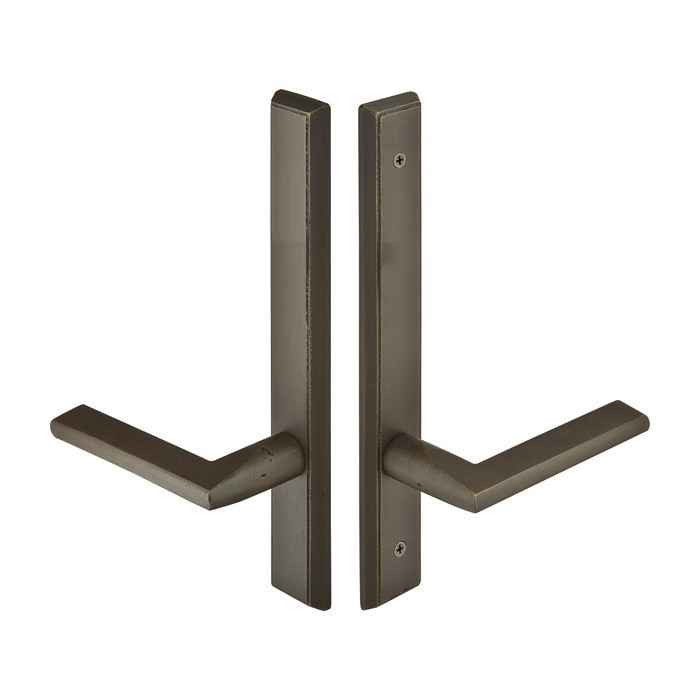

Emtek Emtek 1255 Multi Point Lock Trim (Door Config #2) - Sandcast Bronze Plates, Rectangular Style (1.5" x 11"), Dummy Pair EMTEK-1255

Emtek 1255 Multi Point Lock Trim (Door Config #2) - Sandcast Bronze Plates, Rectangular Style (1.5" x 11"), Dummy Pair

(No reviews yet) Write a Review

Model: 1255-FB
From the Sandcast Bronze Collection
$424.00
$339.20
Selected Finish is
Selected Lever Style is
Selected Handing is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$424.00
$339.20
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like



Specifications:

  • Door Thickness: 1-3/8" to 1-3/4"
  • Mount: Surface Mount (no door prep required)
  • Material: Brass



Emtek 1255 Multi Point Lock Trim (Door Config #2) - Sandcast Bronze Plates, Rectangular Style (1.5" x 11"), Dummy Pair

  • Can be ordered with any Sandcast Bronze Levers
  • Swinging Patio Door Hardware. Set includes Plates, Handles
  • Multi Point Mortise Lock Box not included. Trims Only
Manufacturer Resources

Product Specs

Subcategory:
Multi Point Lock Trim
Product Group:
Mechanical Locks
Commercial/Residential:
Residential
Product Type:
Multi Point Lock Trim
Product Subgroup:
Multi Point Lock Trim
Collection:
Sandcast Bronze
Cylinder Position:
Above Handle
Door Configuration:
#2
Electronic:
No
Keyed:
No
Lock Type:
Multi Point Trim
Ref. Door Manufacturer(s):
BiltBest, G-U, Hurd (Energy Saver), Andersen
Series:
Rectangular
Theme:
Rustic Living
MAP Policy:
Yes
Product Model:
1255
(CTC) Center-to-Center:
3-5/8"
Product Function:
Dummy
Product Size:
1-1/2" x 11"
Cylinder Classification:
American
Product Shape:
Rectangular
Product Style:
Rectangular
Product Material:
Bronze
Product Category:
Mechanical Locks
Product Substrate:
Bronze
Department:
Door Hardware

Emtek 1255-FB – Frequently Asked Questions

1) Does the Emtek 1255 multi point trim include the multi point lock itself?
No. The 1255 is trim only: plates and handles for a swinging patio door. The multi point mortise lock box is a separate purchase, so if you are replacing worn hardware and keeping the working lock body in the door, this is the right part. If the lock mechanism itself has failed, you need the lock box too.
2) What does the Dummy function mean on the Emtek 1255 patio door trim?
Dummy pair means both sides are fixed pulls. Nothing turns, nothing latches, and there is no key cylinder in the set. It's for the inactive leaf of a French or patio door pair, or a panel that is held by the multi point mechanism and does not need an operating handle. If the door needs to latch and unlock from outside, this is not the trim to order.
3) Will Emtek 1255 trim line up with my existing multi point lock holes?
The 1255 is a Door Configuration #2 layout with 3-5/8 inch center-to-center spacing between the handle and the cylinder opening, and the cylinder position sits above the handle. Measure your existing plate hole spacing on the door: if it isn't 3-5/8 inch with the cylinder up top, you're on a different Emtek door configuration and need the matching trim number instead.
4) Which patio door brands does the Emtek 1255 Config #2 trim reference?
Emtek references Door Configuration #2 against BiltBest, G-U, Hurd (Energy Saver), and Andersen multi point doors. If your patio door came from one of those, check that the hole spacing measures 3-5/8 inch center-to-center before ordering, since a manufacturer can use more than one lock layout across its line.
5) Do I have to specify handing when ordering Emtek 1255 dummy trim?
Handing is required, right hand or left hand. Even as a dummy, the plate is cut for a specific swing because the cylinder opening sits above the handle and is not symmetrical. Stand outside the door: if the hinges are on your right, it's right hand.
6) What levers can I put on the Emtek 1255 sandcast bronze plates?
Any Emtek Sandcast Bronze lever, and the lever choice is a required selection on the order. The ten options are Aurora, Bryce, Cimarron, Cody, Durango, Lariat, Mariposa, Montrose, Teton, and Yuma. Pick the one already used on your entry doors and the patio opening matches the rest of the house.
7) Can I add a keyed cylinder to the Emtek 1255 dummy trim later?
No. The dummy pair has no working cylinder and no mechanism behind it, so there is nothing for a cylinder to operate. If you need the door to key from outside, order the keyed version of the Door Configuration #2 trim, which takes an American standard cylinder mounted above the handle, plus the matching multi point lock body.
8) What finishes does the Emtek 1255 sandcast bronze trim come in?
Three: Flat Black Bronze (FB), Medium Bronze (MB), and Tumbled White Bronze (TWB). These are sandcast bronze, a solid cast material that develops a living patina over time rather than staying uniform, so a new plate set next to hardware installed years ago will not match immediately.
9) Is the Emtek 1255 patio trim electronic or does it take a smart lock?
Purely mechanical trim, no electronics and no wiring. It's plates and handles over a mechanical multi point mortise lock. There is no keypad, motor, or access control option built into this set.
