Emtek 1355 Multi Point Lock Tr...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$424.00
$339.20

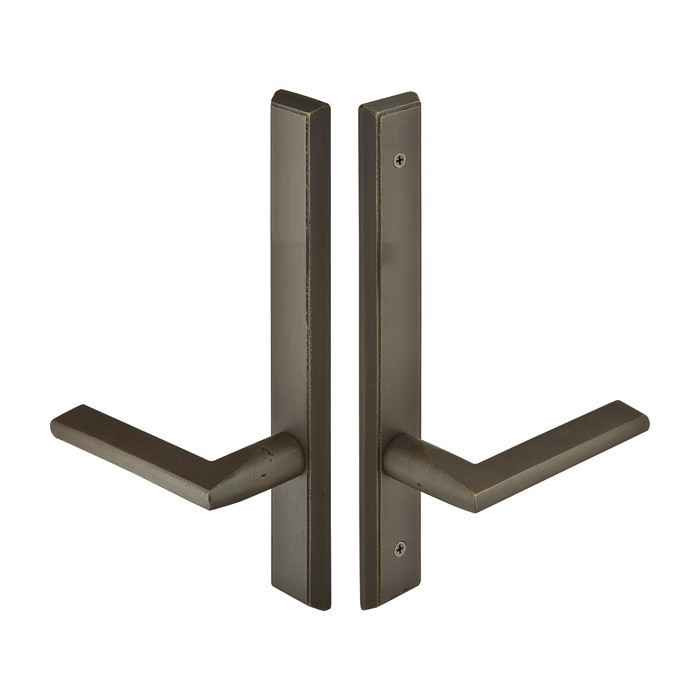

Emtek Emtek 1355 Multi Point Lock Trim (Door Config #3) - Sandcast Bronze Plates, Rectangular Style (1.5" x 11"), Dummy Pair EMTEK-1355

Emtek 1355 Multi Point Lock Trim (Door Config #3) - Sandcast Bronze Plates, Rectangular Style (1.5" x 11"), Dummy Pair

(No reviews yet) Write a Review

Model: 1355-FB
From the Sandcast Bronze Collection
$424.00
$339.20
Selected Finish is
Selected Lever Style is
Selected Handing is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$424.00
$339.20
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like



Specifications:

  • Door Thickness: 1-3/8" to 1-3/4"
  • Mount: Surface Mount (no door prep required)
  • Material: Brass



Emtek 1355 Multi Point Lock Trim (Door Config #3) - Sandcast Bronze Plates, Rectangular Style (1.5" x 11"), Dummy Pair

  • Can be ordered with any Sandcast Bronze Levers
  • Swinging Patio Door Hardware. Set includes Plates, Handles
  • Multi Point Mortise Lock Box not included. Trims Only
Manufacturer Resources

Product Specs

Subcategory:
Multi Point Lock Trim
Product Group:
Mechanical Locks
Commercial/Residential:
Residential
Product Type:
Multi Point Lock Trim
Product Subgroup:
Multi Point Lock Trim
Collection:
Sandcast Bronze
Cylinder Position:
Above Handle
Door Configuration:
#3
Electronic:
No
Keyed:
No
Lock Type:
Multi Point Trim
Ref. Door Manufacturer(s):
Andersen
Series:
Rectangular
Theme:
Rustic Living
MAP Policy:
Yes
Product Model:
1355
(CTC) Center-to-Center:
4-1/8"
Product Function:
Dummy
Product Size:
1-1/2" x 11"
Cylinder Classification:
American
Product Shape:
Rectangular
Product Style:
Rectangular
Product Material:
Bronze
Product Category:
Mechanical Locks
Product Substrate:
Bronze
Department:
Door Hardware

Emtek 1355-FB – Frequently Asked Questions

1) Does the Emtek 1355 multi point trim include the lock body, or do I need to order the mortise lock separately?
Trim only. The 1355 set gives you the plates and handles, and the multi point mortise lock box is a separate purchase. If you're replacing worn handles on a swinging patio door that already has a working multi point mortise lock in the stile, this is the right part. If the lock itself has failed, you need the lock box too.
2) What is the center-to-center spacing on the Emtek 1355 trim, and will it line up with my existing multi point lock?
Center-to-center is 4-1/8 inches, measured between the handle and the cylinder position, with the cylinder sitting above the handle. That spacing and the Door Configuration #3 layout are what have to match your existing multi point lock. Measure the two holes in your door stile before ordering: if yours isn't 4-1/8 inch CTC, a different Emtek door configuration is the one you want.
3) Is the Emtek 1355 dummy pair actually lockable, or is it inactive trim?
Dummy function, so no. There's no key cylinder and no latching action in the 1355 pair. It is the inactive leaf hardware for a swinging patio door pair, giving a matching handle to pull on the side that doesn't operate the lock. If you need the operating side, you want a keyed or active multi point trim rather than the dummy.
4) Does Emtek 1355 trim work on Andersen patio doors?
Andersen is the referenced door manufacturer for this trim. The fit is decided by the Door Configuration #3 hole pattern and the 4-1/8 inch center-to-center spacing, so confirm your Andersen door's multi point lock uses that configuration.
5) What do I have to specify when ordering Emtek 1355 multi point trim?
Three things are required on the order: lever style, handing, and finish. Lever choices are Aurora, Bryce, Cimarron, Cody, Durango, Lariat, Mariposa, Montrose, Teton, and Yuma. Handing is right hand or left hand. Finishes are Flat Black Bronze, Medium Bronze, and Tumbled White Bronze. Door thickness is an optional note field on the order.
6) How big are the Emtek 1355 backplates, and will they cover the holes left by my old patio door handle?
Each plate measures 1-1/2 x 11 inches in the rectangular style. That's a long, narrow plate, so it will hide a fair amount of vertical scarring in the stile but very little side to side. On a narrow patio door stile the 1-1/2 inch width is the number to check against your stile before you commit.
7) Can I match Emtek 1355 dummy trim to the levers on the rest of my doors?
Yes, the 1355 plates take any of Emtek's Sandcast Bronze levers, so the same lever you specify on the passage and privacy sets inside the house can go on the patio door trim. The lever list here runs Aurora, Bryce, Cimarron, Cody, Durango, Lariat, Mariposa, Montrose, Teton, and Yuma.
8) Is Emtek 1355 multi point trim rated for a commercial building entrance?
It's residential hardware. Emtek classifies the 1355 sandcast bronze trim as residential, and it's built for swinging patio doors on homes. For a commercial entrance carrying public traffic, a Grade 1 commercial lockset is the category to shop instead.
9) Is the Emtek 1355 sandcast bronze trim solid bronze or plated?
Solid bronze, from Emtek's Sandcast Bronze collection, cast rather than plated over another substrate. Sandcast bronze has surface texture and slight casting variation from piece to piece, which is intentional in this line. The three finishes, Flat Black Bronze, Medium Bronze, and Tumbled White Bronze, are all bronze finishes rather than paint.
10) Is the Emtek 1355 an electronic or smart lock?
No electronics. The 1355 is mechanical trim with no motor, keypad, or battery, and no key cylinder either since it's the dummy function. All operation comes from whatever multi point mortise lock sits behind it.
11) If I later add a keyed multi point trim, what cylinder does the Emtek 1355 configuration take?
The Door Configuration #3 layout is set up for an American standard cylinder positioned above the handle. On the dummy pair there's no cylinder fitted, but that's the prep pattern the configuration follows, which matters if you're specifying the keyed active leaf to match on the same opening.
